Radeon™ RX 5600 XT WINDFORCE OC 6GGV-R56XTWF2OC-6GD
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
The GIGABYTE "Alternate Spinning" is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses 6+1 power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+1 power phases.)
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Light on: power cable disconnected
Light off: stable power supply
Blinking: abnormal power supply
Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
PCI-E 4.0 SUPPORT
Gigabyte Radeon RX 5600 XT features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.

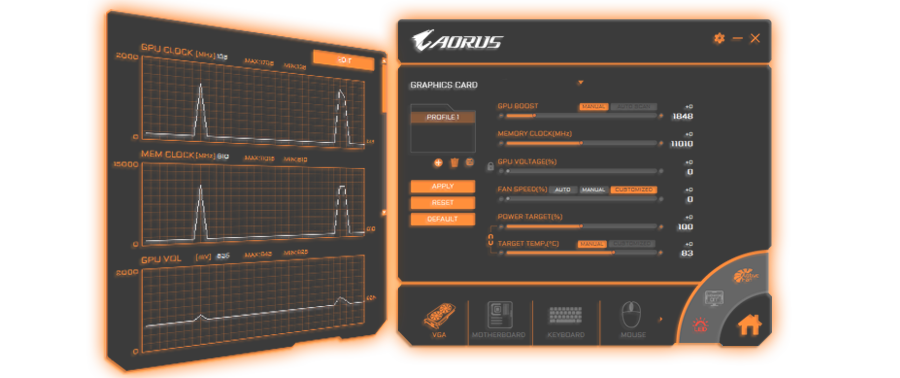

IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game's requirements.
Extreme Gaming DNA
The AMD Radeon™ RX 5600 XT graphics card is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the heart of AMD's advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI® Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.
Game Fidelity, Accelerated
The AMD Radeon™ RX 5600 XT graphics card powers high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. The RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening, and Integer Display Scaling6 for maximum performance and beautiful gaming experiences.
Radeon™ Image Sharpening
Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp and detailed looking visuals with virtually no performance impact.4 Now with DirectX® 9, 11, and 12 support.
Integer Display Scaling
Play classic games and relive the retro experience by scaling on-screen images from one pixel to four pixels (or more) to deliver a retro-like visual gaming experience.
AMD RADEON™ SOFTWARE ADRENALIN 2020 EDITION
The latest Radeon™ Software Adrenalin 2020 Edition introduces a completely redesigned user experience unleashing the full potential of your GPU, with day-0 drivers optimized for new game releases and a highly customizable gaming experience.
|Radeon™ FreeSync Technology
||Radeon™ Software Adrenalin 2020 Edition
|No stuttering. No tearing. Just gaming. Radeon™ FreeSync technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.
||A seamless way to replay gameplay.
||Radeon™ Graphics' sophisticated power management utility.
||Bringing cool and quiet frames on countless number of games.
