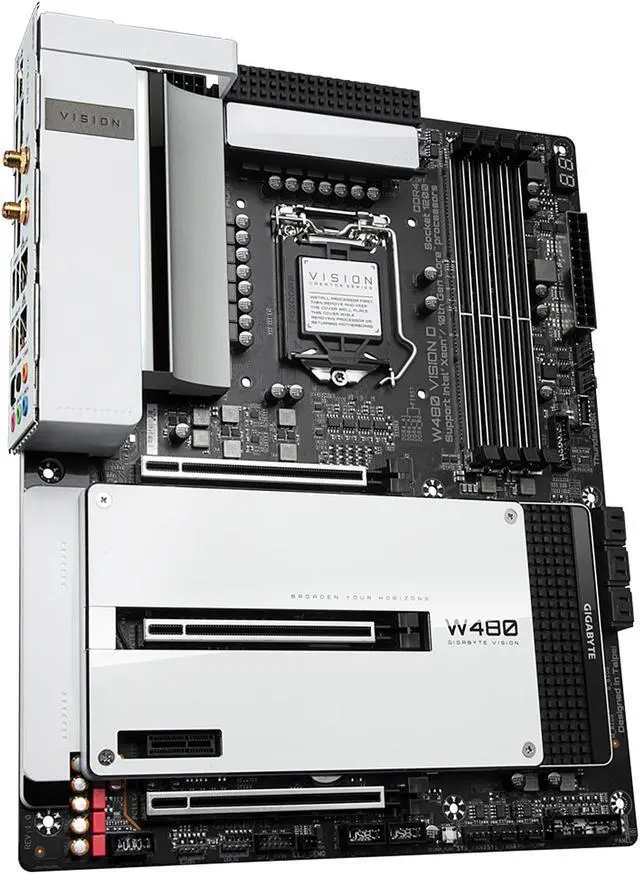

GIGABYTE W480 VISION D LGA 1200 Intel W480 ATX Intel Motherboard
- Intel W480
- Intel Xeon W series processors
- 10th Generation Intel Core processors / Intel Pentium processors/Intel Celeron processors
- Intel Xeon W-1290/W-1270 series processors / Intel Core i9/i7 processors:
- Support for DDR4 2933/ 2666/ 2400/ 2133 MHz
- Intel Xeon W-1250 series processors / Intel Core i5/i3/Pentium/Celeron processors:
- Support for DDR4 2666/ 2400/ 2133 MHz
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
+
+
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE W480 VISION D
| Brand | GIGABYTE |
|---|---|
| Model | W480 VISION D |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Intel Xeon W series processors 10th Generation Intel Core processors / Intel Pentium processors/Intel Celeron processors |
| Chipset | Intel W480 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512MB |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Intel Xeon W-1290/W-1270 series processors / Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz Intel Xeon W-1250 series processors / Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * To support ECC, you must install an Intel Xeon processor. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector. |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Intel 2.5GbE LAN chip |
|---|---|
| Second LAN Chipset | Intel GbE LAN chip |
| Max LAN Speed | 2.5Gbps + 1Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | BLUETOOTH 5 |

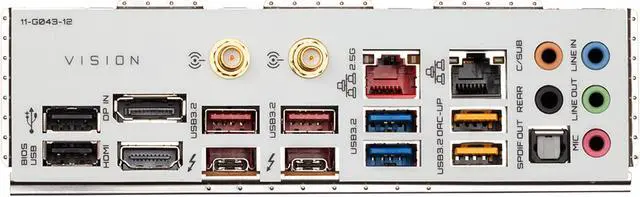

| Back I/O Ports | 1 x DisplayPort In port 2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support) 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |

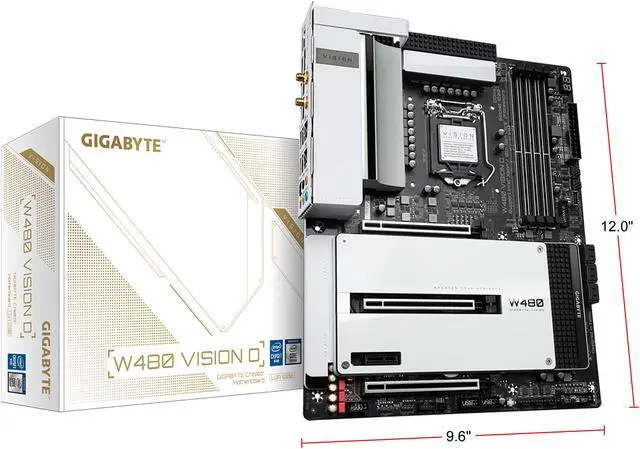

| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer USB DAC-UP 2 Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit |
|---|
| First Listed on Newegg | November 07, 2025 |
|---|
