The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

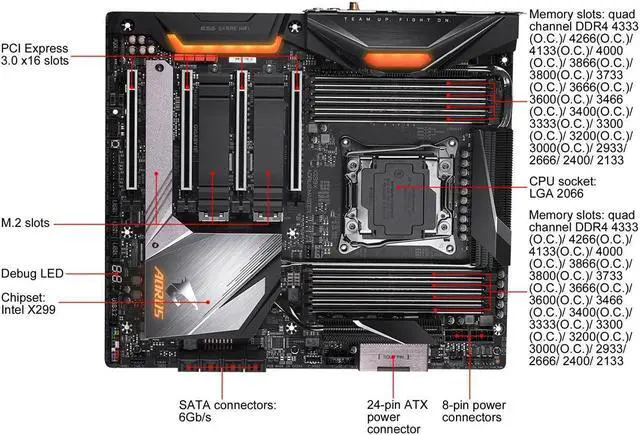

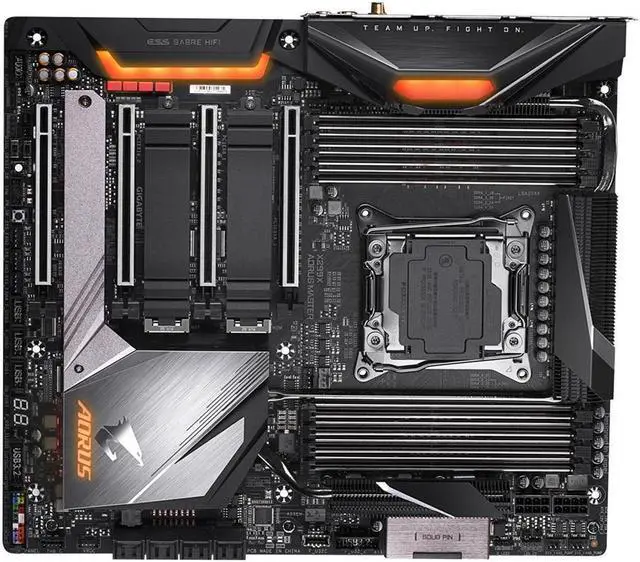

Learn more about the GIGABYTE X299X AORUS MASTER
Model
Brand
GIGABYTE
Model
X299X AORUS MASTER
Supported CPU
CPU Socket Type
LGA 2066
CPU Type
Support for Intel Core i7-7800X and above X series processors / Intel Core i9 X series processors in the LGA2066 package
Chipsets
Chipset
Intel X299
Memory
Number of Memory Slots
8x288pin (DDR4)
Memory Standard
Intel Core X series 48-lane processors: 8 x DDR4 DIMM sockets supporting up to 256GB (32GB single DIMM capacity) of system memory Support for DDR4 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core X series 44-lane/28-lane processors: 8 x DDR4 DIMM sockets supporting up to 128GB (16GB single DIMM capacity) of system memory Support for DDR4 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133 MHz memory modules
Maximum Memory Supported
256GB
Channel Supported
Quad Channel
Expansion Slots
PCI Express 3.0 x16
Intel Core X series 48-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.
Intel Core X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.
Intel Core X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Storage Devices
Serial ATA (SATA)
8 x SATA 6Gb/s
M.2
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) * The M2M and M2Q connectors become unavailable when an Intel Core X series 28-lane processor is used.
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)
Intel Optane Ready
Intel Optane Memory Ready * Only Intel Core X series 48-lane processors support Intel Optane Memory.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220-VB codec * The front panel line out jack supports DSD audio.
Audio Channels
4.2/4/5.1/7.1-channel Support for S/PDIF Out
Onboard LAN
LAN Chipset
Aquantia 5GbE LAN chip
Second LAN Chipset
Intel GbE LAN chip
Max LAN Speed
5Gbps + 1Gbps
Wireless LAN
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth
BLUETOOTH 5.0
Rear Panel Ports
Back I/O Ports

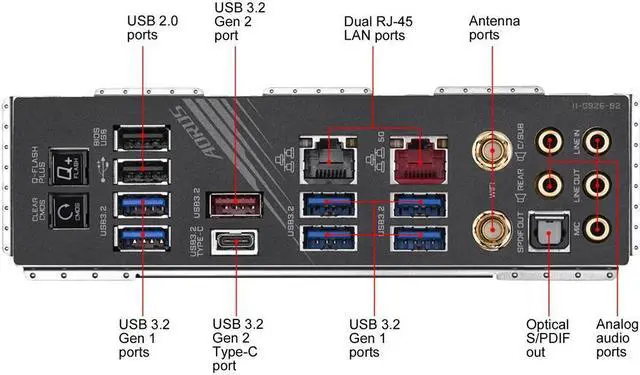

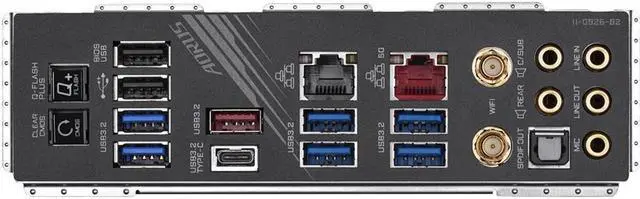

1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 6 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks
Internal I/O Connectors
Onboard USB
1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 3 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Intel VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches
Physical Spec
Form Factor
Extended ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 10.6"
Power Pin
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Features
Features
Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller: iTE I/O Controller Chip
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise Detection
BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
