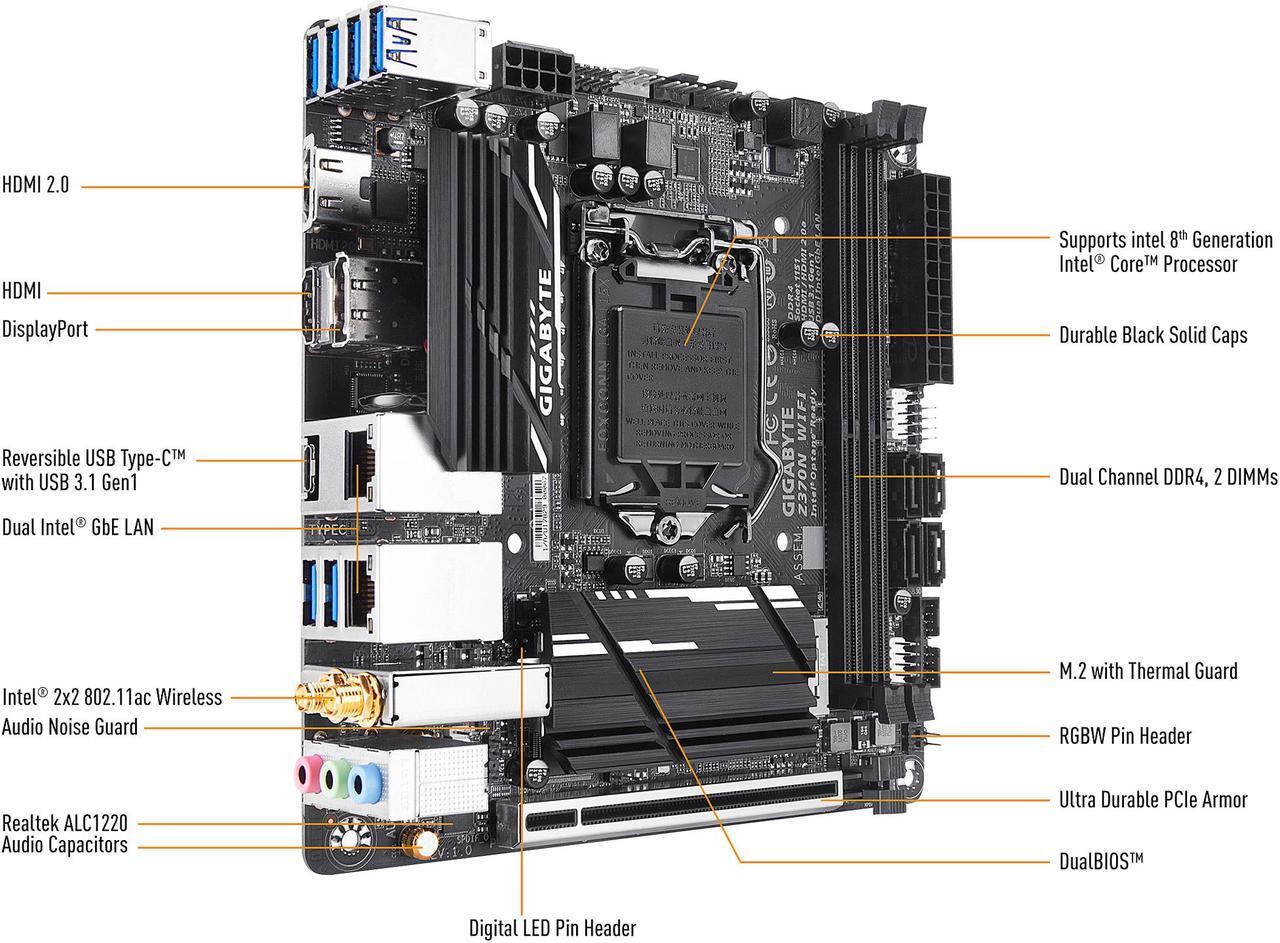

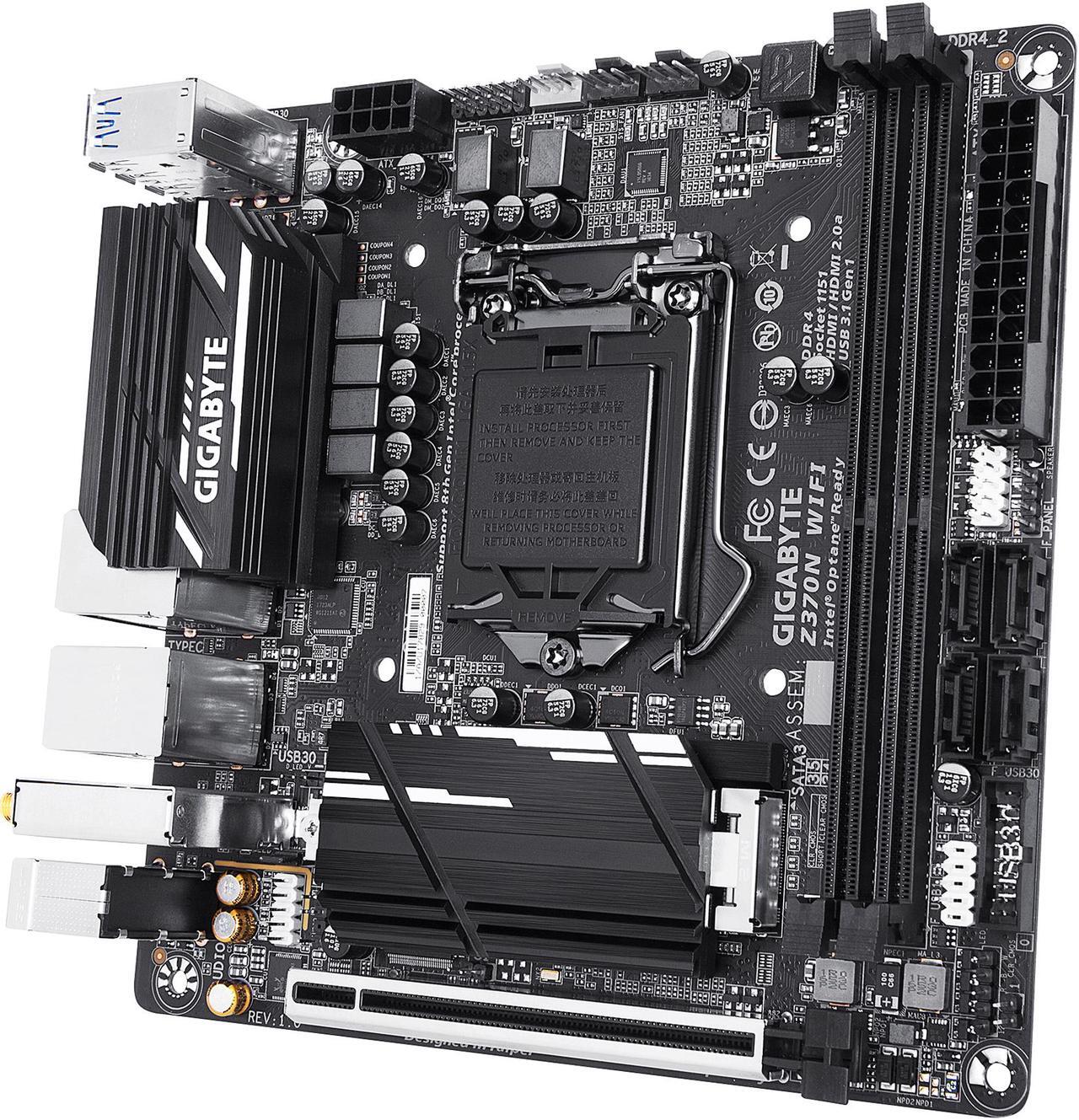

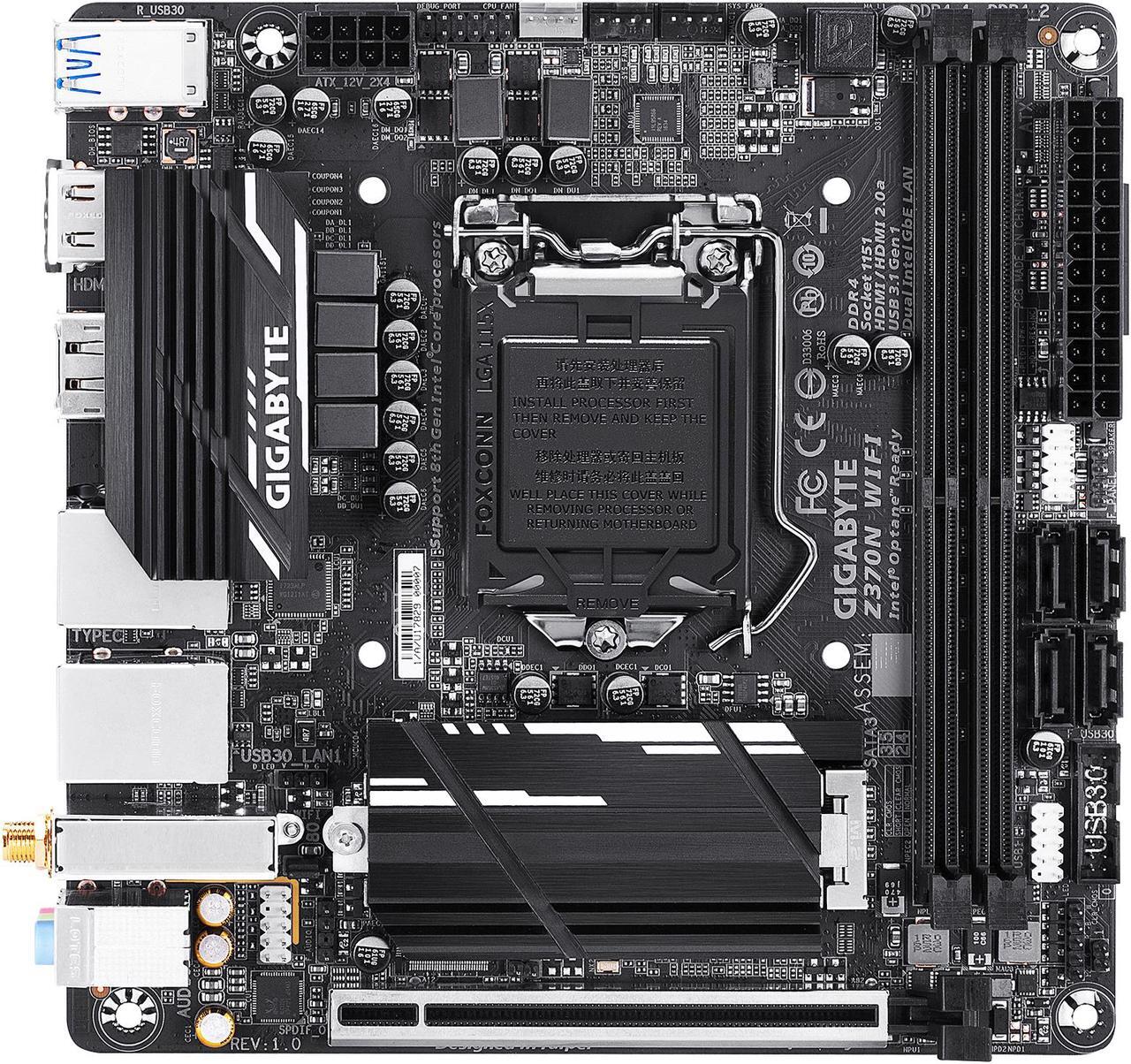

GIGABYTE Z370N WIFI (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 Mini ITX Intel Motherboard
- Intel Z370
- Support for 8th Generation Intel Core i7/i5/i3 processors in the LGA 1151 package
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 4400(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
+
+
Specs
Reviews (18)
Learn more about the GIGABYTE Z370N WIFI (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Model | Z370N WIFI (rev. 1.0) |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Support for 8th Generation Intel Core i7/i5/i3 processors in the LGA 1151 package * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z370 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor+MegaChips MCDP2800 chip: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. (Requires the latest Intel graphics driver from the GIGABYTE website.) Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 1GB |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|

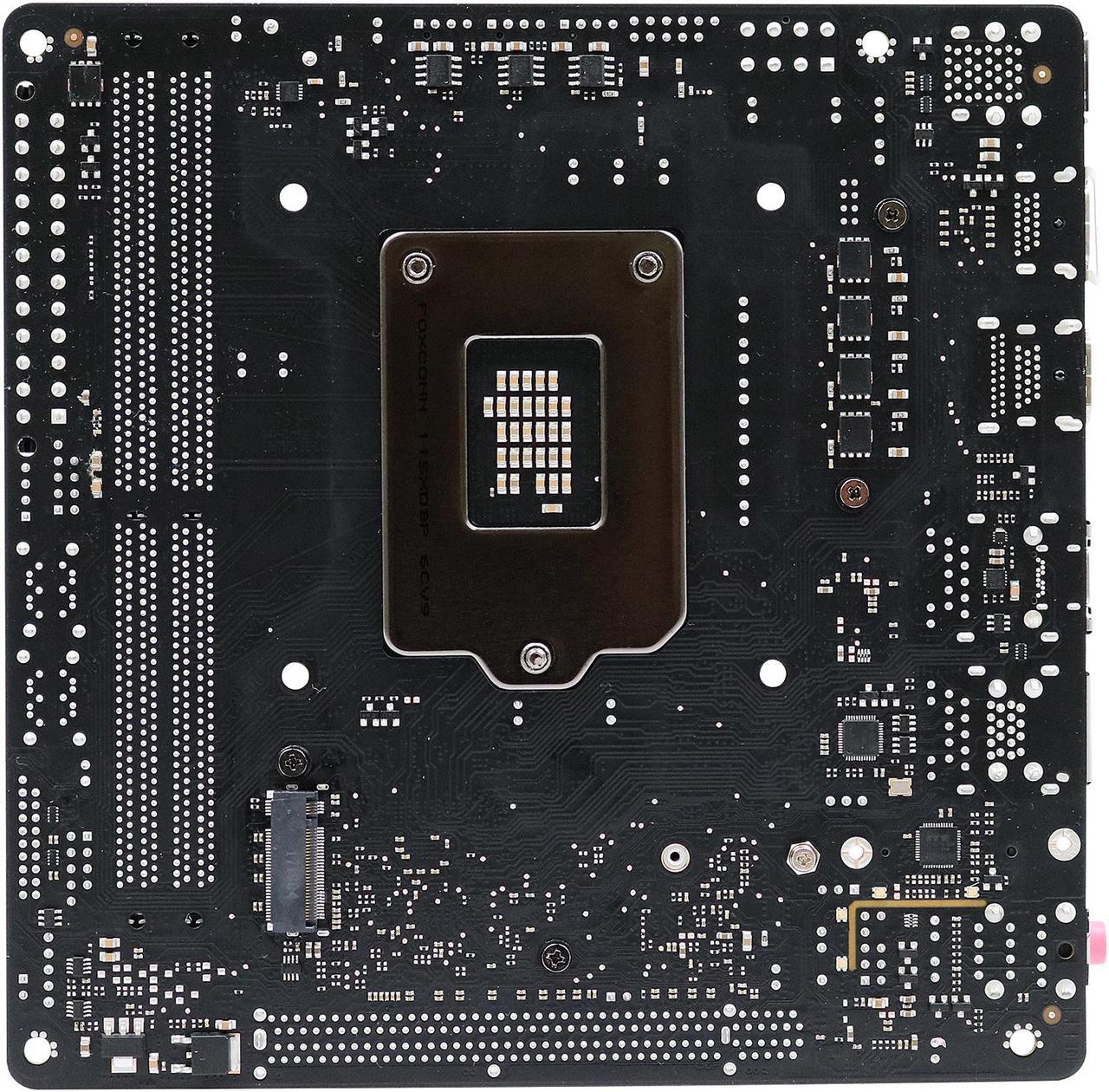

| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| LAN Chipset | 2 x Intel GbE LAN chips |
|---|---|
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Support for 11ac wireless standard and up to 867 Mbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR |

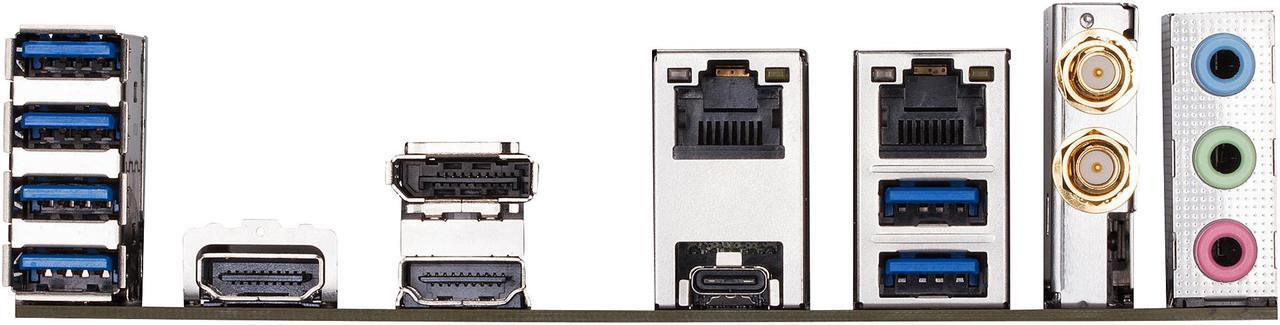

| HDMI | 2 x HDMI |
|---|---|
| RJ45 | 2 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 6 x USB 3.1 Gen 1 ports 1 x USB Type-C port, with USB 3.1 Gen 1 support |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Antenna Connectors | 2 x SMA antenna connectors (2T2R) |
| Onboard USB | 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header |
|---|---|
| Other Connectors | 1 x CPU fan header 2 x system fan headers 1 x digital LED strip header 1 x digital LED strip power select jumper 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | June 19, 2025 |
|---|
