Features
- It is designed for enthusiasts with need for controlling numerous system fans Capable of expanding one motherboard PWM fan header to support up to five fans.
- Support PWM function, Speed control, satisfy your control needs.
- Compatible with 2-pin / 3-pin / 4-pin Fans

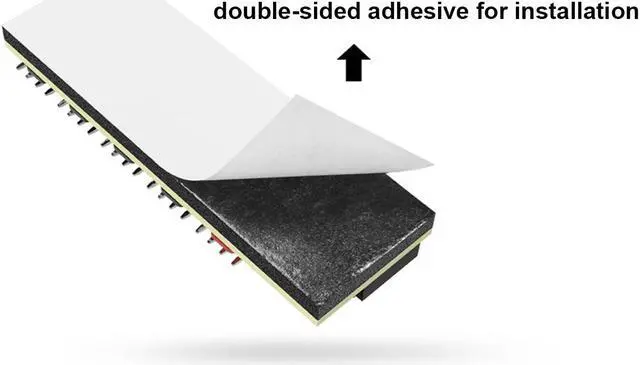

- Support Cable Management Comes with Self-Stick for easy installation and options to hide the PCB itself.

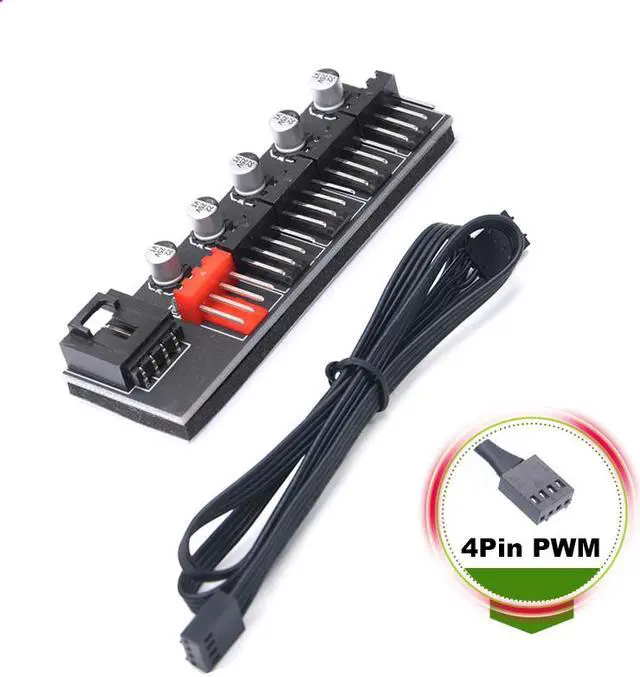

- Include a 1.3 feet PWM 4pin fan power extension cable w/ latch locking
[Special Note:]
- This product is a hub, not a speed controller
- 2-pin / 3-pin fan can be plugged in to use, but can not achieve PWM control speed

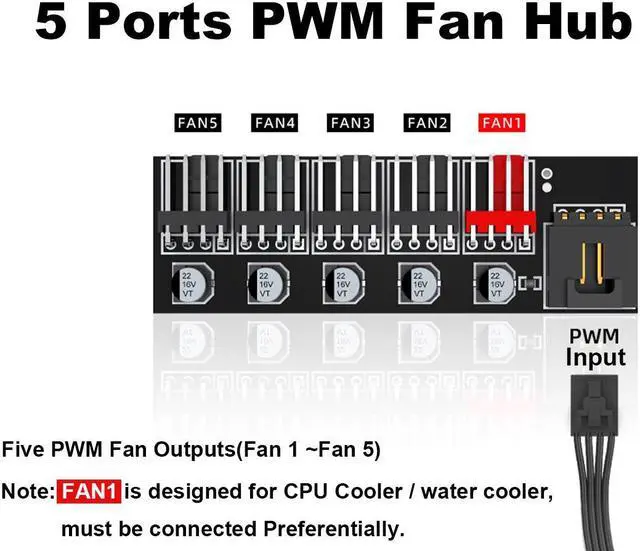

- Please make sure the RED color connector is a priority number one connecting. Since only one RPM signal can be read by motherboard, only ' CPU Fan' channel of the PWM splitter carries an RPM signal.

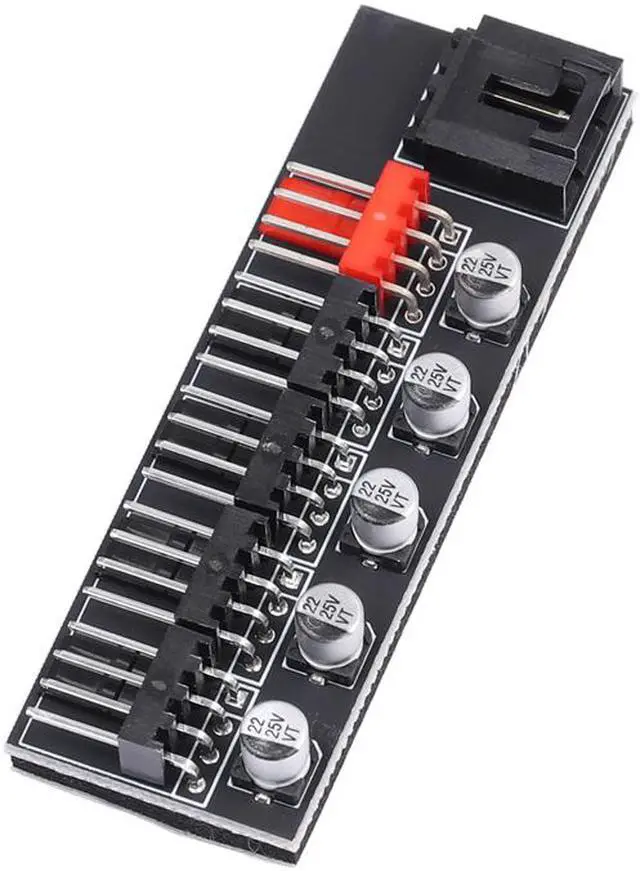

- PWM 4 Pin Fan Hub

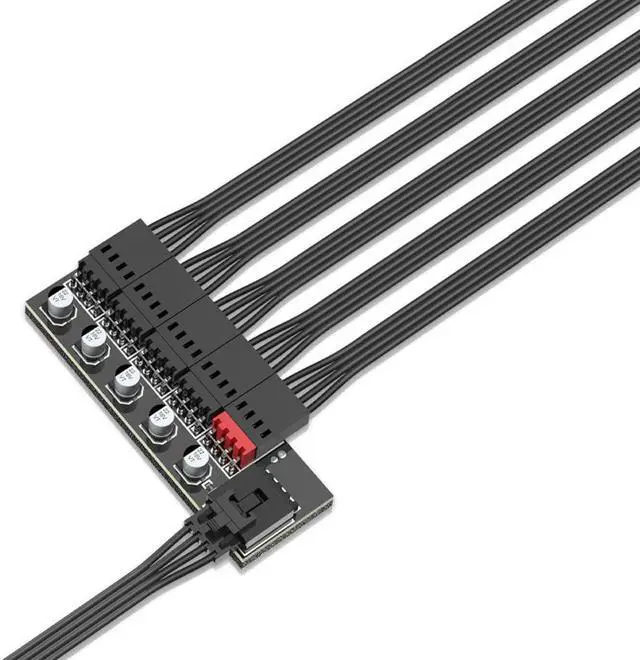

- Support 5 fans connected and running in same speed
- Supports PWM fan speed controlling by ASUS Fan Xpert,ASROCK A-Tuning etc.
- Compatible with 2-pin / 3-pin fans.(run in full speed)
- Red color Connector is design for CPU Fan

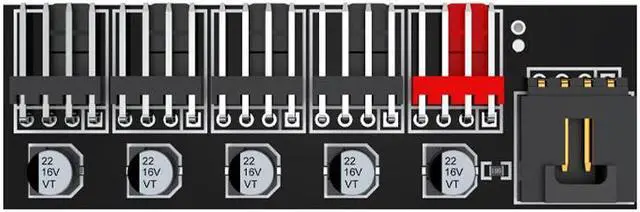

- Adding 5 solid capacitors on the board
- Provide special protective for using
- Power by Motherboard CPU_Fan / SYS_Fan header
Specification
| Type | 5 Ports PWM Fan Hub |
|---|---|
| Input | Motherboard 4Pin Fan Header |
| Output | 5 Ports 4Pin Fan Header |
| Cable Length | 1.3 Feet |
| Application | Compatible with 2PIN /3 PIN / 4PIN fans |
