This is ARGB PWM 2-in-1 8 way hub with SATA 15pin power that can supply power to fans and ARGB devices at the same time.
Extend the motherboard interface of the chassis to solve the problem of insufficient motherboard interfaces.
Power by PSU, reduce motherboard overload and heat, widely used in PC computer water cooling systems and multiple RGB lighting controls.
Up to 8 sets of Addressable RGB (5V 3pin) plugs and 8 sets PWM (12V 4pin) plugs to meet your needs of connecting more devices.
Supports simultaneous startup of 8 way fans, ARGB is all synced between all fans, one setting applies to all fans (speed and color).
The ARGB of this controller is 5V 3-pin
The PWM Splitter supports PWM function and automatic fan speed adjustment. (3pin fans works too, run in full speed)
Built-in PMMA case offers solid protection while the included sticky pad makes installation quick and easy.

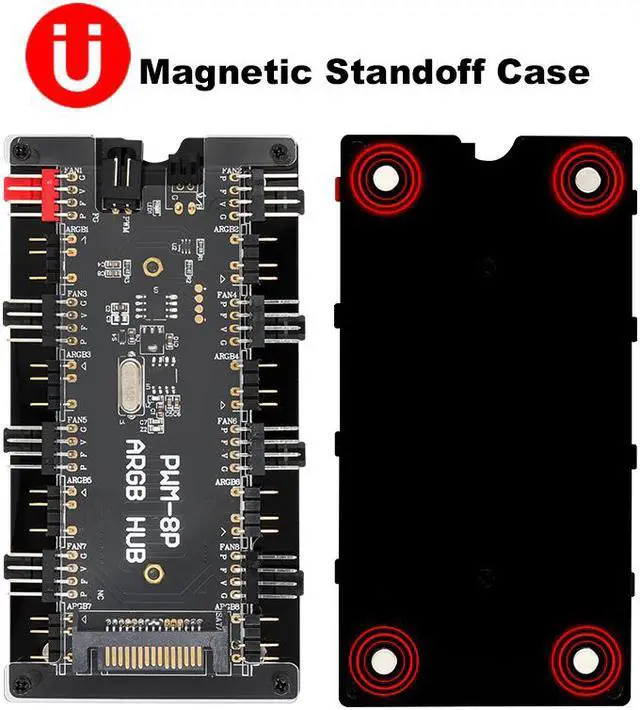

Magnetic standoff design for easily fixing the hub in the steel chassis
Mode 1 - ARGB effects controlled by motherboard programming such as GIGABYTE RGB FUSION,ASUS Aura Sync,MSI Mystic Light, etc.
- Request motherboard equipped standard ARGB 3pin or GIGABYTE VDG header
- Make sure motherboard ARGB header connect to the controller by ARGB cable in the package
- Make sure SATA power is connected

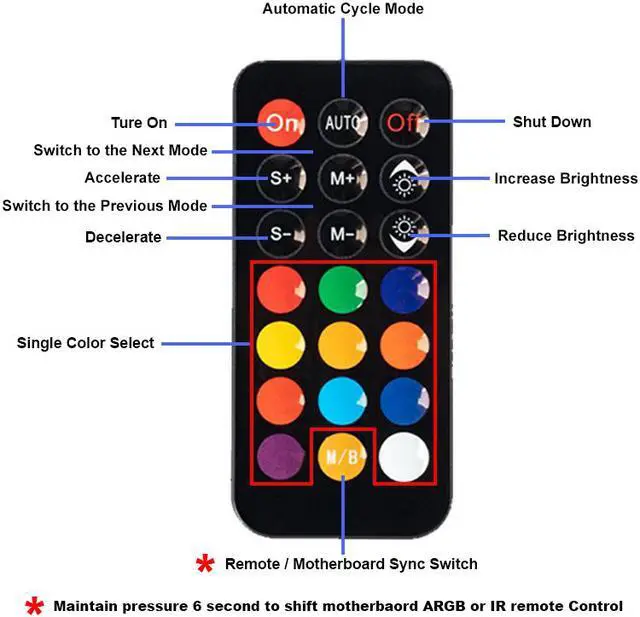

Mode 2 - ARGB effects controlled by IR wireless remote control, no motherboard connecting is needed
- Make sure SATA power of the controller is connected
- Remove insulation spacer of the remote control, thus you can control ARGB effects by it.
- Make sure remote using distance less than 6.6FT
This controller support up to 8 ports PWM 4Pin expansion
- Suitable for 12V 4PIN fan PWM speed regulation (3PIN fans can also be connected, but no PWM speed regulation function)

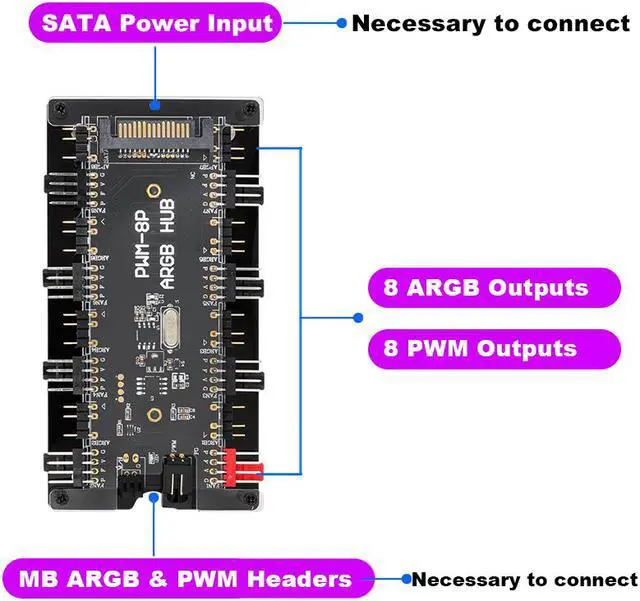

- Insert the hub to SATA interface of the computer power supply
- The PWM cable include in the package muse connect to motherboard PWM 4pin header
- The computer CPU fan must be connected to the Red 4PIN fan socket of the controller

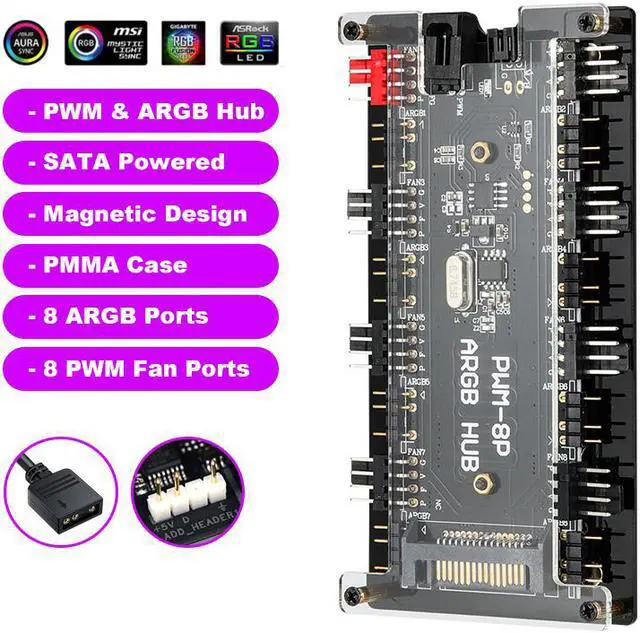

- 2-IN-1 ARGB Controller & PWM Hub
- Supports up to 8 ports ARGB devices lighting effects controlling by motherboard or remote control
- Supports up to 8 ports PWM devices running speed sync by motherboard
- Power by SATA from PSU
- Equipped PMMA case for more protection
- Protect device from dust,make sure high reliability, long life performance
- Magnetic standoff case design
- Fix the controller to iron case easy
Package Contents
- ARGB controller
- wireless remote control
- 23.6 inches ARGB extension cable
- 15.7 inches PWM extension cable
