DisplayPort to HDMI Over Cat6 Extender Kit 4K60Hz HDR 4:4:4 PoC
- Cat6 Extender Kit Ideal for Digital Signage in Schools and Workplaces
- Extends Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
- Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
- Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
- Create a Daisy Chain of Displays to Achieve Even More Distance
+
+
Specs
Reviews
Learn more about the Tripp Lite B127A-004-BHPH3
| Brand | Tripp Lite |
|---|---|
| Model | B127A-004-BHPH3 |
| Type | HDMI over Ethernet |
|---|---|
| Max Extend Distance | 230 feet |
| Color | Black |
| Specifications | Video Input: HDMI (FEMALE) Video Output: HDMI (FEMALE) Video Ports: HDMI (FEMALE); (4) RJ45 (FEMALE) Video Ports Details: HDMI 2.0; HDCP 2.2 Max Supported Video Resolution: 3840 x 2160 @ 60 Hz Audio Specification: True uncompressed 7.1 Channel digital audio and supports DTS-HD, Dolby-TrueHD digital audio |
| Connector A | Side A - Connector 1: (2) HDMI (FEMALE) Side A - Connector 2: (4) RJ45 (FEMALE) |
|---|---|
| Connector B | Side B - Connector 1: (3) RJ45 (FEMALE) Side B - Connector 2: (3) HDMI (MALE) |
| Features | Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0. Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy. Combines with optional B127A-010-H repeaters to extend signal to 400 ft. Power over Cable (PoC) technology provides power to receivers via Cat6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
|---|

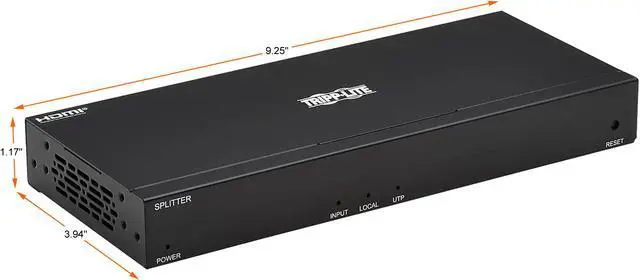

| Dimensions | Receiver Unit Dimensions: 0.73" x 1.85" x 2.95" Transmitter Unit Dimensions: 1.17" x 9.25" x 3.94" |
|---|---|
| Weight | Receiver Unit Weight: 1.43 lbs. Transmitter Unit Weight: 1.43 lbs. |

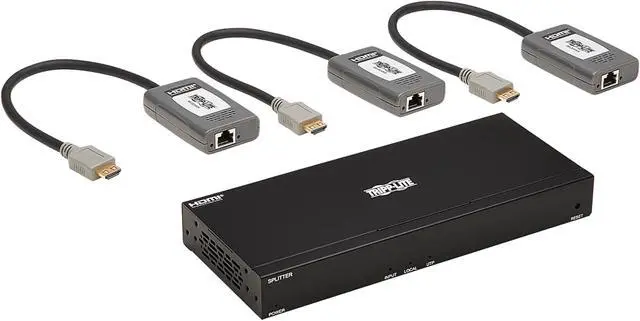

| Package Contents | B127A-004-BH 4-Port HDMI over Cat6 Splitter (3) B127A-1P0-PH 1-Port HDMI over Cat6 Receivers External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) (4) International plug adapters (North America, U.K., Europe, Australia) HDMI cable (M/M), 1 ft. (0.3 m) Mounting hardware Owner's manual |
|---|
| Date First Available | February 29, 2024 |
|---|
