DisplayPort to HDMI Over Cat6 Extender Kit Wall Plate 4K 60Hz PoC
- Extender kit with transmitter and receiver sends 4K DisplayPort signal via Cat6 cable to HDMI display up to 230 feet (70.1 m) away. Combines with optional B127A-010-H repeater to extend to 400 feet
- Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0. Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Power over Cable (PoC) technology provides power to receivers via Cat6 cable
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
+
+
Specs
Reviews
Learn more about the Tripp Lite B127A-1A1-FDFH
| Brand | Tripp Lite |
|---|---|
| Model | B127A-1A1-FDFH |
| Type | DisplayPort to HDMI over Ethernet |
|---|---|
| Max Extend Distance | 230 feet |
| Changer Type | DisplayPort to HDMI |
| Color | White |
| Specifications | Video: Video Input: Displayport (FEMALE) Video Output: HDMI (FEMALE) Number of Monitors Supported: 2 Video Ports: (1) Displayport (FEMALE); (1) HDMI (FEMALE) Video Ports Details: HDMI 2.0; HDCP 1.4; HDCP 2.2 Resolutions Supported: 3840 x 2160 (4K x 2K) @ 60 Hz (both Local HDMI port and HDMI Output) Max Supported Video Resolution: 3840 X 2160 @ 60 Hz Audio: Audio Ports: HDMI (Female) Audio Ports Details: HDMI outputs support passthrough audio formats including LPCM2.0/5.1/7.1 Audio Input: Displayport Audio Output: HDMI Audio Specification: Pass-through Audio format: LPCM2.0/5.1/7.1 Displayport Specification: 1.2a HDCP Specification: 1.4; 2.2 Driver Required: No Recommended Category Cable: 24AWG Cat6 All-in-One Kit: Yes DIN Mountable: No Integrated/Removable Cable: No Mounting Accessory Included: Yes Multi-Resolution Support: Yes Built-In Equalizer: Yes Power: Power Source Type: AC Adapter AC Plug Type: AS/NZS 3112; BS1363; CEE 7/16 Schuko; NEMA 1-15P Power Source: Transmitter or Receiver (Included) Power Over Cable (PoC) Support: Yes Receiver Power Source: AC Adapter (Included); Power Over Cable External Power Supply Input Specs (V / Hz / A): 100-240v / 50/60Hz / 0.6A External Power Supply Output Specs (V / A): 24V/1A |
| Connector A | Side A - Connector 1: Displayport (FEMALE) Side A - Connector 2: HDMI (FEMALE) |
|---|---|
| Connector B | Side B - Connector 1: HDMI (FEMALE) |
| Features | Cat6 Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls. Extends a 4K A/V Transmission up to 230 ft.or Even Farther. Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks. Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution. Plug-and-Play Operation for Quick Setup and Immediate Use. TAA-Compliant for GSA Schedule Purchases. |
|---|
| Dimensions | Receiver: 4.53" x 2.76" x 1.33" Transmitter: 4.53" x 2.76" x 1.33" |
|---|---|
| Weight | Receiver: 1.00 lb. Transmitter: 1.00 lb. |

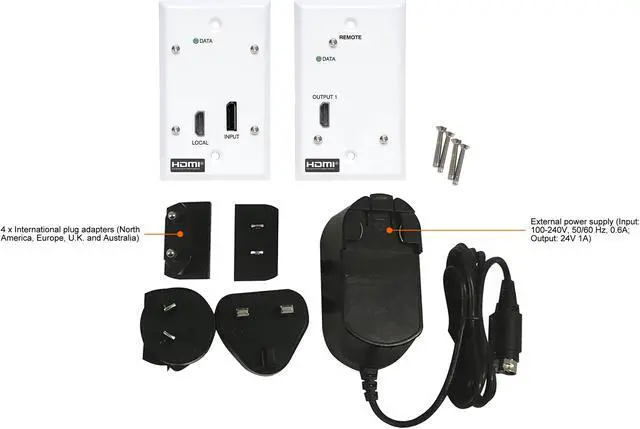

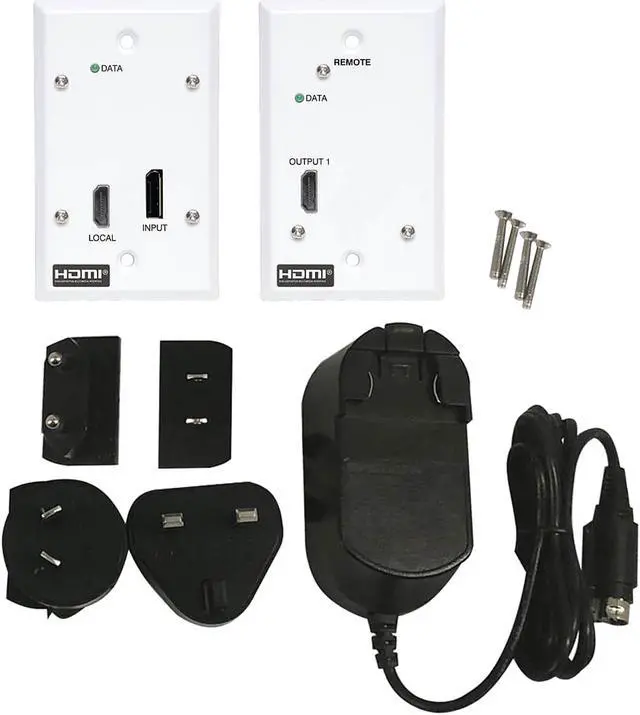

| Package Contents | Transmitter Receiver External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) (4) International plug adapters (North America, Europe, U.K. and Australia) Mounting hardware Owner's manual |
|---|
| First Listed on Newegg | April 03, 2025 |
|---|
