Question 1

How do i access the 1TB HDD? I filled up on my 128 SSD and need more space.

Accepted Answer

The 128 ssd is your C drive, to save to your 1tb you will need to save to your D drive. To check if that's the name open the file explorer (manullia envelope) and loon at the left side of the window under this PC.  You should see your windows drive (C) then you should see the D driver under that.

Question 2

Can you change the color of the keyboard or is red the only color?

Accepted Answer

Red is the only color from what I remember. It should specify somewhere on the page.

Question 3

is it windows 10?

Accepted Answer

Yes windows 10 home.

Question 4

How is the battery life for gaming and just normal use?

Accepted Answer

For gaming, I would recommend plugging it in, itll die in about 2-3 hours from my experience depending on the game.  It also loses performance and the screen locks at 60hz.  For normal use i usually get 6 or so hours for normal browsing, writing and average work tasks.  Changes if i am watching youtube in the background though.

Question 5

is 3gb video memory enough to play games in high resolution in 1080p games?

Accepted Answer

Yes, the 1060 GTX 3GB runs the latest games smoothly. I wish I could edit my review, after some tweaking I have PUBG running at 110-120 fps in 1080p.

Question 6

Does it charge faster than it drains?

Accepted Answer

The battery's life span is equal to the load applied to it. You will notice a fast discharge if your utilizing more computing processes. Just keep it plugged in when using it and you should see no problems with battery life.

Question 7

What screen is TN or IPS. Since in Overview it is IPS, and in Specifications it is a TN?

Accepted Answer

It is the lower end one. I dont recall which is which, but the screen delay on this rig is about 5ms. I think the higher end one is about 3ms. with that said, I still see 200fps in most games, and 60-80 fps on those "early access" or "unoptimized" games.

Question 8

Is NVIDIA GeForce GTX 1060 a mobile version?

Accepted Answer

No, its almost the same as desktop version with slightly lower performance.

Brand	ASUS
Model	FX503VM-NS52
Part Number	90NR0GP1-M04010

Color	Black
Operating System	Windows 10 Home 64-Bit
CPU	Intel Core i5-7300HQ 2.50 GHz
Screen	15.6" 120 Hz
Memory	8 GB DDR4
Storage	1 TB HDD + 128 GB M.2 SSD
Graphics Card	GeForce GTX 1060
Video Memory	3 GB GDDR5
Communication	Gigabit LAN and WLAN
Dimensions (W x D x H)	15.12" x 10.31" x 0.95"-0.98"
Weight	5.73 lbs.

CPU Type	Intel Core i5 7th Gen
Processor Name	Intel Core i5-7300HQ
Number of Cores	Quad-core Processor
Core Name	Kaby Lake
Turbo Frequency	Up to 3.50 GHz
CPU L3 Cache	6 MB

Screen Size	15.6"
Touchscreen	Non-Touch Screen
Wide Screen Support	Yes
Display Type	FHD
Resolution	1920 x 1080
Refresh Rate	120 Hz
Color Gamut	72% NTSC, 100% sRGB
Display Features	120 Hz 5 ms, TN Panel, 72% NTSC 100% sRGB, Anti-Glare

GPU/VPU	GeForce GTX 1060
Video Memory	3GB
Graphic Type	Dedicated Card

BenchmarksBenchmarks Information

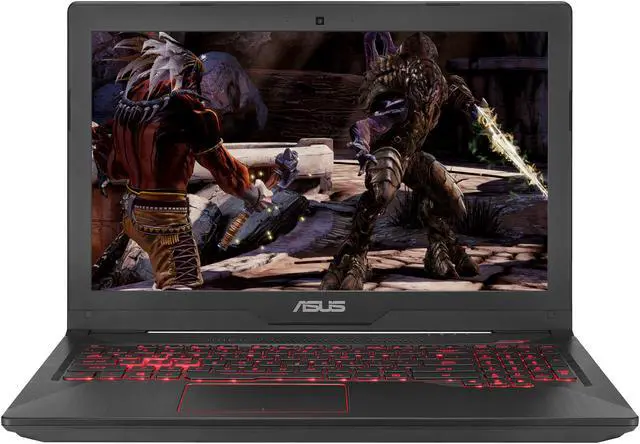

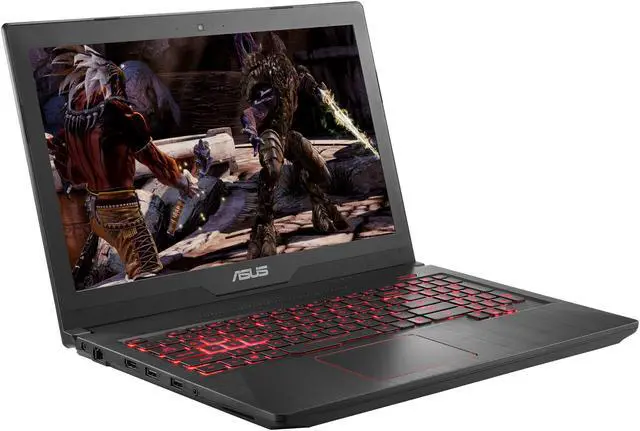

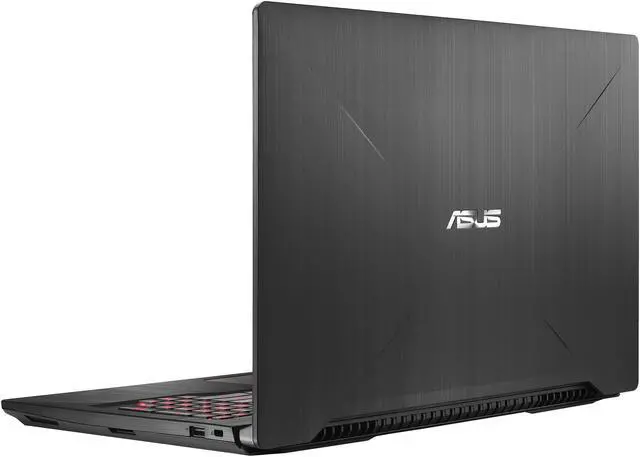

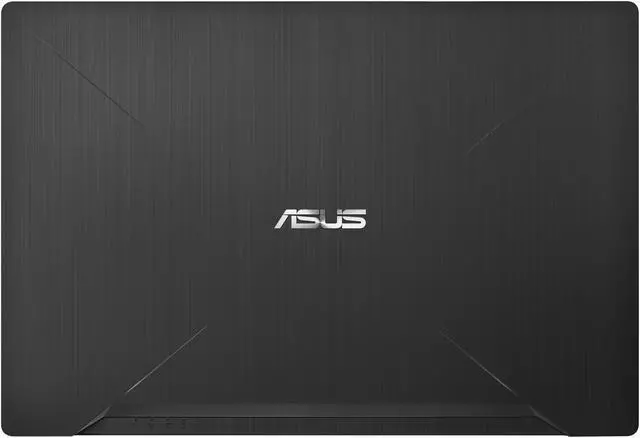

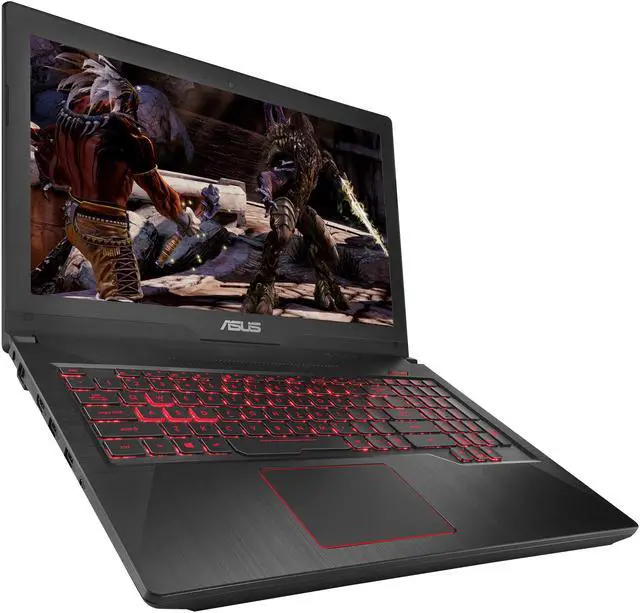

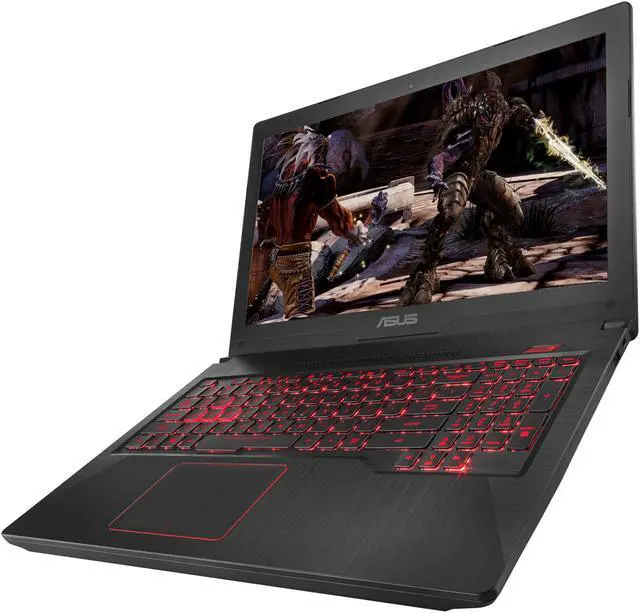

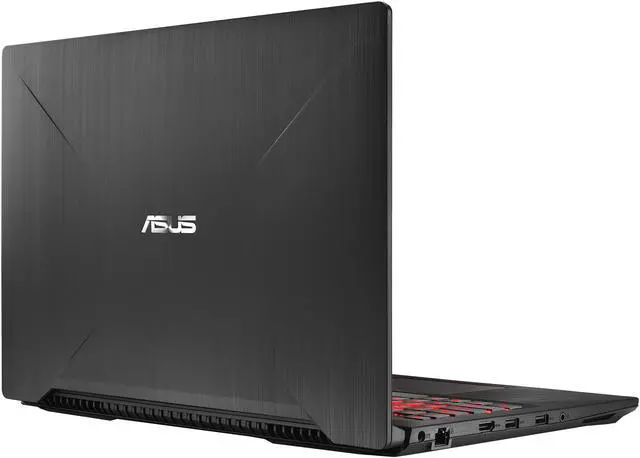

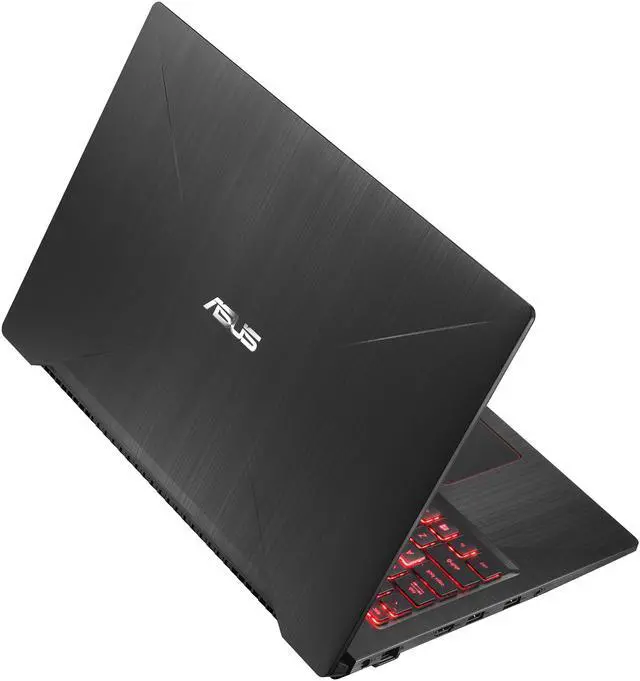

ASUS FX503VM-NS52 15.6" 120 Hz GTX 1060 3 GB VRAM i5-7300HQ 8 GB Memory 128 GB M.2 SSD + 1 TB HDD Windows 10 Home VR Ready Gaming Laptop

Learn more about the ASUS FX503VM-NS52

Customer Reviews of the ASUS FX503VM-NS52

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Memory	8GB
Memory Speed	DDR4 2400
Memory Slot (Total)	2
Max Memory Supported	32 GB

LAN	10/100/1000Mbps
WLAN	802.11ac Wireless LAN
Bluetooth	Bluetooth 4.1

USB	3 x USB 3.0 Type-A
HDMI	1 x HDMI 2.0
Audio Ports	1 x Headphone/Microphone Combo Jack

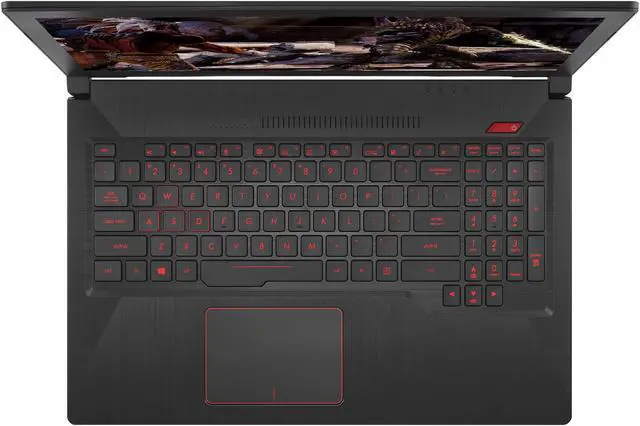

Keyboard	Illuminated Chiclet Keyboard
Backlit Keyboard	Backlit
Webcam	720p HD
Card Reader	SD

AC Adapter	180-watt AC Adapter
Battery	64 WHrs, 4S1P, 4-cell Li-ion

Audio
Audio	Built-in array microphone
Speaker	2 x 2W

General
Style	Thin and Light
Type	Gaming
Usage	Consumer

Item#: N82E16834234951
