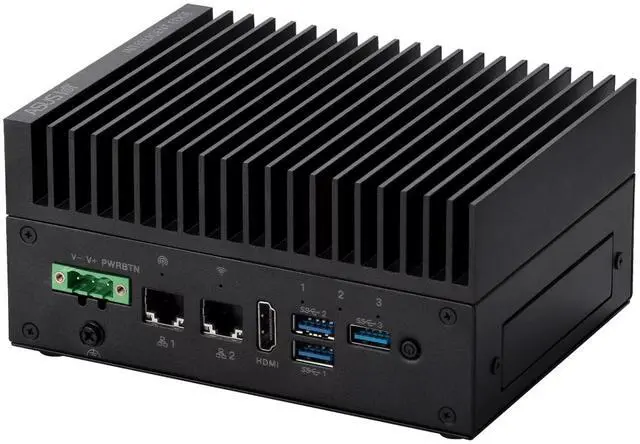

ASUS PE1100N / Orin NX 16G/US Arm System, NVIDIA Jetson Orin, LPDDR4, eMMC, USB3, Dual LAN, HDMI, M.2 E, M.2 B, M.2 M, AEM, Dual SIM, 12-24V - OEM
- Intelligent Edge AI System with NVIDIA Jetson Orin NX and Orin Nano
- Fanless design and diverse I/O in a compact size
- Ready to connect Wi-Fi, BT & 4G, 5G by optional modules
- Wide range of power input and operating temperature
- Support ASUS Expansion Module (AEM)
- Amazon AWS IoT Greengrass Certified
+
+
Specs
Reviews
Learn more about the ASUS PE1100N / Orin NX 16G/US
| Brand | ASUS |
|---|---|
| Model | PE1100N / Orin NX 16G/US |
| Part Number | 90AE0191-M002H0 |
| Form Factor | Compact |
| CPU Type | ARM |
|---|---|
| Installed CPU | 8 x Arm Cortex-A78AE v8.2 |
| CPU Features | AI Performance 100 TOPS |
| Installed Memory Size | 16 GB 128-bit LPDDR5 |
|---|
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | M.2 M key: 1 x 2242/2260/2280, for M.2 SSD (PCIe, OS disk, size option) M.2 E key: 1 x 2230, for Wi-Fi/BT (PCIe, USB 2.0, I2C and PCM) M.2 B key: 1 x 3042/3052, for 4G/5G (PCIe, USB 2.0/3.0) |
| GPU/VPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
|---|
| Max. LAN Speed | Dual 1 Gigabit |
|---|
| Front USB | 3 x USB 3.2 Gen1, Type-A |
|---|---|
| COM | 2 x RS-232/422/485, DB9 1 x CAN bus, DB9 |
| HDMI | 1 x HDMI 2.0b, 3840 x 2160 @60Hz |
| RJ45 | 2 |
| Other Ports | 4 x DI, 4 x DO (2x5 Terminal Block, w/ isolation) |
| Max. Power | 12 to 24 VDC, 3-pin terminal block (1-pin for remote power button) |
|---|
| Temperature | Operating Temp. -20 ~ up to 50°C Storage Temp. -40 ~ 85°C |
|---|---|
| Humidity | 10 ~ 95% (non-condensing) |
| Dimensions | Board: 3.5", 146 x 105 mm System: 152 x 114 x 72 mm |
|---|---|
| Weight | 1.4kg |
| First Listed on Newegg | March 11, 2025 |
|---|
