#Please refer to the official website for detailed specifications#
It needs to be transferred from our warehouse to the Taiwan warehouse, which will take a long time. If you mind the time, please do not place an order. Thank you!

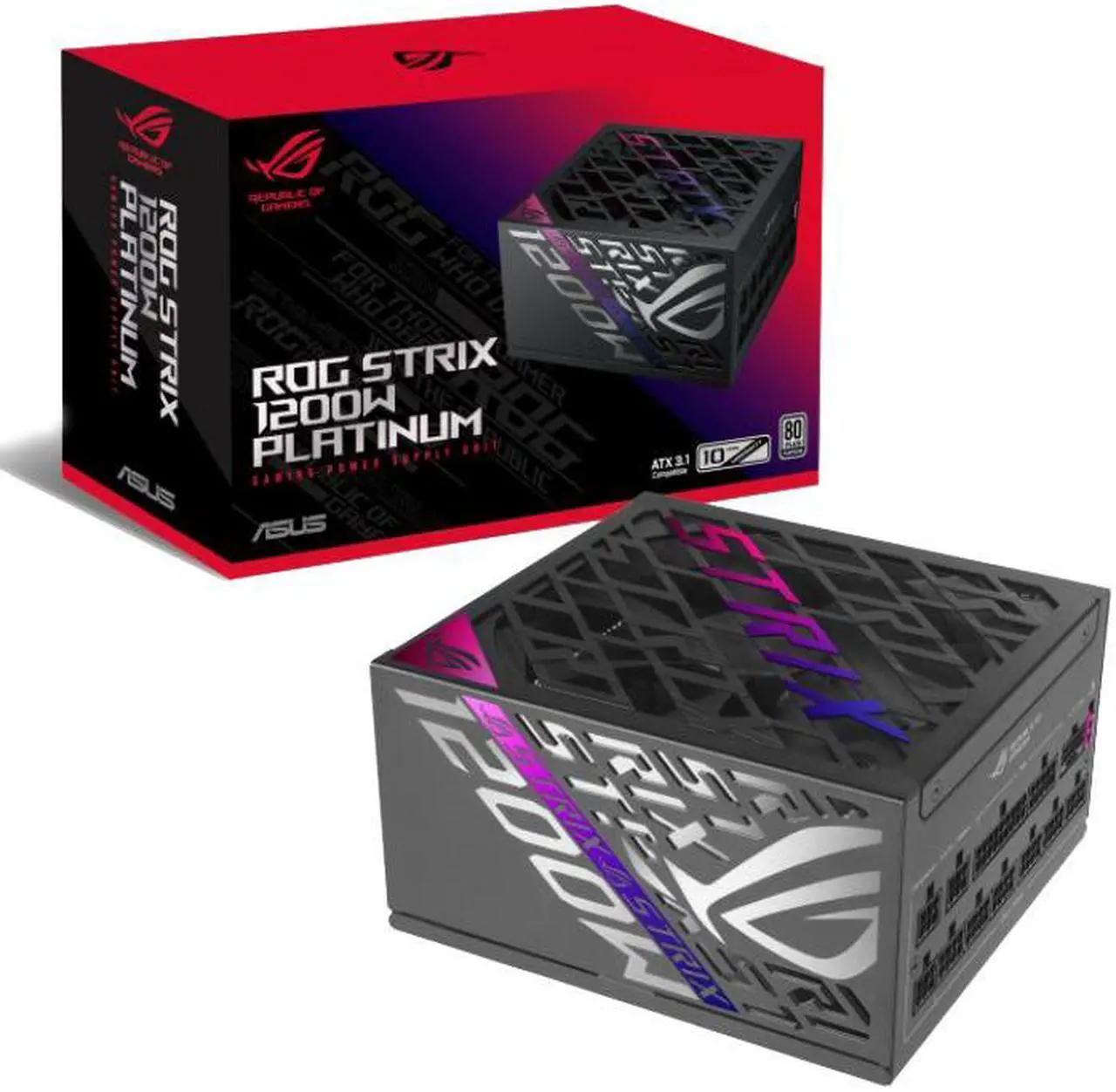

ROG STRIX 1200W Platinum is a thermally efficient and quiet power supply equipped with gallium nitride (GaN) MOSFE
Ts and smart voltage regulators that not only provide stable performance, but are also stylish.
Gallium Nitride (GaN) MOSFET: Provides superior power efficiency and a more organized internal layout for cooler operation.
ASUS patented smart voltage regulator: ensures that the graphics card receives a stable power supply, making the gaming process smoother and maintaining consistent performance.
Large ROG Heatsink: Covers critical components, reducing temperatures and noise compared to reference designs.
Dual ball bearing fans: service life up to twice that of oil-sealed bearing designs.
0dB Technology: Allows you to enjoy light gaming in a relatively quiet environment.
ATX 3.1 Compatible: ROG Strix Platinum is ATX 3.1 compliant for enhanced voltage and current regulation.
PCIe 5.0 Ready: ROG Strix Platinum features a native 12V-2x6 connector for powering next-generation graphics cards.
80 PLUS Platinum Certification: ROG Strix Platinum uses low ESR capacitors and premium components to deliver industry-leading power efficiency.
Product
Specifications
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Product size
160 x 150 x 86mm
Conversion power consumption
80Plus Platinum
MTBF
>120, 000 hrs @ 25°C
Multiple technical protection
OPP/OVP/SCP/OCP/OTP/UVP
Environmental certification
ROHS
Input voltage (AC)
100-240Vac
Output voltage (DC)
+ 3.3V +5V +12V -12V +5Vsb
maximum load
25A 25A 100A 0.3A 3A
Combined Load
130W 130W 1200W 3.6W 15W
Total power consumption
1200W

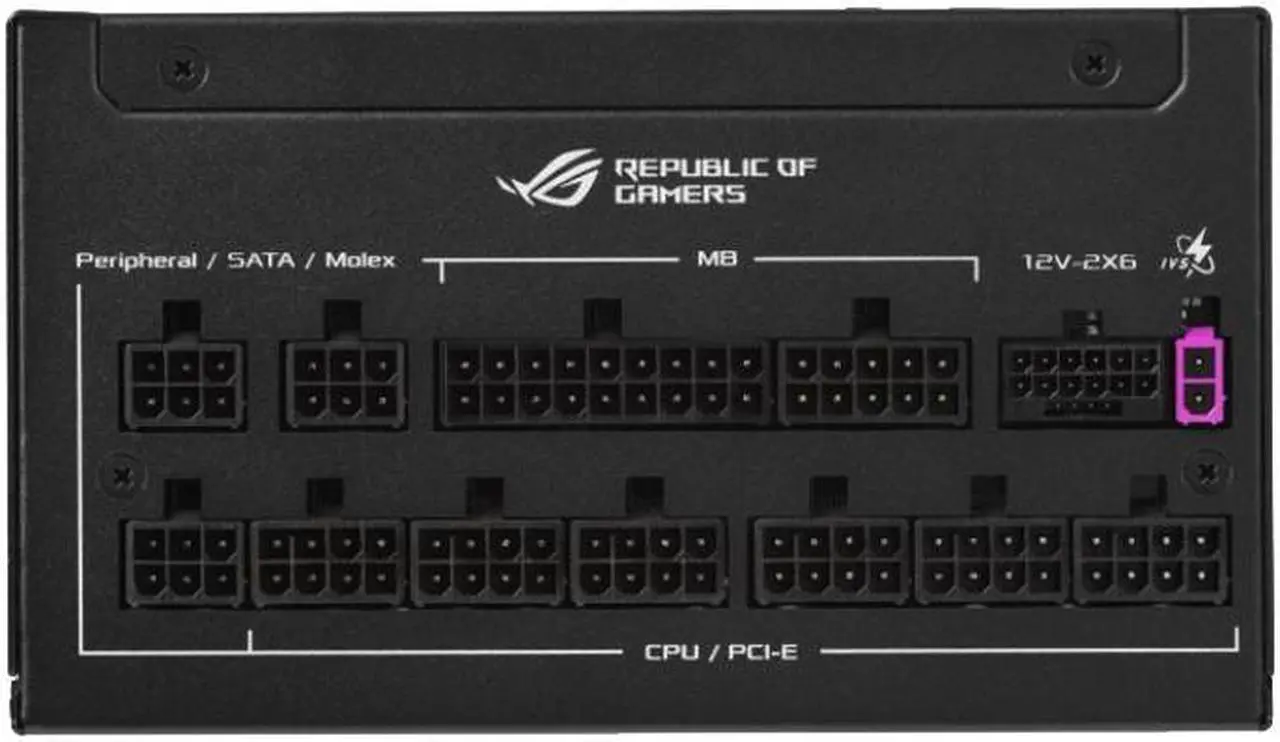

port
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
Packaging contents
Power cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
weight
2.94 kg (single PSU)
Cybenetics Noise Level Certification
TBD
0dB technology
support. When the power supply load drops below a certain level, the fan will stop spinning completely.

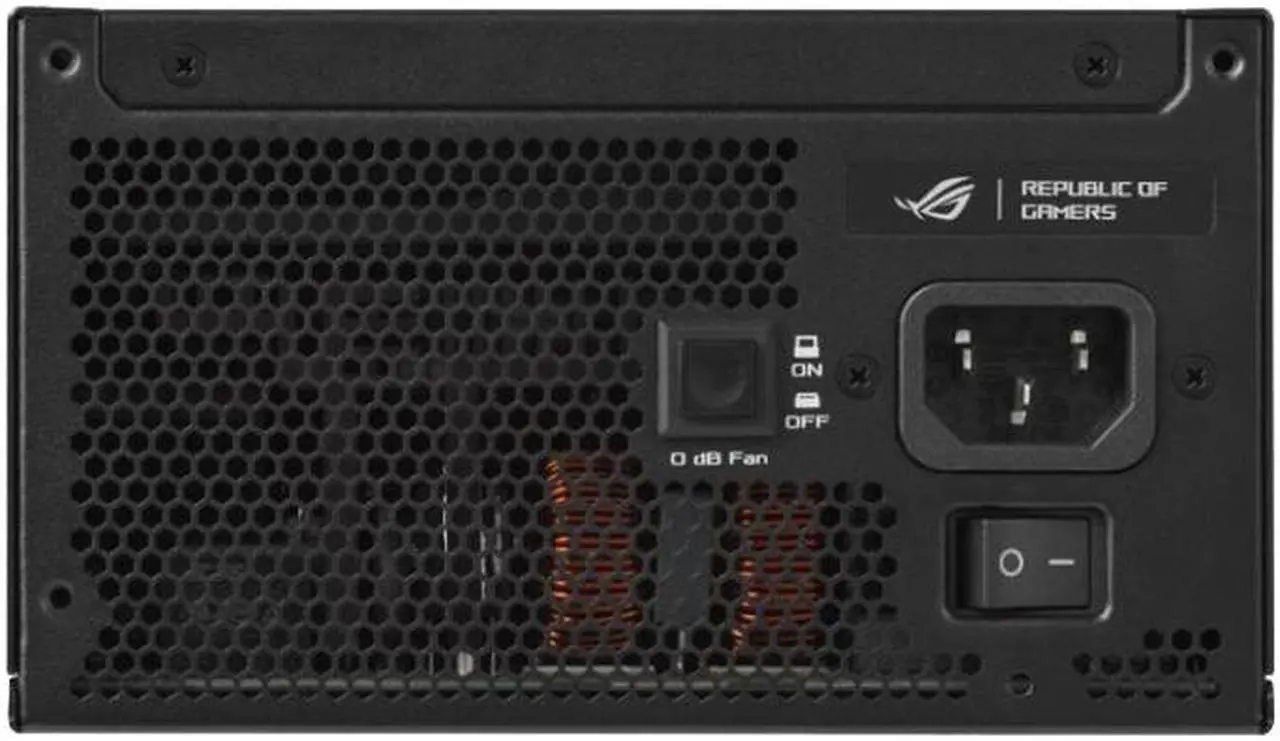

0dB fan button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
