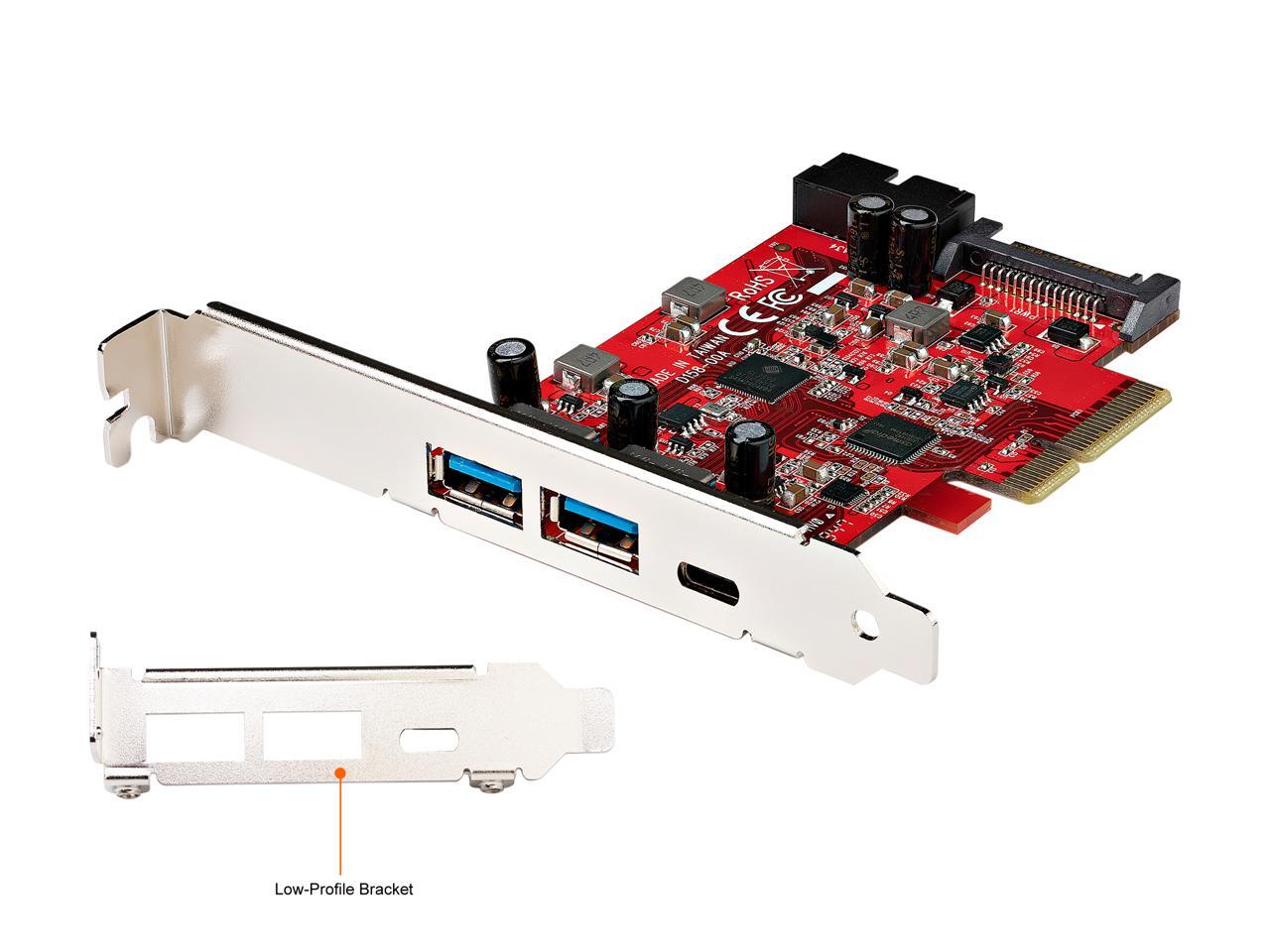

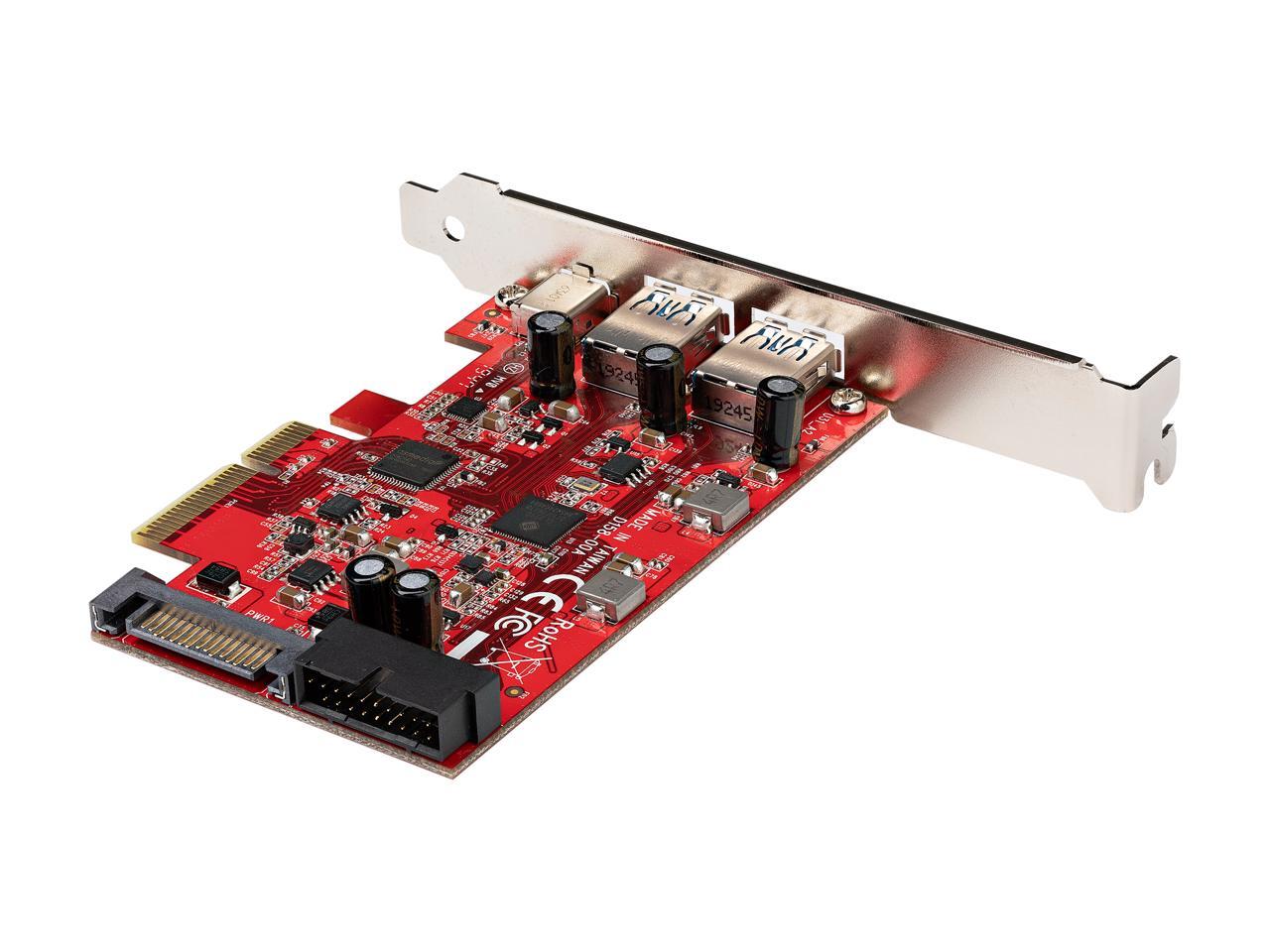

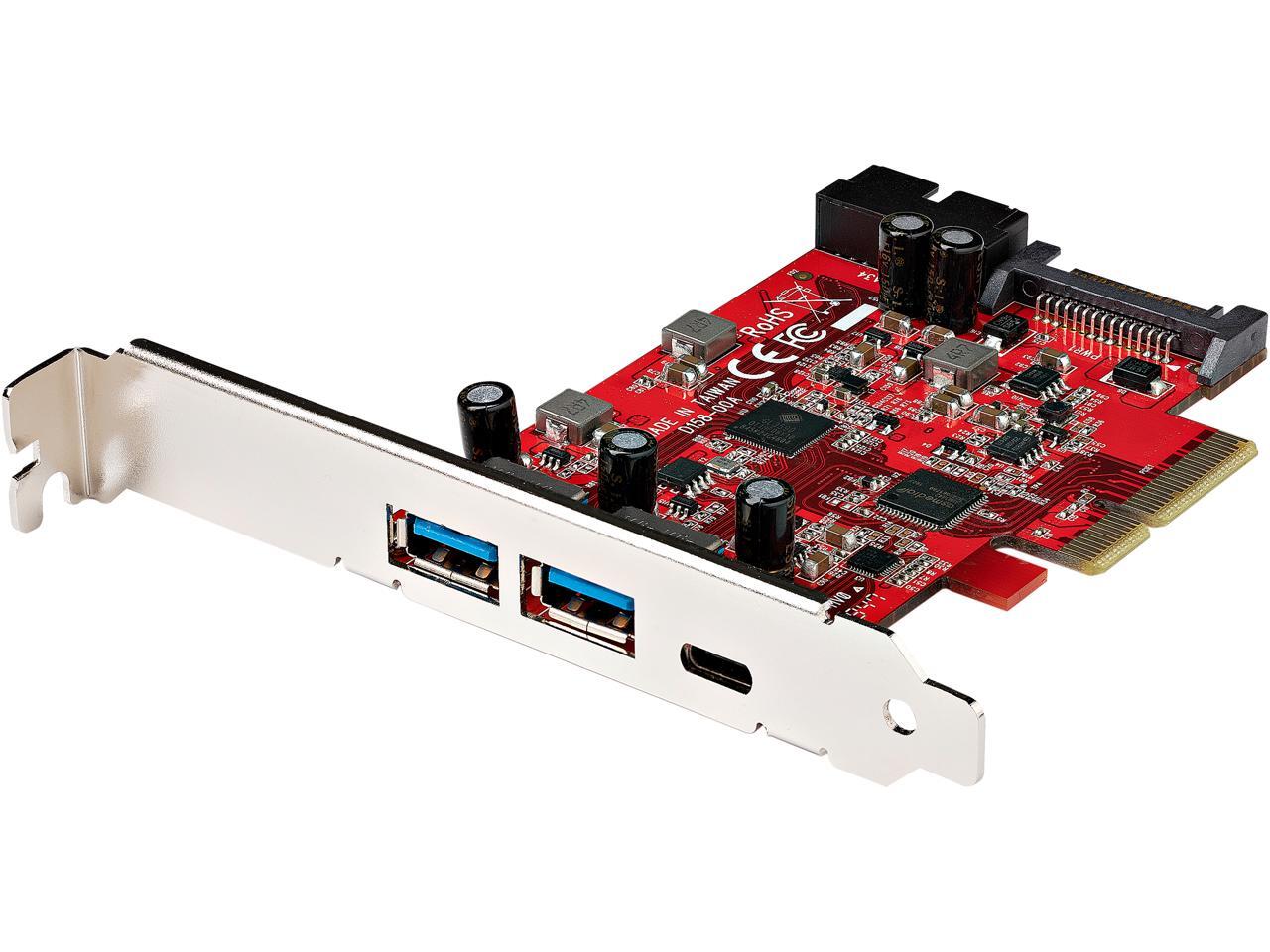

5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A, 1x 2 Port IDC (Internal 5Gbps USB Header Expansion), USB C PCIe Card, PCI Express USB Controller - Windows/macOS/Linux (PEXUSB312A1C1H)

In stock.

Ships from United States.

5-Port USB PCIe card w/ ASMedia 3142 IC | Upgraded version of our PEXUSB312EIC
USB 3.1 Gen 2 PCIe card adapter | 10Gbps Hub with 2x USB-A/1x USB-C external ports | Internal IDC header for 2x 5Gbps USB
PCI Express expansion card/host controller | Multiple Ins maintains max bandwidth w/mixed speed devices | For USB devices and external storage SSD/NVMe
Optional SATA power up to 15W USB Type-C + 4.5W USB-A per port
Install USB-C PCIe card in PCI-e 3.0 x4 slot | Full/low profile brackets

Overview

Specs

Reviews

Warranty & Returns

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law

Brand	StarTech.com
Model	PEXUSB312A1C1H

Type	USB 3.2 (10 Gbps) PCIe Card

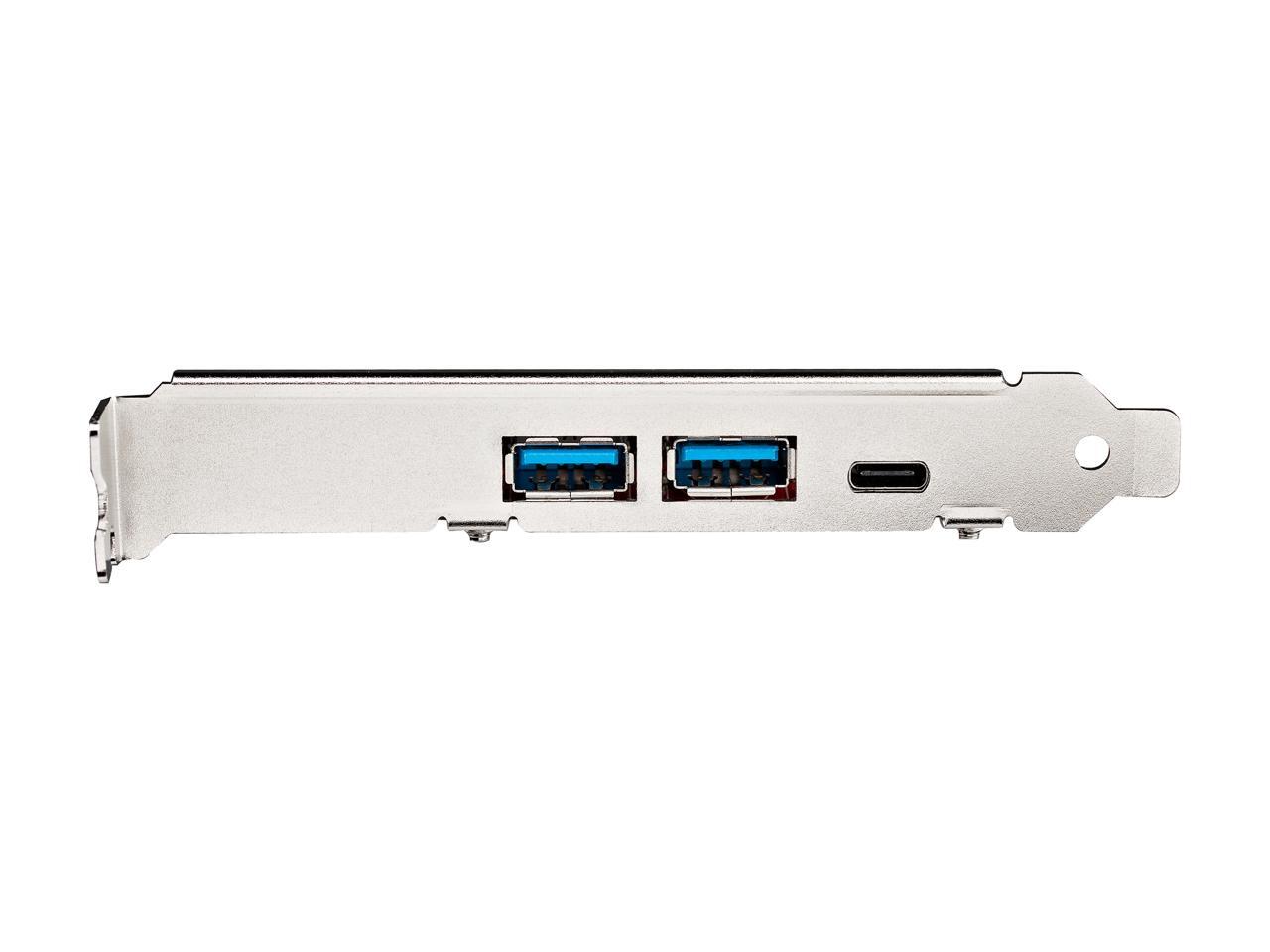

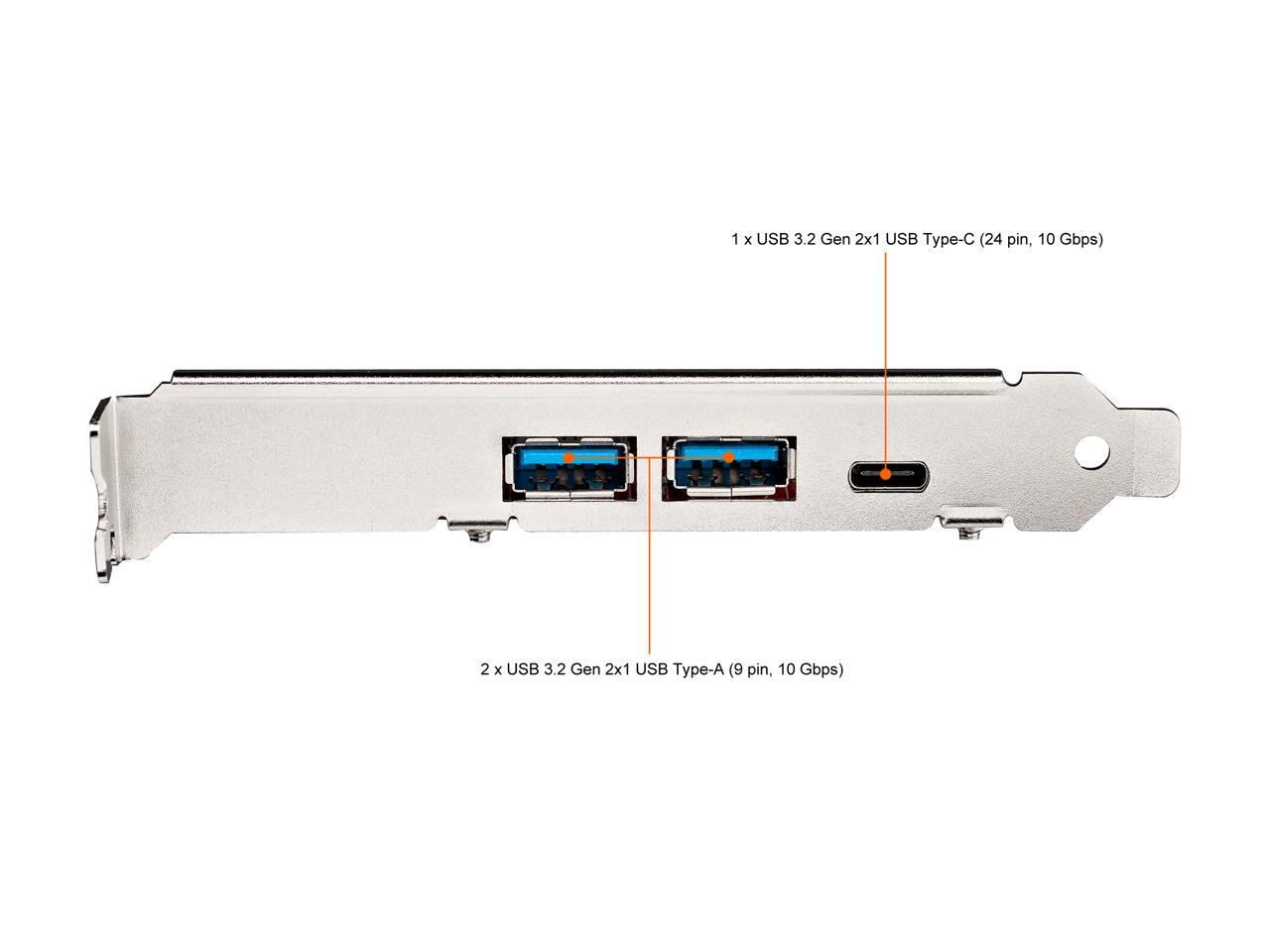

External USB Ports	2 x USB 3.2 Gen 2x1 USB Type-A (9 pin, 10 Gbps) 1 x USB 3.2 Gen 2x1 USB Type-C (24 pin, 10 Gbps)
Internal Ports	1 x IDC (20 pin, USB 3.0, Motherboard Header) 1 x SATA Power (15 pin)
Standard	Industry Standards: PCI Express Base Specification Rev. 3.0 USB 3.2 Specifications UASP (USB Attached SCSI Protocol) Rev. 1.0
Operating Systems Supported	Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012 R2, 2016, 2019 Linux 3.5 to 4.11.x LTS version only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13) macOS Big Sur (11.0)
Compatibility	Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012 R2, 2016, 2019 Linux 3.5 to 4.11.x LTS version only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13) macOS Big Sur (11.0)
Specifications	Total USB Power Output: USB-C Power Output - 15W USB-A Power Output - 4.5W IDC Power Output - 4.5W Maximum Data Transfer Rate: 10Gbps Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s UASP Support: Yes Type and Rate: USB 3.0 - 5 Gbit/s MTBF: 1,677,495 Hours

Dimensions	0.60" x 4.00" x 2.70"
Weight	0.13 lb.
