120V AC input and output compatible with most homes and offices
15-ft (4.5m) cord with a NEMA L5-20P twist-lock plug suitable for larger rooms
+
+
Overview
Specs
Reviews (1)

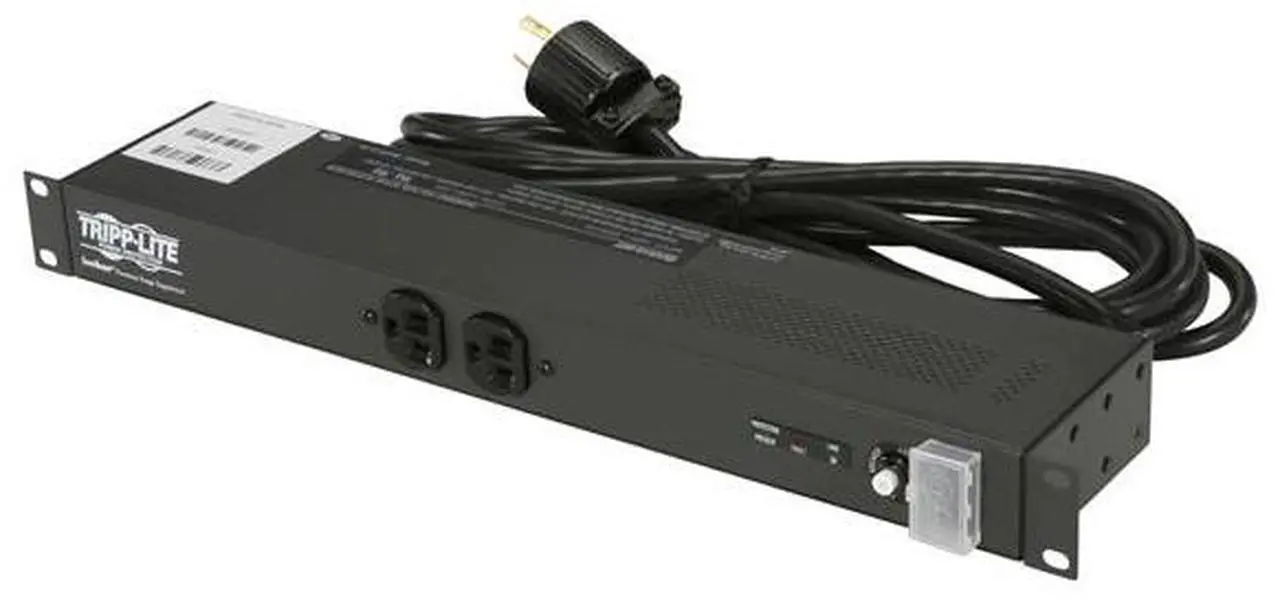

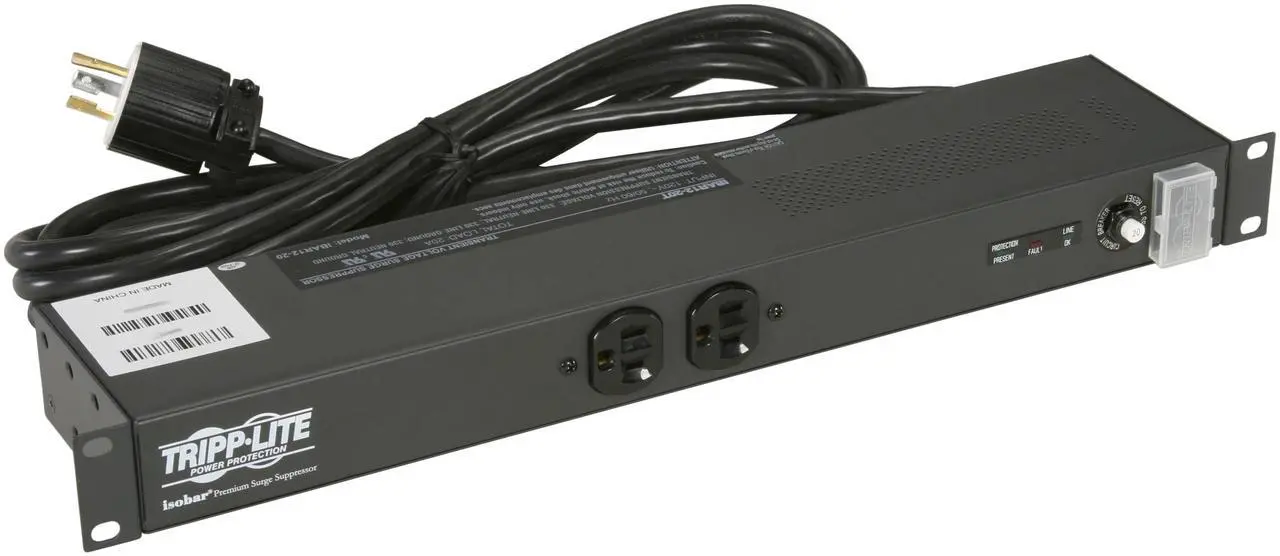

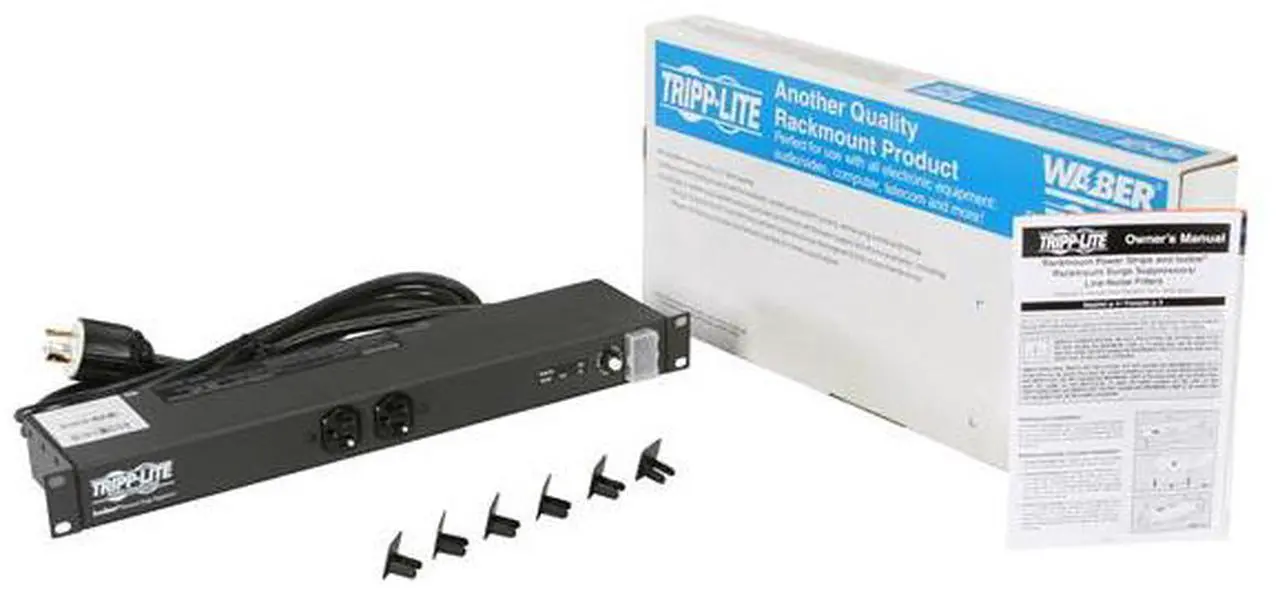

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.Plug/Connector Type: YesReceptacles: 12 x NEMA 5-20RInput Voltage: 120 V ACOutput Voltage: 120 V ACCurrent: 20 A Line CurrentSurge Energy Rating: 3840 JPower Cord/Cable: 15 ftHeight: 1.8Width: 17.5"Depth: 4"Package Contents: IBAR12-20TIBAR12-20T Surge SuppressorWarranty informationInstruction manualLimited Warranty: LifetimePackage ContentsIBAR12-20TIBAR12-20T Surge SuppressorWarranty informationInstruction manual"
Learn more about the Tripp Lite IBAR12-20T
Model
Brand
TRIPP LITE
Series
Isobar
Model
IBAR12-20T
Details
Outlets
12
Outlets Type
(2 front NEMA 5-15R / 10 rear 5-20R)
Cord Length
15 feet
Input Voltage
120V (110-125V)
Output Amperage Capacity
20
Output Watt Capacity
2400 Watts
AC Suppression Joule Rating
3840 joules
EMI/RFI Noise Filter
40-80 dB
Protection Modes
H-N, N-G and H-G
Certifications
UL1449 (UR status); UL1283; cUL
Features
Features
Applications Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio/video, security, sound reinforcement and more.
Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
3840 joules/60,000 amp network-grade AC surge suppression with EMI/RFI filtering
12 output receptacles outlets (2 front mounted NEMA 5-15R/10 rear mounted NEMA 5-20R)
15 foot AC cord with NEMA L5-20P straight-in plug connection
Diagnostic LEDs confirm proper wiring and suppressor operation
