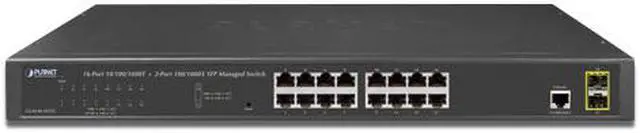

Planet GS-4210-16T2S 16-Port Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfaces

Physical Port - 16-port 10/100/1000BASE-T Gigabit RJ45 copper - 2 100/1000BASE-X mini-GBIC/SFP slots - RJ45 console interface for switch basic management and setup - Reset button for system factory default Switching - Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X - Features Store-and-Forward mode with wire-speed filtering and forwarding rates - IEEE 802.3 x flow control for full duplex operation and back pressure for half duplex operation - 9K Jumbo frame - Automatic address learning and address aging - Supports CSMA/CD protocol Layer 2 Features * Supports VLAN - IEEE 802.1Q tagged VLAN - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1 ad) - Protocol VLAN - Voice VLAN - Private VLAN (Protected port) - Management VLAN - GVRP * Supports Spanning Tree Protocol - STP (Spanning Tree Protocol) - RSTP (Rapid Spanning Tree Protocol) - MSTP (Multiple Spanning Tree Protocol) - STP BPDU Guard, BPDU Filtering and BPDU Forwarding * Supports Link Aggregation - IEEE 802.3 ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (Static Trunk) - Maximum 8 trunk groups, up to 8 ports per trunk group * Provides port mirror (many-to-1) * Loop protection to avoid broadcast loops * Quality of Service * Ingress / Egress Rate Limit per port bandwidth control * Traffic classification - IEEE 802.1 p CoS - DSCP / IP Precedence of IPv4 / IPv6 packets * Strict priority and Weighted Round Robin (WRR) CoS policies Multicast - Supports IPv4 IGMP snooping v2 and v3 - Supports IPv6 MLD snooping v1, v2 - IGMP querier mode support - IGMP snooping port filtering - MLD snooping port filtering Security Storm Control support - Broadcast / Unknown-Unicast / Unknown-Multicast * Authentication - IEEE 802.1X port-based network access authentication - Built-in RADIUS client to co-operate with the RADIUS servers - DHCP Option 82 - RADIUS / TACACS+ authentication * Access Control List - IPv4 / IPv6 IP-based ACL - IPv4 / IPv6 IP-based ACE - MAC-based ACL - MAC-based ACE * MAC Security - Static MAC - MAC Filtering * Port security for source MAC address entries filtering * DHCP snooping to filter distrusted DHCP messages * Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding * IP source guard prevents IP spoofing attacks * DoS attack prevention Management * IPv4 and IPv6 dual stack management * Switch Management Interface - Local Command Line Interface - IPv4 / IPv6 Web switch management - Telnet Command Line Interface - SNMP v1, v2c and v3 - HTTPs secure access * Built-in Trivial File Transfer Protocol (TFTP) client * Static and DHCP for IP address assignment * System Maintenance - Firmware upload / download via HTTP / TFTP - Configuration upload / download through HTTP / TFTP - Hardware reset button for system reset to factory default * SNTP Network Time Protocol * Cable diagnostics * Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED * SNMP trap for interface Link Up and Link Down notification * Event message logging to remote Syslog server * Fou
