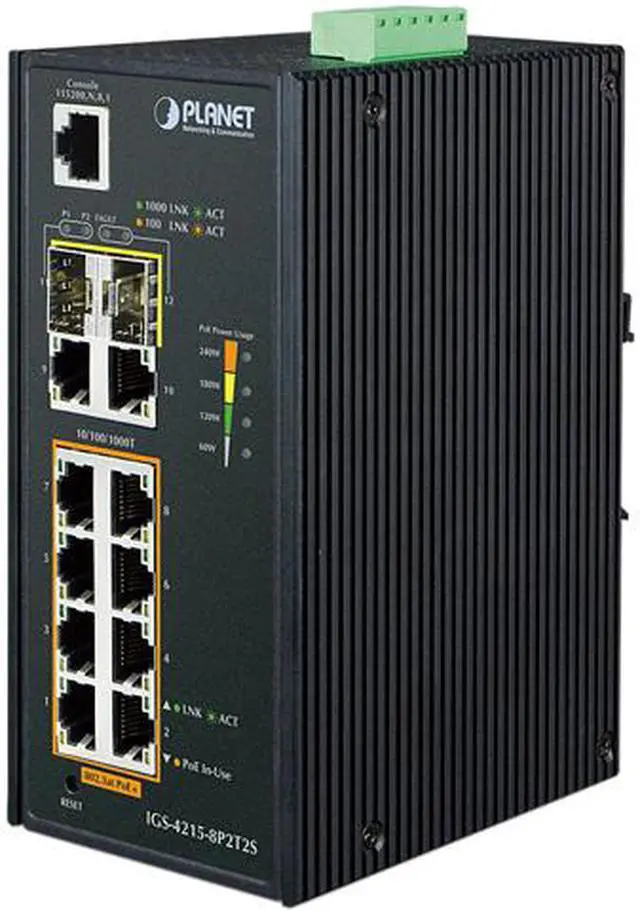

PLANET IGS-4215-8P2T2S Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Be the first to review this product...
  • 8K MAC Address Table
  • Managed
  • PoE
+
+
Specs
Reviews

Learn more about the PLANET IGS-4215-8P2T2S

Model
Brand PLANET
Model IGS-4215-8P2T2S
Format & Standards
Format DIN Rail Mount
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
Network Management Type Managed
Ports & Interface
Primary Ports 8-Port 10/100/1000T 802.3at PoE
2-Port 10/100/1000T
2-Port 100/1000X SFP
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
VLAN Support Yes
Jumbo Frames 10KB
Details
PoE Yes
SNMP Yes
QoS Yes
Port Mirroring Yes
Power Power Requirements: 48~56V DC, 6A (max.) (>51V DC for PoE+ output recommended)
Power Consumption / Dissipation:
7.8 watts, 26 BTU (Standby without PoE function) at DC 56V power input
14 watts, 47 BTU (Full loading without PoE function) at DC 56V power input
242 watts, 825 BTU (Full loading with PoE function) at DC 56V power input
Dimensions & Weight
Dimensions 2.83" x 6.34" x 4.21"
Weight 2.29 lbs.
Environmental
Temperature Operating Temperature: -40 ~ 75 degree Celsius
Storage Temperature: -40 ~ 85 degree Celsius
Humidity 5% - 95%, Non-condensing
Additional Information
First Listed on Newegg December 28, 2018
