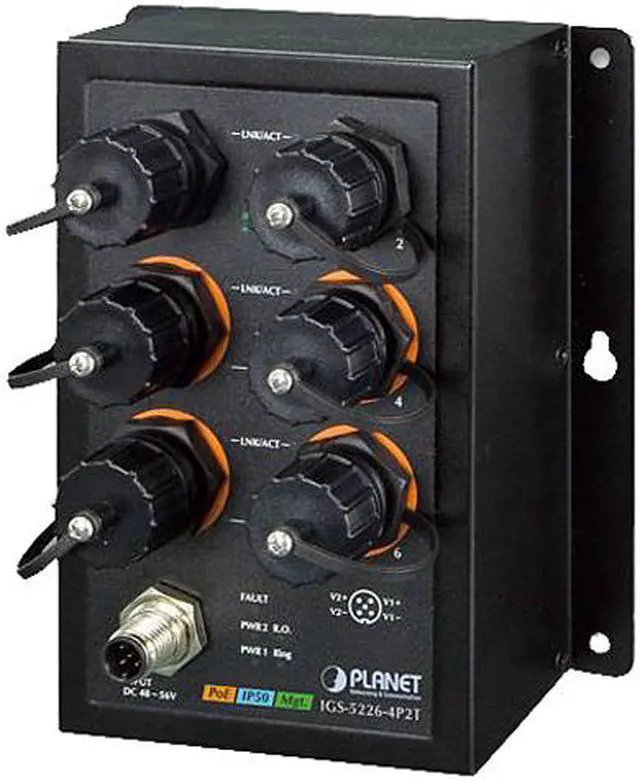

Planet IGS-5226-4P2T Industrial EN50155 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch(-40 - 75 degrees C)
- 8K MAC Address Table
- 4MB Buffer Memory
- Managed
- PoE
+
+
Specs
Reviews
Learn more about the PLANET IGS-5226-4P2T
| Brand | PLANET |
|---|---|
| Model | IGS-5226-4P2T |
| Format | Wall-mount and DIN Rail Kit |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az EEE (Energy Efficient Ethernet) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) |
| Network Management Type | Managed |
| Primary Ports | 6 x RJ45 |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Jumbo Frames | 9000 bytes |
| Buffer Memory | 4MB |
|---|---|
| Protocols | Routing Protocols: IPv4 software static routing IPv6 software static routing Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| Security | Authentication IEEE 802.1x port-based/MAC-based network access authentication IEEE 802.1x authentication with guest VLAN Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List (ACL) Source MAC/IP address binding DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder |
| PoE | PoE Standard: IEEE 802.3af/802.3at PoE/PSE PoE Power Supply Type: End-span PoE Power Output IEEE 802.3af Standard: Per port 48V - 53V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard: Per port 53V - 56V DC (depending on the power supply), max. 36 watts Power Pin Assignment: 1/2 (+), 3/6 (-) PoE Power Budget: 144 watts max. (depending on power input) PoE Ability: PD at 7 watts: 4 units PD at 15.4 watts: 4 units PD at 30.8 watts: 4 units |
| SNMP | Yes |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: Port number 802.1p priority 802.1Q VLAN tag DSCP / ToS field in IP packet |
| LACP | Yes |
| Layer | 3 |
| Port Mirroring | Many-to-1 monitor |
| LEDs | System: PWR1 (Green), PWR2 (Green), Fault (Red) Ring (Green), R.O. (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 2): LNK/ACT (Green) 10/100/1000T RJ45 Interfaces (Port 3 to Port 6): LNK/ACT (Green) PoE-in-Use (Orange) |
| Button | Reset Button: < 5 sec: System reboot > 5 sec: Factory default |
| Power | Dual 48 - 56V DC (>53V DC for PoE+ output recommended) Max. 165.3 watts / 563.67 BTU |
| Features | Physical Port: 6-port 10/100/1000BASE-T dustproof RJ45 copper with 4-port IEEE 802.3at/af Power over Ethernet Injector function Hardware Conformance: Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE Complies with IEEE 802.3af Power over Ethernet end-span PSE Up to 4 ports of IEEE 802.3af/802.3at devices powered Supports PoE Power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE Management: Total PoE power budget control Per port PoE function enable/disable PoE Port Power feeding priority Per PoE port power limitation PD classification detection PD alive check PoE schedule PD scheduled power recycling IP50-rated metal case Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience Supports 6000V DC Ethernet ESD protection Layer 3 IP Routing Features: Supports maximum 32 static routes and route summarization Layer 2 Features: Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth Storm control support Supports VLAN Supports Spanning Tree Protocol Supports Link Aggregation Provides port mirror (many-to-1) Port mirroring monitors the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports E.R.P.S. (Ethernet Ring Protection Switching) IEEE 1588 and Synchronous Ethernet network timing Multicast: Supports IGMP snooping v1, v2 and v3 Supports MLD snooping v1 and v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration) |
|---|
| Dimensions | 6.30" x 5.20" x 2.95" |
|---|---|
| Weight | 1.79 lbs. |
| Temperature | Operating: -40 - 75 degree Celsius Storage: -40 - 80 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| First Listed on Newegg | June 05, 2019 |
|---|
