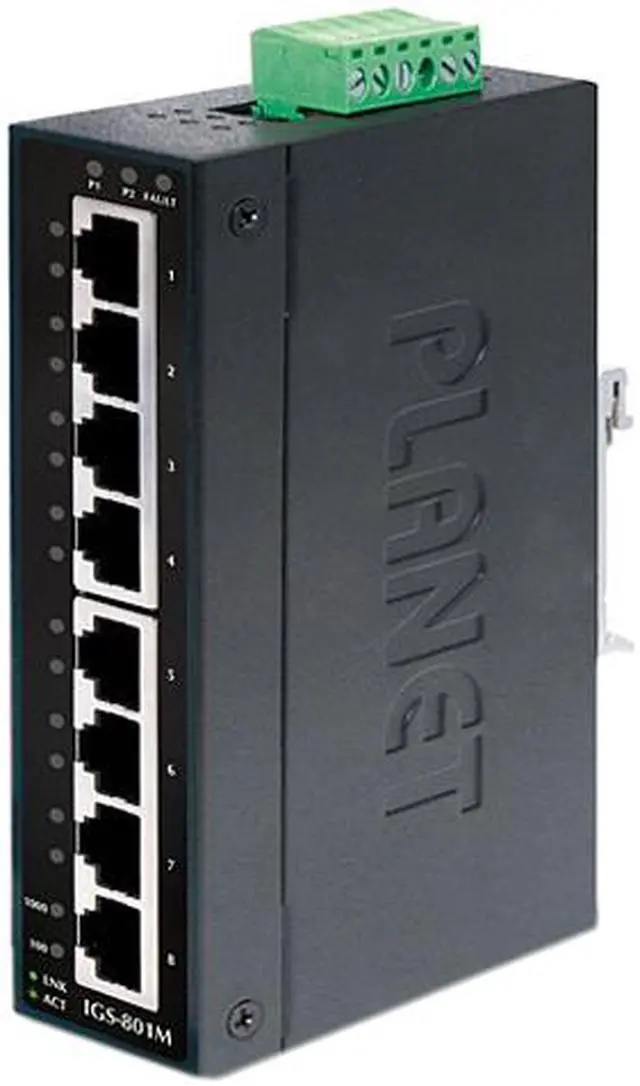

Planet IGS-801M 8-Port 10/100/1000 Mbps Managed Industrial Ethernet Switch

Be the first to review this product...
  • 8-Port 10/100/1000BASE-T RJ45 copper
  • IP30 metal case protection
  • DIN-rail and wall mount design
  • Supports VLAN
  • Supports Spanning Tree Protocol
  • Supports Link Aggregation
  • Ingress and egress rate limit per port bandwidth control
+
+
Specs
Reviews

Learn more about the PLANET IGS-801M

Model
Brand PLANET
Model IGS-801M
Format & Standards
Format DIN Rail Kit and Wall Mount Kit
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Network Management Type Managed
Ports & Interface
Primary Ports 8 x RJ45
Primary Port Speed 10/100/1000Mbps
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
Jumbo Frames 10KB
Details
Buffer Memory 4.1MB
Protocols Spanning Tree Protocol:
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
Security IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
SNMP Yes
QoS 8 mapping ID to 8 level priority queues
Port number
802.1p priority
802.1Q VLAN tag
DSCP field in IP packet

Traffic classification based, strict priority and WRR
LACP Yes
Layer 2
Port Mirroring Many-to-1 monitor
LEDs System:
Power 1, Power 2, Fault Alarm

Ports: 10/100 Link/Act, 1000 Link/Act
Button Rest Button:
< 5 sec: System reboot
> 5 sec: Factory default
Power DC 12 to 48V
AC 24V
4.5 watts / 15BTU (System on)
10 watts / 34BTU (Full loading)
Features
Features Physical Port: 8-Port 10/100/1000BASE-T RJ45 copper

Industrial Case/Installation:
IP30 metal case protection
Supports EFT 6000VDC protection for power line
Supports 6000VDC Ethernet ESD protection

Layer 2 Features:
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
Supports Spanning Tree Protocol
Supports Link Aggregation
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops

Multicast:
Supports IPv4 IGMP snooping v2 and v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering

Management:
IPv4 and IPv6 dual stack management
Switch management interface
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System maintenance
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) and LLDP-MED
SNMP trap for interface link up and link down notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET smart discovery utility
Dimensions & Weight
Dimensions 1.26" x 5.31" x 3.43"
Weight 1.05 lbs.
Environmental
Temperature -40 - 75 degree Celsius
Humidity 5% - 95%, Non-condensing
