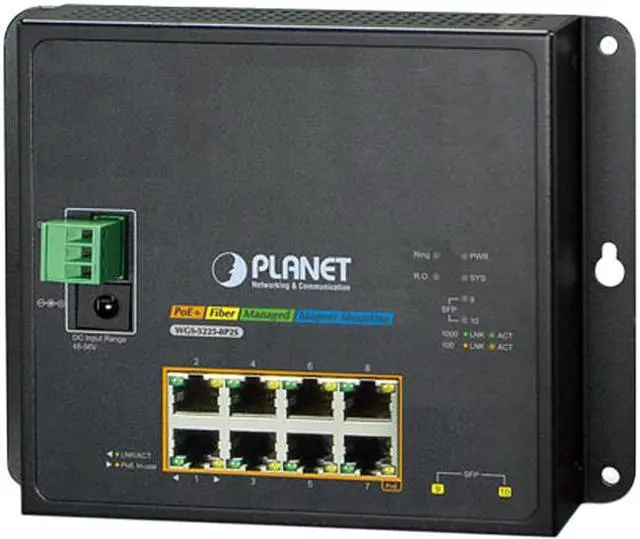

PLANET WGS-5225-8P2S Managed Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch

Be the first to review this product...
  • 8K MAC Address Table
  • 4MB Buffer Memory
  • Managed
  • PoE
+
+
Specs
Reviews

Learn more about the PLANET WGS-5225-8P2S

Model
Brand PLANET
Model WGS-5225-8P2S
Format & Standards
Format Wall Mountable
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX / 100BASE-FX
IEEE 802.3z Gigabit SX / LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
ITU-T G.8032 Ethernet Ring Protection Switching
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
Network Management Type Managed
Ports & Interface
Primary Ports 8 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
2 x 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
VLAN Support Yes
Jumbo Frames 9KB
Details
Buffer Memory 4MB
PoE Yes
SNMP Yes
QoS Yes
LACP Yes
Port Mirroring Yes
LEDs System:
PWR(Green)
Ring (Green)
Ring Owner (Green)

Per 10/100/1000T RJ45 PoE+ Ports:
PoE-in-Use (Orange)
LNK / ACT (Green)

Per SFP Interface:
100 LNK / ACT (Orange)
1000 LNK / ACT (Green)
Power Power Requirements: Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption:
Max. 7.2 watts / 24.7 BTU (Power on without any connection)
Max. 251 watts / 861.2 BTU (Full loading with PoE function)
Features
Features Physical Port:
8 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
2 x 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

Power over Ethernet:
Complies with IEEE 802.3at Power over Ethernet Plus / end-span PSE
Up to 8 IEEE 802.3af / 802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE management features
- Total PoE power budget control
- Per port PoE function enable / disable
- PoE admin-mode control
- PoE port power feeding priority
- Per PoE port power limit
- PD classification detection
Intelligent PoE features
- Temperature threshold control
- PoE usage threshold control
- PD alive check
- PoE schedule

Industrial Case and Installation:
Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
IP30 metal case
Supports -40 to 75 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Dual power input design
- 48V~56V DC wide power input with polarity reverse protect function
- 3-pin terminal block or DC jack connector

Layer 2 Features:
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, and runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
- Broadcast / Multicast / Unicast
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- Voice VLAN
Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU Guard
Dimensions & Weight
Dimensions 5.51" x 7.09" x 0.96"
Weight 1.51 lbs.
Environmental
Temperature Operating Temperature: -40 ~ 75 degree Celsius
Storage Temperature: -40 ~ 85 degree Celsius
Humidity 5% - 95%, Non-condensing
