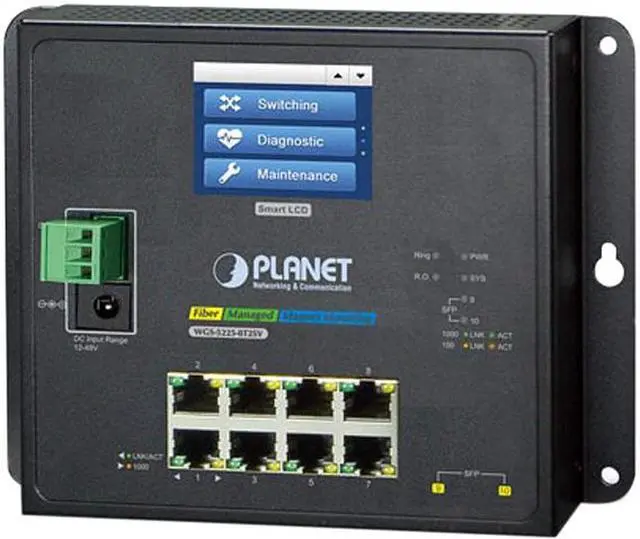

PLANET WGS-5225-8T2SV Industrial L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Wall-mount Managed Switch with LCD Touch Screen
- 8K MAC Address Table
- 4MB Buffer Memory
- Managed
+
+
Specs
Reviews
Learn more about the PLANET WGS-5225-8T2SV
| Brand | PLANET |
|---|---|
| Model | WGS-5225-8T2SV |
| Format | Wall Mountable |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP ITU-T G.8032 Ethernet Ring Protection Switching RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Network Management Type | Managed |
| Primary Ports | 8-Port 10/100/1000T 802.3at PoE 2-Port 100/1000X SFP |
|---|
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | Yes |
| Jumbo Frames | 9KB |
| Buffer Memory | 4MB |
|---|---|
| SNMP | Yes |
| QoS | Yes |
| Port Mirroring | Yes |
| Power | Power Requirements: Dual 12~48V DC Power Consumption: Max. 4.5 watts / 15.4 BTU (Power on without any connection) Max. 8.5 watts / 29.1 BTU (Full loading with Ethernet) |
| Dimensions | 5.51" x 7.09" x 0.96" |
|---|---|
| Weight | 1.51 lbs. |
| Temperature | Operating Temperature: -20 ~ 70 degree Celsius Storage Temperature: -40 ~ 85 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| First Listed on Newegg | December 28, 2018 |
|---|
