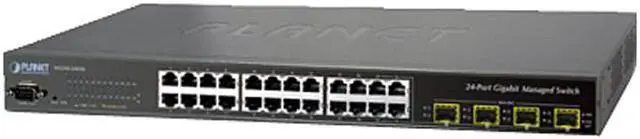

Planet WGSW-24040R L2+ 20-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Switch
- 8K MAC Address Table
- 1392KB Buffer Memory
- Managed
+
+
Specs
Reviews
Learn more about the PLANET WGSW-24040R
| Brand | PLANET |
|---|---|
| Model | WGSW-24040R |
| Network Management Type | Managed |
|---|
| Primary Ports | 24 x RJ45 + 4 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | 802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Jumbo Frames | 9000 bytes |
| Buffer Memory | 1392KB |
| Protocols | Spanning Tree Protocol: STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol Routing Protocols: IPv4 software static routing IPv6 software static routing |
|---|---|
| Security | Authentication: IEEE 802.1x port-based / MAC-based network access authentication Built-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication RADIUS / TACACS+ users access authentication Access Control List: IPv4 / IPv6 IP-based ACL MAC-based ACL Source MAC / IP address binding Port Security for Source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks Auto DoS rule to defend DoS attack IP address access management to prevent unauthorized intruder |
| QoS | Traffic classification based, strict priority and WRR 8-Level priority for switching Port Number 802.1p priority 802.1Q VLAN tag DSCP/ToS field in IP packet |
| LACP | Yes |
| Layer | 2+ |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| LEDs | Power, fan alert 10/100/1000 Link / Act per RJ45 port 100/1000 Link / Act per SFP port |
| Button | Reset Button: < 5 seconds: System reboot > 5 seconds: Factory default |
| Power | 48V DC at 0.6A, DC voltage range: 30 - 60V Max. 21.0 watts / 71.652 BTU |
|---|
| Dimensions | 1.75" x 17.32" x 7.87" |
|---|---|
| Weight | 6.30 lbs. |
| Temperature | 0 - 50 degrees Celsius -20 - 70 degrees Celsius |
|---|---|
| Humidity | 20% - 95%, Non-condensing |
| Features | Physical Port: 24-port 10/100/1000BASE-T RJ45 copper 4 100/1000BASE-X mini-GBIC/SFP slots , shared with port-21 to port-24 RS-232 DB9 console interface for basic management and setup Layer 2 Features: Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm control support Supports VLAN Supports Spanning Tree Protocol Supports Link Aggregation Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Layer 3 IP Routing Features: Supports maximum 32 software static routes and route summarization Multicast: Supports IGMP snooping v1, v2 and v3 for IPv4 multicasting network Supports MLD snooping v1 and v2 for IPv6 multicasting network Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration) Redundant Power System: 100 - 240V AC / 48V DC dual power redundancy Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience Management: IPv4 and IPv6 dual stack management Switch Management Interfaces User Privilege levels control System Maintenance Four RMON groups (history, statistics, alarms, and events) IPv6 IP Address / NTP / DNS management and ICMPv6 BOOTP and DHCP for IP address assignment DHCP Relay and DHCP Option82 NTP (Network Time Protocol) Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED Cable diagnostic technology provides the mechanism to detect and report potential cabling issues PLANET smart discovery utility for deploy management |
|---|
| First Listed on Newegg | December 28, 2018 |
|---|
