Works with Tripp Lite’s B126-Series transmitters to receive an HDMI signal via one Cat5e/6 cable and split it to 2 displays
Supports high-definition video resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound audio
Works with all operating systems and HDMI video sources
Plug and play—no software or drivers to install
+
+
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES: Connectivity Technology: WiredNumber of Output Devices Supported: 2Maximum Operating Distance: 200 ftGraphics Modes: Full HDMaximum Video Resolution: 1920 x 1080Network (RJ-45): YesHDMI Out: YesNumber of Network (RJ-45) Ports: 1Number of HDMI Outputs: 2Media Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6Color: BlackReceiver Height: 1"Receiver Width: 2.50"Receiver Depth: 3.60"Form Factor: Rack-mountable,Wall Mountable,Pole-mountablePackage Contents: HDMI Over Cat5 Active Extender 2-Port Remote UnitScrewdriver For Adjustment Of EqualizationMounting HardwareExternal Power Supply (Input: 100-240V)Environmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 1 Year
Learn more about the Tripp Lite B126-2A0
Model
Brand
Tripp Lite
Model
B126-2A0
Details
Type
HDMI over Ethernet
Max Extend Distance
200 feet
Features
Features
HDMI Receiver, splitting to 2 x HDMI outputs
For use with B126-002 and B126-004 transmitter units.
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
HDCP and 3D compatible.
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
Supports 24-bit True Color (8-bits per channel).
Can further expand the range and number of monitors by adding repeaters.
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 5 displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..
Features a built-in Equalization control for adjustment of the video image.
Compatible with all operating systems.
Plug and play; No drivers required.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Package Contents
Package Contents

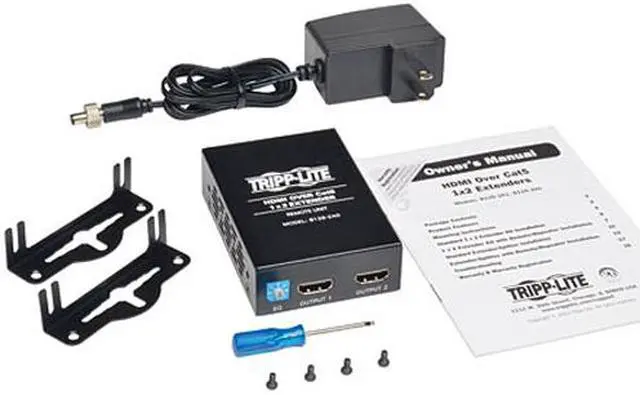

B126-1A0 HDMI Over Cat5 Active Extender Remote Unit Screwdriver for adjustment of Equalization Mounting hardware External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's manual
