Name: GLOTRENDS U3057 7-Port USB 3.0 Type-A 5Gbps PCIe Expansion Card for Intel, AMD, and ARM Platform, Compatible with Windows and Linux (Not Support Mac
Brand: GLOTRENDS
SKU: 37G-0075-00002
Price: 27985.10 KRW
Availability: InStock

GLOTRENDS U3057 7-Port USB 3.0 Type-A 5Gbps PCIe Expansion Card for Intel, AMD, and ARM Platform, Compatible with Windows and Linux (Not Support Mac OS)

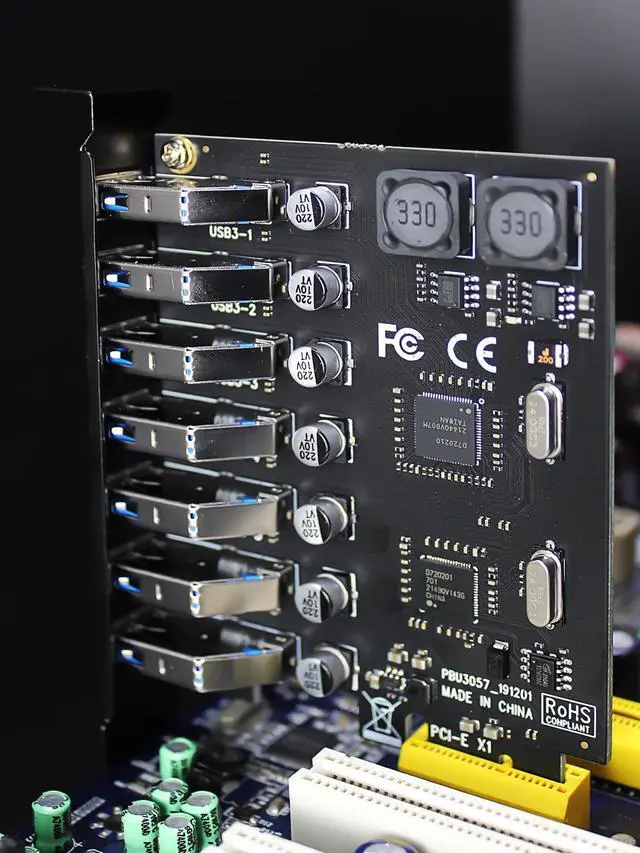

This 7-port USB 3.0 expansion card adds 7 Type-A ports to desktops, servers or NAS via a PCI-Express x1 slot. Powered by NEC720201+NEC720210, it is compatible with Intel, AMD and ARM platform, its 7 ports share 5Gbps of PCIe 2.0 X1 bandwidth.
With 2-group power management, each providing 5V3A (Type-A 1-4/Type-A 5-7), it can support 6 x 5V1A devices or 2 x 5V2A high-power ones like industrial cameras, VR systems and USB 3.0 NVME enclosures.
The biggest highlight is the use of high-frequency ceramic capacitors and solid-state capacitors in each USB port to ensure the stability of high-speed data transmission.
Plug and play on Windows 11,10,8 and Server 2012,2012R2,2016,2019,2022 and most Linux kernels. Driver is required for Windows XP,Vista,7 and Server 2003,2008,2008R2. (Note: Mac OS not supported)

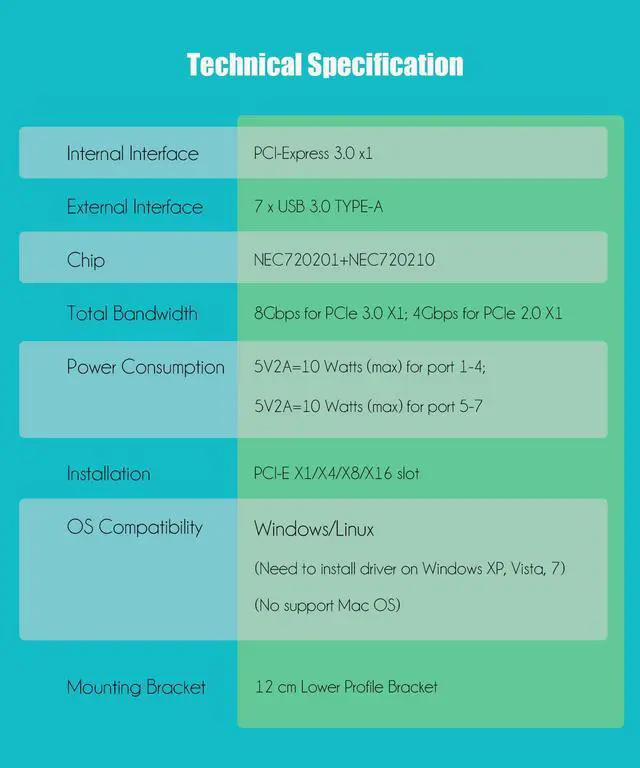

Model: U3057

Internal Interface	PCI-Express 3.0 x1
External Interface	7 x USB 3.0 TYPE-A
Chip	NEC720201+NEC720210
Power Consumption	5V2A=10 Watts (max) for port 1-4; 5V2A=10 Watts (max) for port 5-7
Total Bandwidth	8Gbps for PCIe 3.0 X1; 4Gbps for PCIe 2.0 X1
OS Compatibility	Windows/Linux/No support Mac OS ( Note: Need to install driver on Windows XP, Vista, 7 )
Mounting Bracket	12 cm Regular Profile Bracket

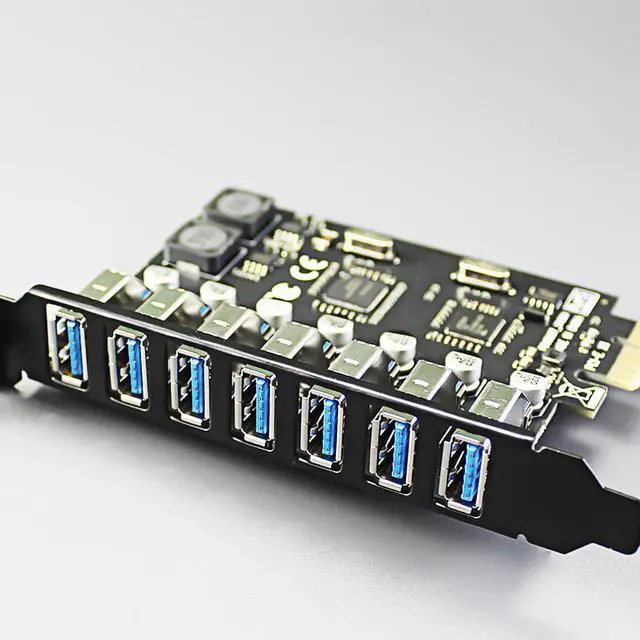

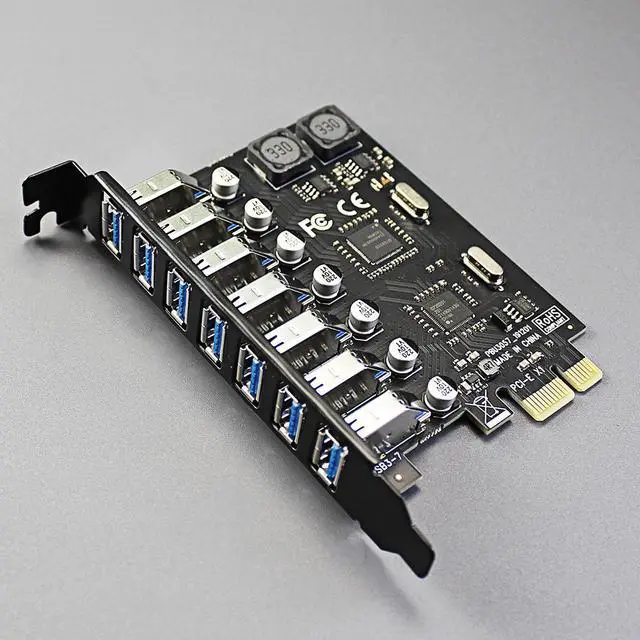

PCI-Express USB 3.0 Expansion Card with 7 x USB-A Ports

Add 7 x USB-A devices at the same time, such as Keyboard, Mice, Speakers, KVM switch, USB HUB, USB flash drives, Printers, and other High Power Consumption USB 3.0 devices, etc.
Based on NEC720201+NEC720210 chip solution: Plug and Play on Windows 11, 10, 8.x (32/64bit), Need to install the driver on Windows XP, Vista, 7 (32/64bit).
Plug and Play on most Linux kernels.
Not support Mac OS

Power Consumption

5V2A=10 Watts (max) power supply for port 1-4
And 5V2A=10 Watts (max) power supply for port 5-7
However, it's important to note that it does not support fast charging. The maximum charging capability per port is 5V/0.5A.

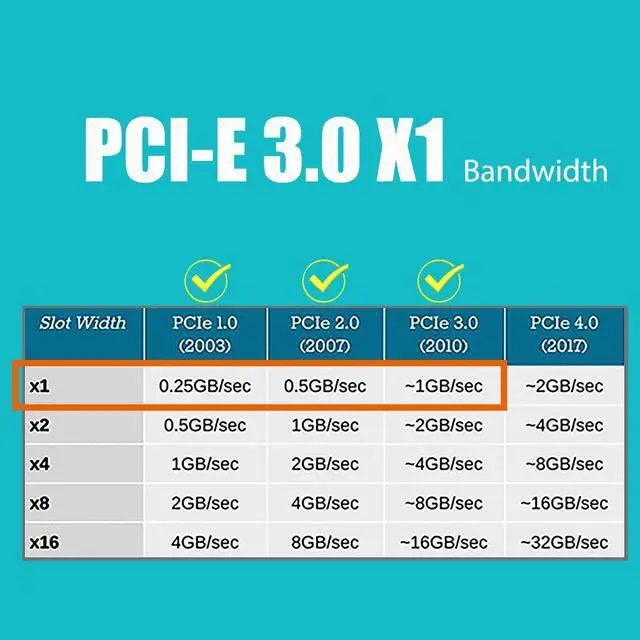

PCI-Express 3.0 X1 Bandwidth and PCI-Express X1 Slot installation

For PCIe 3.0 X1 slot, 7 x USB-A ports share 8Gbps bandwidth;
For PCIe 2.0 X1 slot, 7 x USB-A ports share 4Gbps bandwidth.

Package Including

1 x U3057 PCI-Express USB 3.0 Expansion Card

Products	U3023	U3044	U3055-N	U3057	U6A2C
Internal Interface	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X1
External Interface	2 x USB 3.0 Type-A	4 x USB 3.0 Type-A	2 x USB 3.0 Type-A + 19PIN USB	7 x USB 3.0 Type-A	6 x USB 3.0 Type-A + 2 x USB 3.0 Type-C
