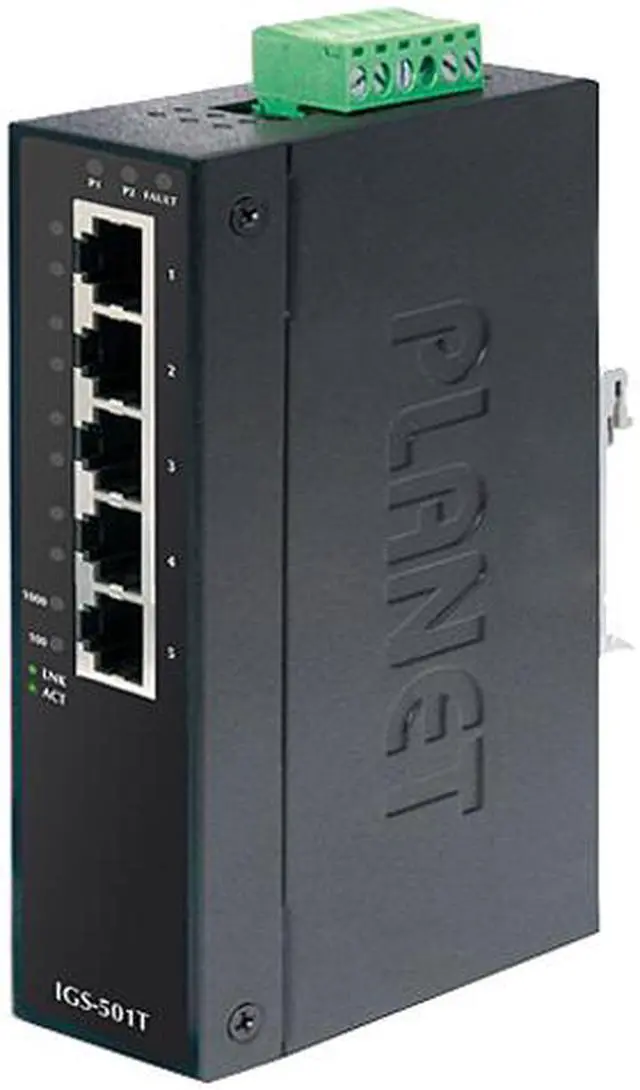

PLANET IGS-501T 5-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 Degrees C Operating Temperature)

5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
Supports auto-negotiation and 10/100 Mbps half / full duplex and 1000 Mbps full duplex mode
Backplane (switching fabric): 10 Gbps
1M bits on-chip buffer memory
IP30 metal case protection
DIN rail and wall mount design

Overview

Specs

Reviews

Physical Port 5-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function Layer 2 Features Complies with IEEE 802.3 10Base-T, IEEE 802.3 u 100Base-TX, IEEE 802.3 ab 1000Base-T Ethernet standard Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3 x PAUSE frame flow control (Full-Duplex)
Backplane (Switching Fabric): 10Gbps Integrated address look-up engine, support 8K absolute MAC addresses 136 kilobytes on-chip frame buffer 9K Jumbo packet size support Automatic address learning and address aging CSMA/CD Protocol Industrial Case / Installation IP-30 Metal case / Protection DIN Rail and Wall Mount Design 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power Supports EFT protection 6000 VDC for power line Supports 6000 VDC Ethernet ESD protection -40 to 75 Degree C operation temperature

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Format	Wall Mountable
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x full-duplex flow control
Network Management Type	Unmanaged

Primary Ports	5 x RJ45
Primary Port Speed	10/100/1000Mbps

MAC Address Table	2K
Switching Method	Store and Forward
Jumbo Frames	9KB

Buffer Memory	1M bits on-chip buffer memory
LEDs	3 x LED for system and power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault 2 x LED for each copper port Green: 1000 Mbps LNK / ACT Orange:10/100 Mbps LNK / ACT
Power	Power Requirements: 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support Power Consumption / Dissipation: 4.8 watts / 16 BTU (48V DC) 8.3 watts / 28 BTU (24V DC)

Dimensions	1.26" x 5.31" x 3.43"
Weight	0.88 lb.

PLANET IGS-501T 5-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 Degrees C Operating Temperature)

Learn more about the PLANET IGS-501T

Customer Reviews of the PLANET IGS-501T

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Temperature	Operating Temperature: -40 ~ 75 degree Celsius Storage Temperature: -40 ~ 75 degree Celsius
Humidity	Operating Humidity: 5% ~ 90% Storage Humidity: 5% ~ 90% non-condensing

Model
Brand	PLANET
Model	IGS-501T
