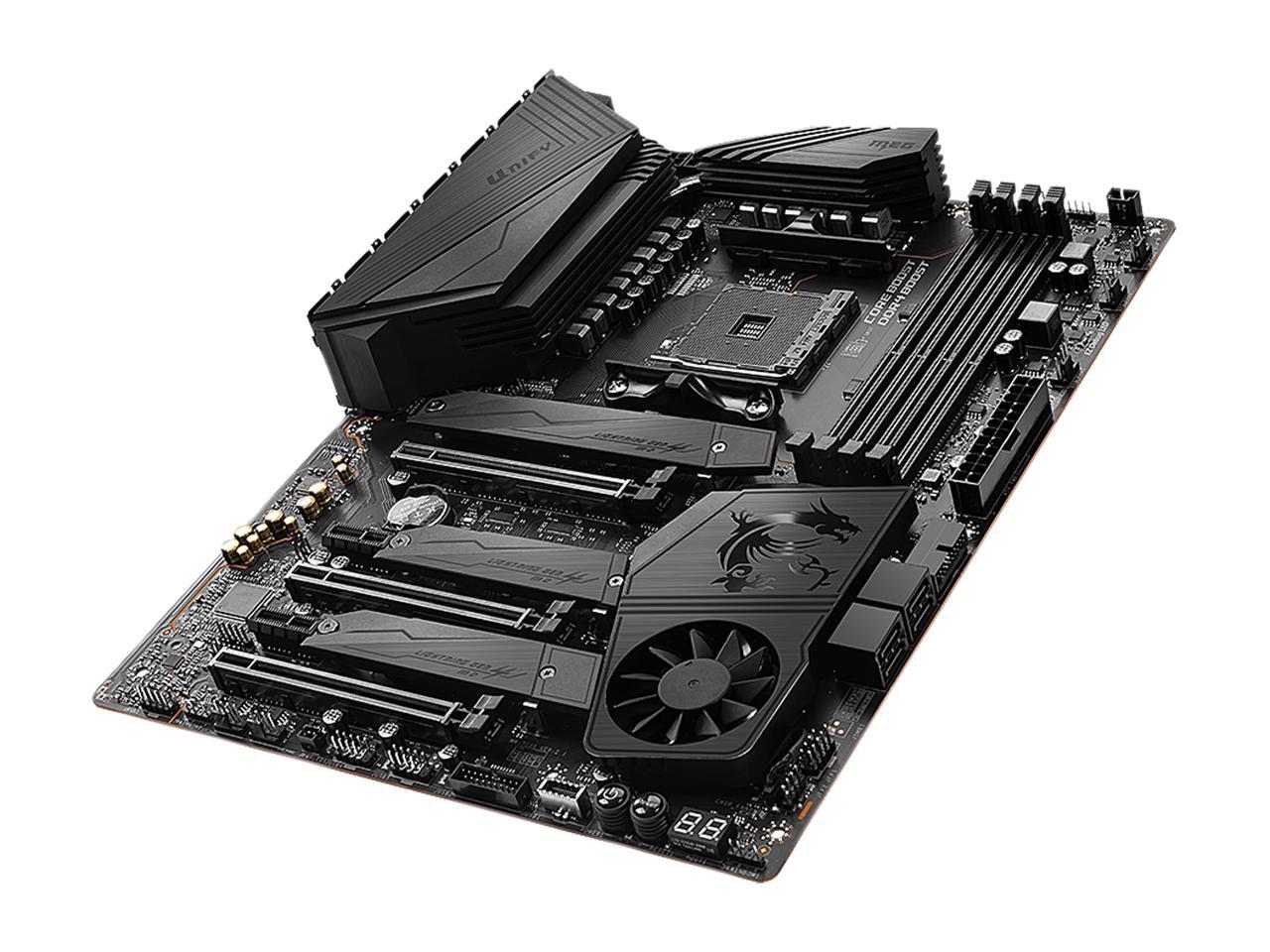

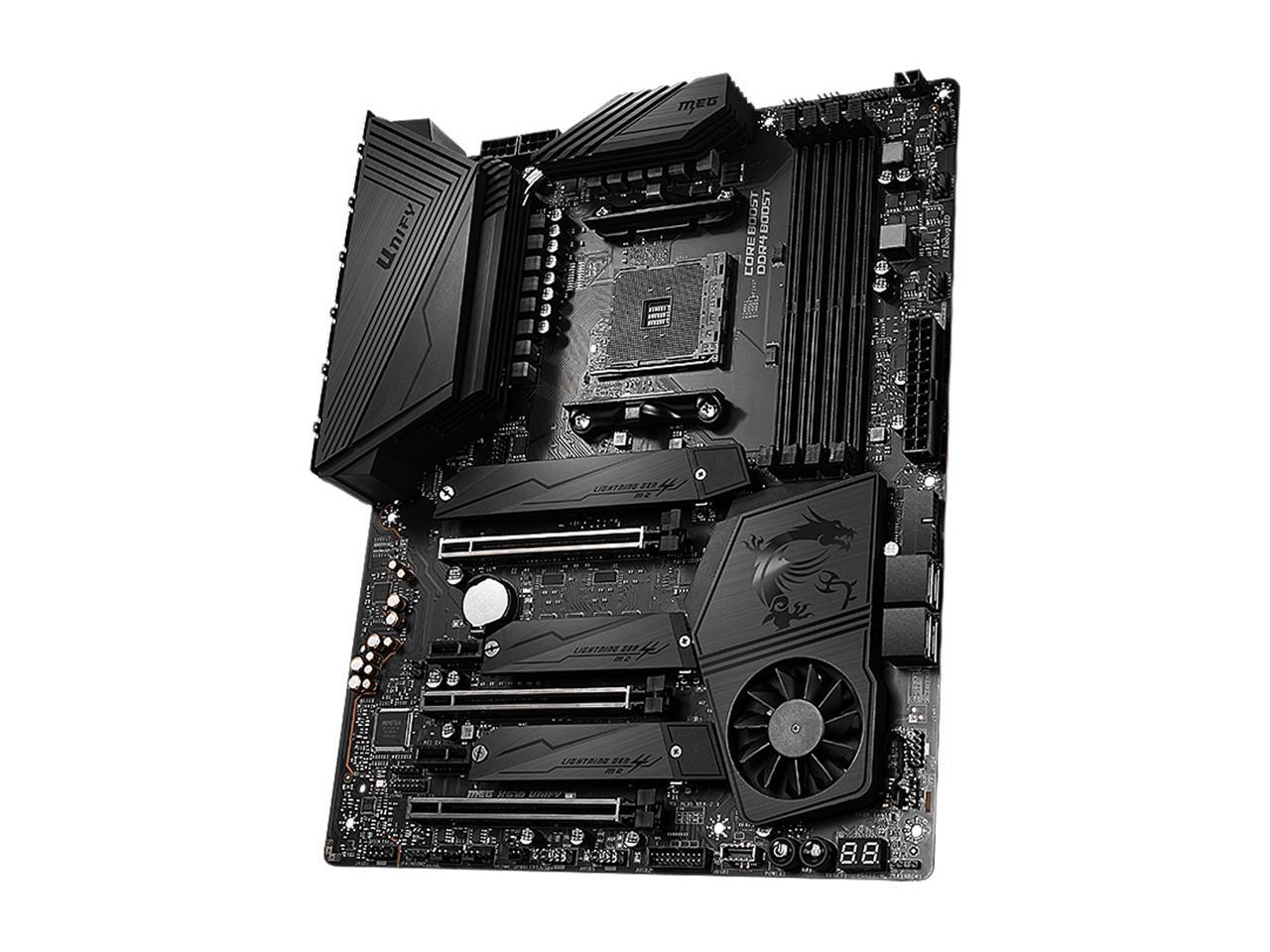

MSI MEG X570 UNIFY AM4 AMD X570 SATA 6Gb/s USB 3.0 ATX AMD Motherboard

(187)(12) Write a Review
See more "msi x570"
In stock. Limit 5 per customer.
Ships from United States.
  • MAG X570S TOMAHAWK MAX WIFI
  • MEG X570 UNIFY
  • MEG X570S UNIFY-X MAX
  • MEG X570S ACE MAX
  • MPG X570 GAMING EDGE WIFI
  • MPG X570 GAMING PLUS
  • MPG X570S CARBON EK X
  • MPG X570S CARBON MAX WIFI
  • MPG X570S EDGE MAX WIFI
  • X570-A PRO
  • AMD X570
  • Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
  • 3rd Gen AMD Ryzen Processors support DDR4 4600/ 4533/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
  • 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
+
+
Specs
Reviews

Learn more about the MSI MEG X570 UNIFY

Model
Brand MSI
Model MEG X570 UNIFY
Supported CPU
CPU Socket Type AM4
CPU Type Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard 3rd Gen AMD Ryzen Processors support DDR4 4600/ 4533/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 2 x PCIe 4.0/3.0 x16 slots (PCI_E1, PCI_E3)
- 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes
- 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes
- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode*
1 x PCIe 4.0/3.0 x16 slot (PCI_E5, supports x4 mode)

* PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen processors.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCIe 4.0/3.0 x1 slots*
* The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 2 x M.2 slots (M2_2/M2_3, Key M)*
- Support PCIe 4.0/3.0 x4 and SATA 6Gb/s
- Support 2242/2260/2280 storage devices

AMD Processor
1 x M.2 slot (M2_1, Key M)*
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
- Supports 2242/2260/2280/22110 storage devices

* The speeds may vary for different devices
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1-Channel High Definition Audio
Supports S/PDIF output
Onboard LAN
LAN Chipset Realtek RTL8125
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6 AX200
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4-5 GHz (160 MHz) up to 2.4 Gbps
- The Wireless module is pre-install in the M2_4 (Key-E) slot
Bluetooth Supports Bluetooth 5

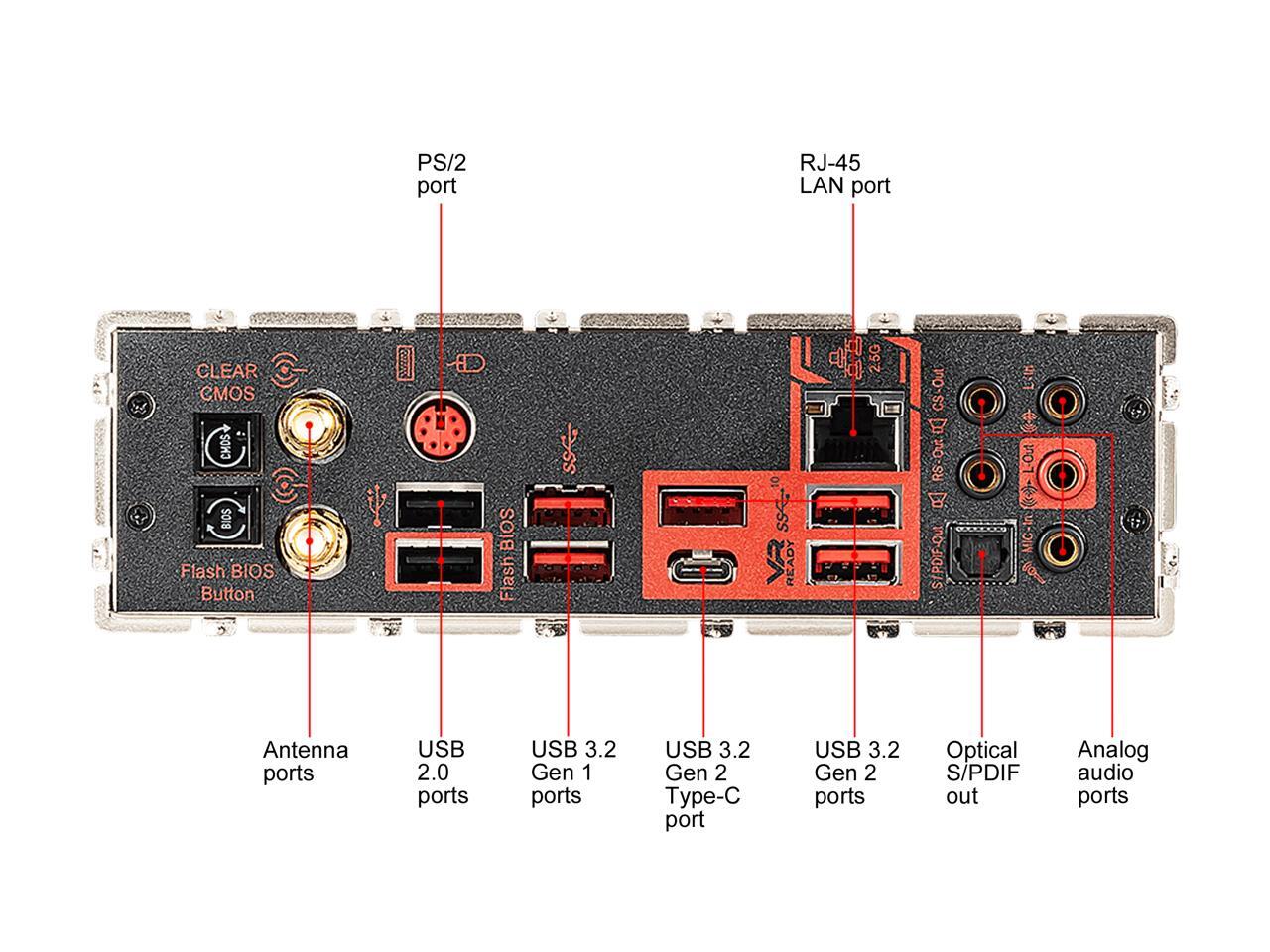

Rear Panel Ports
Back I/O Ports 1 x Clear CMOS Button
1 x Flash BIOS Button
1 x Wi-Fi/Bluetooth module
1 x PS/2 keyboard/mouse combo port
2 x USB 2.0 ports
2 x USB 3.2 Gen1 ports
1 x LAN (RJ45) ports
3 x USB 3.2 Gen 2 Type A ports
1 x USB 3.2 Gen 2 Type C port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector
USB 3.0 4 x USB 3.0
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1 x USB 3.2 Gen2 Type-C Port
Other Connectors 1 x 4-pin CPU fan connector
5 x 4-pin system fan connectors
1 x 4-pin water-pump connector
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
1 x Power button
1 x Reset button
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x 3-pin CORSAIR connector
1 x 2-pin LED power input
1 x Debug Code LED
4 x EZ Debug LEDs
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Windows 11 Compatibility
Windows 11 Supported
Features
Features Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket.

Supports DDR4 Memory, up to 4600+(OC) MHz.

Aluminum Cover with Extended Heatsink: All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.

Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.

2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.

Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.

Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
Additional Information
Date First Available November 01, 2019
