Radiate Your Cooling

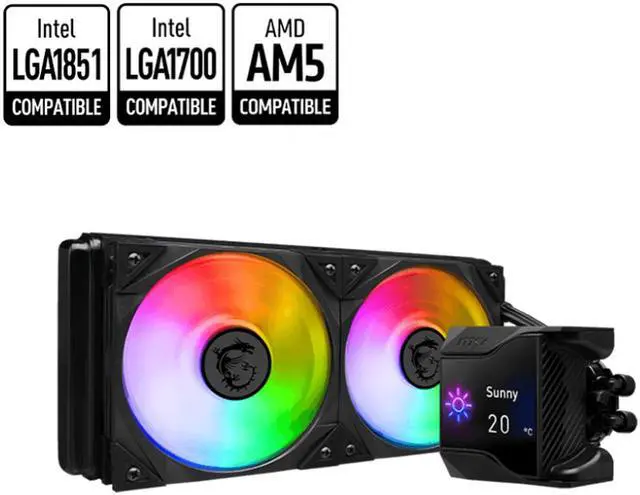

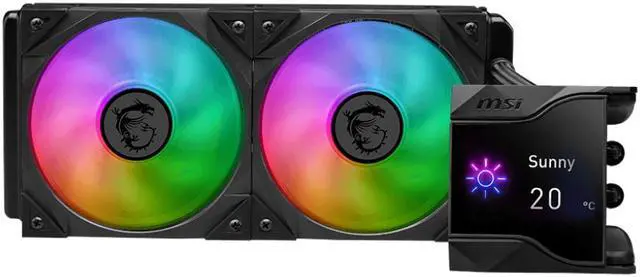

With its spectacular fully-customizable 2.4” IPS screen providing real-time performance monitoring, dual high-pressure TORX FAN 4.0 120 mm fans, and MSI CENTER software with Mystic Light ambient lighting, the MPG CORELIQUID D240 redefines what a CPU water cooling solution can be, both in terms of performance and aesthetics.

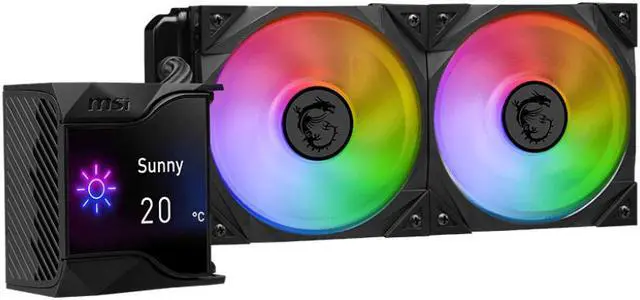

2.4" IPS Display
The pump block features a 2.4-inch IPS display (320 x 240 pixels, 18-bit color, 500 nits) protected by magnetically attached transparent cover.
Customizable modes include:
1. Hardware Monitor
2. Video / Images
3. System Clock
4. Live Weather
7th Gen Asetek Pump
The CPU waterblock features an Asetek 7th Generation pump (PWM controlled, 21.2 dBA, 50,000 hours life expectancy).
A circular milled copper cold plate with pre-applied thermal compound ensures excellent thermal conductivity.
60 mm VRM Fan
Concealed between the pump & IPS panel is a 60 mm downdraft fan that can be activated to cool the adjacent VRM, M.2 SSD slots, and surrounding components.
At lower temperatures, the VRM fan can be assigned to 0% RPM mode to ensure minimal noise.
Mystic Light Ready
MSI Mystic Light provides complete control of RGB lighting in one software package, including your RGB motherboard / graphics card and PC case lighting.
With other Mystic Light Sync compatible products, users can customize synchronous RGB PC's illumination with spectacular system-wide effects.
120 mm TORX FAN 4.0
Inspired by teamwork, MSI’s exclusive TORX FAN 4.0 features two fan blades working as one through its outer ring connector. The D240 radiator includes 2 fans. Technical data listed per fan:
- Speed/Noise: 0-2500 RPM / 39.9 dBA (max.)
- Airflow/Pressure: 77.4 CFM / 4.29 mmH2O
- Fan Type / Lighting : PWM / ARGB
- Dimensions: 120 x 120 x 25 mm
Independent Fan Control
MSI's exclusive MSI Center enables users to fully assign fan/pump profiles based on customized preferences or assigned modes:
- Balance
- Silent
- Game Mode
Evaporation-Proof Tubing
Water flows from pump block to the radiator via 90-degree articulated pump connectors and in/out 400 mm evaporation-proof tubing with triple-layered netted plastic & reinforced mesh sleeving.
Socket Compatibility
Intel Sockets:
- LGA 1700
- LGA 1200, 1156, 1155, 1151, 1150
AMD Sockets:
- AM5, AM4, TR4, sTRX4
