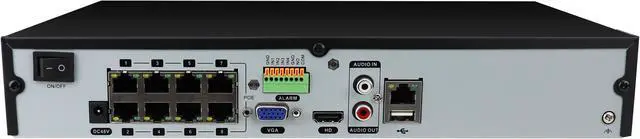

GW7808NP Ultra HD Onvif 4K NVR 8 Channel H.265 / H.264 Built-in PoE Ports, Compatible with 4K 8MP/5MP/4MP/3MP/2MP/1MP IP Cameras Support up to 24TB HDD Customizable Recording Smart GW7808NP NVR

GW 8 Channel 4K UltraHD NVR, HDMI at up to 4K, VGA at up to 1080P. 8 x POE RJ45 interfaces. H.265 / H.264 video formats. Recording resolution Up 8MP. Up to 8 POE RJ45 interfaces. All channel synchronous live view and playback by smart phone

Original
•All channel real-time synchronous playback
•Support IE, Chrome, Firefox, Safari, and browser plug-in free
•All channel synchronous live view and playback by smart phone

HD Input & Output
•H.265 / H.264 video formats
•Up to 8 8MP IP camera can be accessed
•HDMI at up to 4K, VGA at up to 1080P

HD Storage & Communication
•2 HDDs supported, Up to 12TB for each
•1 self-adaptive 10/100/1000M RJ45 interface
•Up to 8 POE RJ45 interfaces

Special
•Instant playback for assigned channel during multi-channel live view mode
•Smart search for selected area in the video, and smart playback to improve the efficiency
•Support HDD quota and group mode
•Support HDD hot swap


Specifications :
Video Encoding H.264/H.265
Recording Bandwidth 160Mbps
Internal HDD Slot 2 x SATA
NVR Poe 8 Port Built-in
Audio Support 8 Channel
Maximum HDD Capacity 24 TB (2x12TB)
Recording Resolution 12.0MP, 8.0MP(4K), 5.0MP, 4.0MP, 3.0MP, 2.0MP(1080P), 1.3MP(960P), 1.0MP(720P)
IP Video Input 8 IP Cameras
Live/Playback Performance 12.0 MP Up to 2 Channel Real-time, 8.0MP(4K) All Channel Real-time
Alarm Input/Out Yes
Display Resolution 3840 x 2160
Network Interface 10/100/1000M
RS485 1
Remote Software GWeye
e-Sata No
Line In 1CH RCA
USB X 2 USB 3.0
ONVIF 2.6
Power Supply Input 100~240V, 12V
Dimension 13.8" x 8.5" x 3"
