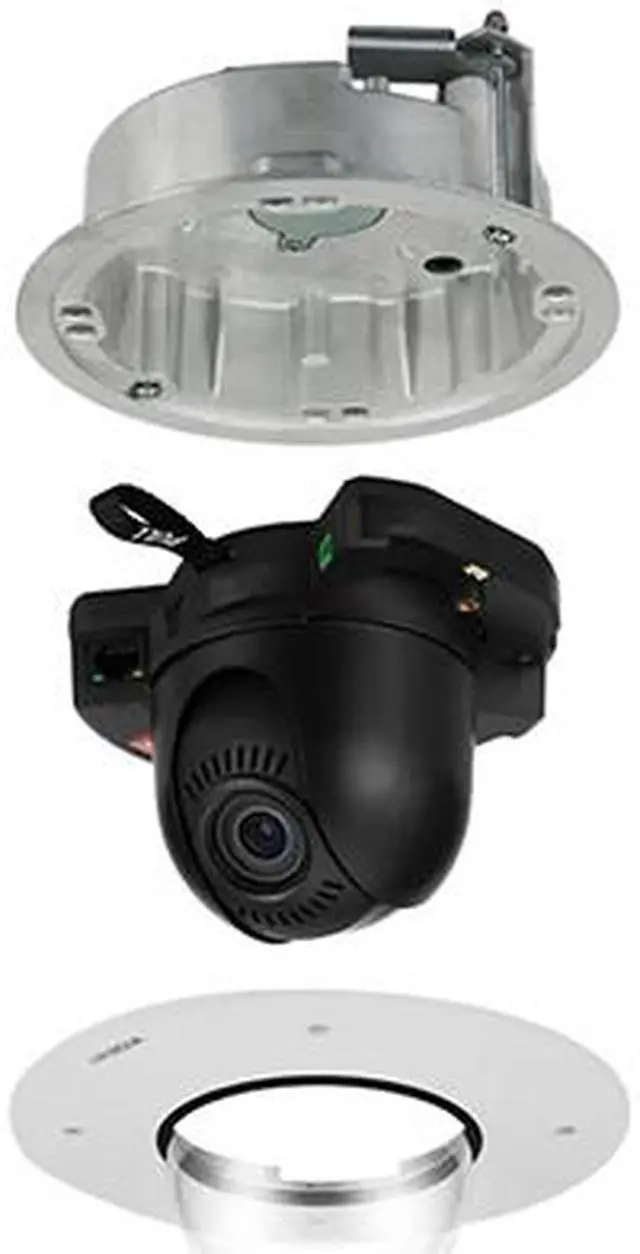

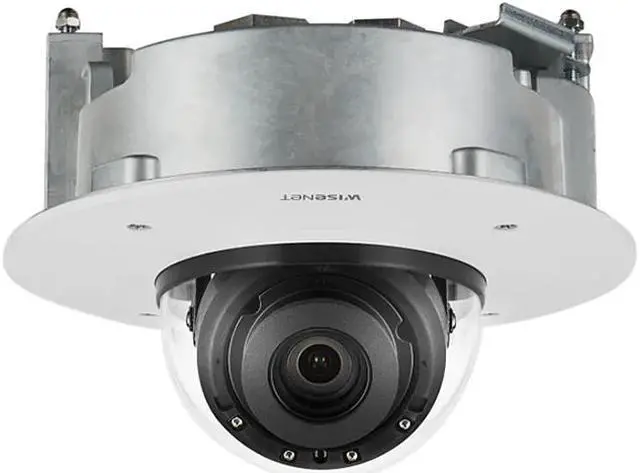

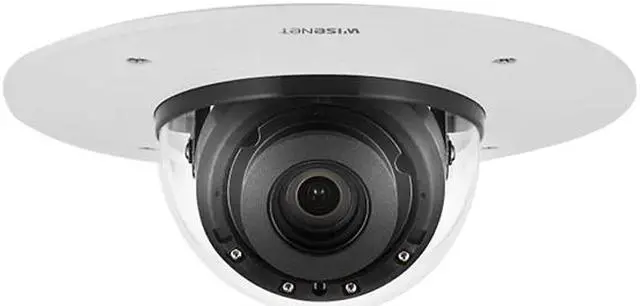

Hanwha Techwin XND-8082RF 3328x1872 MAX Resolution Metal shielded RJ-45(10/100/1000BASE-T) 6MP Flush Mount IR Network Dome Camera
- Dome Camera
- Metal shielded RJ-45(10/100/1000BASE-T)
- 3328x1872 MAX Resolution
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Hanwha Techwin XND-8082RF
| Brand | Hanwha Techwin |
|---|---|
| Model | XND-8082RF |
| Network Camera | Yes |
|---|---|
| Type | Dome Camera |
| Connection Type | Metal shielded RJ-45(10/100/1000BASE-T) |
| Color | White |
| Micro SD Slot | Micro SD/SDHC/SDXC 2slot 1TB(512GBx2) |
| Networking Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
|---|
| Pan/Tilt | Pan / Tilt / Rotate Range: 0°~360° / -45°~85° / 0°~355° |
|---|---|
| Sensor & Detector | 1/2.8" progressive CMOS |
| Pixels | 6 MP |
| MAX Resolution | 3328x1872 |
| Video Capture Resolution | 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Frame Rate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Lens Type | Focal Length (Zoom Ratio): 2.8~8.4mm(3x) motorized varifocal Max. Aperture Ratio: F1.2(Wide)~F2.8(Tele) Angular Field of View: H: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele) Min. Object Distance: 0.7m (2.23ft) Focus Control: Simple focus Lens Type: DC Auto Iris, P iris |
| Optical Zoom | 3x Optical Zoom |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM (Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery |
| Power over Ethernet | Yes |
|---|---|
| Power | Input Voltage: PoE(IEEE802.3af), 12VDC Power Consumption: PoE: Max 12.95W, typical 10.7W 12VDC: Max 11.5W, typical 9.0W Power redundancy failover |
| Humidity | Operating Humidity: 0 ~ 95% RH(non condensing) Storage Humidity: 0 ~ 90% RH |
|---|---|
| Temperature | Operating Temperature: -25°C ~ +60°C(-13°F ~ +140°F) Storage Temperature: -50°C ~ +60°C(-58°F ~ +140°F) |
| Dimension | Dia 8.07" x 6.42" |
|---|---|
| Weight | 4.29 lbs. |
| Features | 6MP (3328x1872) resolution 2.8~8.4mm (3x) motorized varifocal lens 131 foot IR viewable range for low light/no light monitoring 30fps@all resolutions (H.265/H.264) H.265, H.264, MJPEG codec supported, multiple streaming Day & Night (ICR), extremeWDR, Defog Shock detection, Loitering, Directional detection, Defocus detection, Fog detection, Face/Upper body detection, Audio detection, Digital auto tracking, Sound classification, Tampering Motion detection, Handover, Audio event playback Dual SD/SDHC/SDXC memory slots (Total maximum 512GB) Hallway view, WiseStream II support, IP52, plenum-rated LDC support (Lens Distortion Correction) PoE / 12V DC, Bi-directional audio support White camera cover to blend in with the ceiling 2 configurable I/O ports |
|---|
| First Listed on Newegg | May 27, 2022 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
