Is this card compatible with Windows 8.1?

I don't know if it is compatible with windows 8.1. I bought it only for a machine running windowsXP. You could do a search for this card and windows 8.1 drivers and see what comes up.

Does it work with mac?

Don't know, I bought this for a Linux computer.

I am trying to copy some old vhs tapes onto my PC. How well does this card work? All so, can I capture internet streaming video using this card?

You would probably be better off with a diferent card. This card does not handle audio at all. Further, if you are running Windows 7, it seems from other coments that this card just will not work. I seem to have some success using it on linux, but it's not a simple solution. As far as capturing streaming video, you'll need to use a software solution and not hardware.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

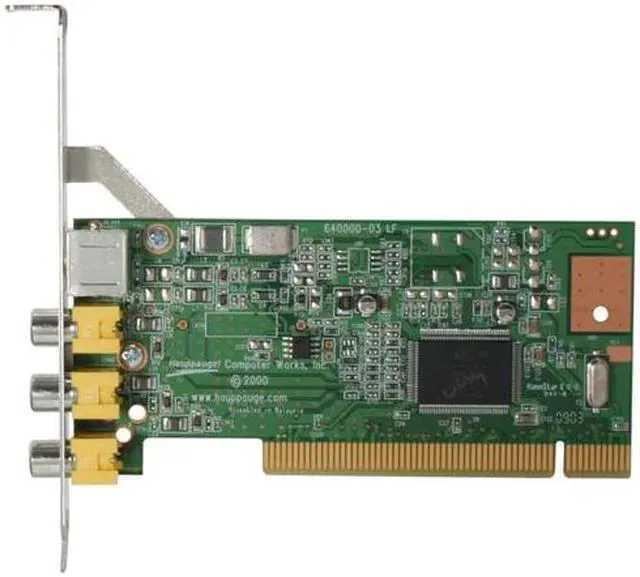

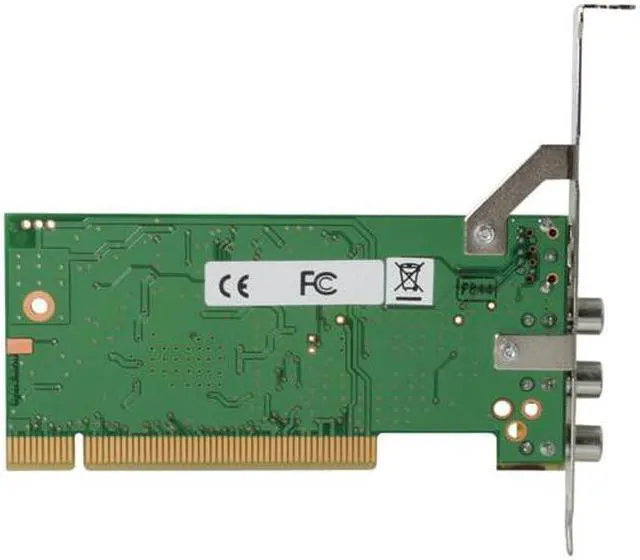

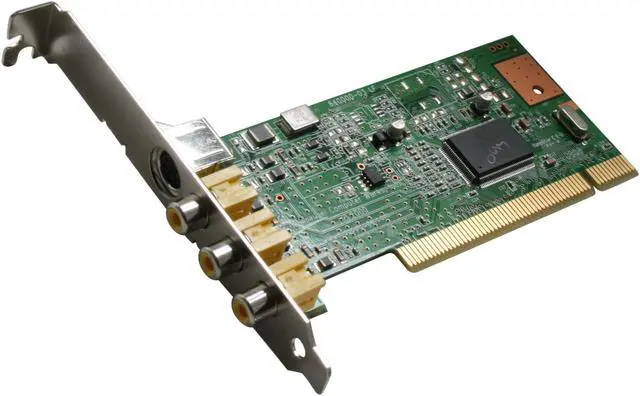

Main image of Hauppauge ImpactVCB Video Capture Card RCA connectors plus one S-Video/ PCI - OEM

Alt view image 2 of 5 - Hauppauge ImpactVCB Video Capture Card RCA connectors plus one S-Video/ PCI - OEM

Alt view image 3 of 5 - Hauppauge ImpactVCB Video Capture Card RCA connectors plus one S-Video/ PCI - OEM

Alt view image 4 of 5 - Hauppauge ImpactVCB Video Capture Card RCA connectors plus one S-Video/ PCI - OEM

Alt view image 5 of 5 - Hauppauge ImpactVCB Video Capture Card RCA connectors plus one S-Video/ PCI - OEM

Shop All Hauppauge Products

Hauppauge ImpactVCB Video Capture Card RCA connectors plus one S-Video/ PCI - OEM

(22) Write a Review

PCI Interface
3 x Composite video
1 x S-Video inputs

Overview

Specs

Reviews (22)

Any questions? Our AI beta will help you find out quickly.

Try me now

The Hauppauge 558 capture card is an ideal solution for transcoding analog video into digital format or capturing images from the desktop CCD camera. Featuring three composite and one S-Video input connector, the Hauppauge 558 can easily connect to a wide range of analog video sources and convert the video into digital format with its built-in digitizer, reach the speed of up to 30fps over the PCI bus.

Besides the capability of capturing motion video or still frame images, the Hauppauge 558 can also display live video from NTSC or PAL video sources in a resizable window on the PC screen. And thanks to the hardware processing, digitizing of the analog video signal and the resizing of the video image is performed by Hauppauge 558 without slowing downing CPU, providing maximum system performance.

ImpactVCB is a low cost family of video capture boards which can be used as the heart of a live video display, real time video capture, streaming video or video conferencing solution. Ideal for video capturing and video conversionConverts an analog video signal to digital formPlug and Play your video capturing device with the PC and go FunctionsVideo CapturingProduct LineImpactVCBProduct NameImpactVCB Video Capture CardProduct TypeVideo Capturing DeviceVideo SystemNTSCPALVideo FormatsS-VideoHost InterfacePCIPlatform SupportedPCManufacturer Part Number558

Digitize Your Analog Video CollectionThe Hauppauge 558 can easily capture your analog video source as motion video or still frame image with the same quality as original signal.

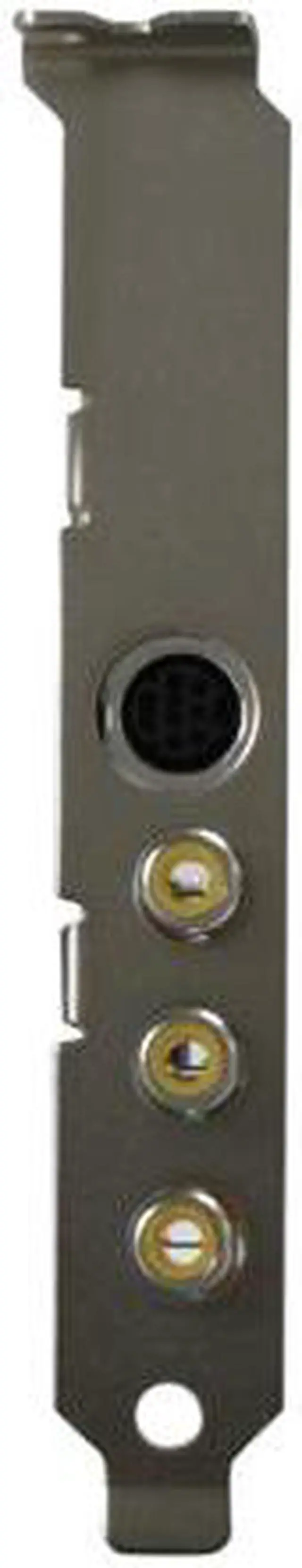

S-Video and Composite InputThe Hauppauge 558 features three composite video and one S-Video input connector to provide easy connection to a wide variety of video devices such as DVD players, VHS players and DVs.

Model
Brand	Hauppauge
Model	558

Details
Type	Video Capture & Editing

TV
TV Standards	No
Remote Control	No

Tuner
Interface	PCI
Low Profile Ready	Yes

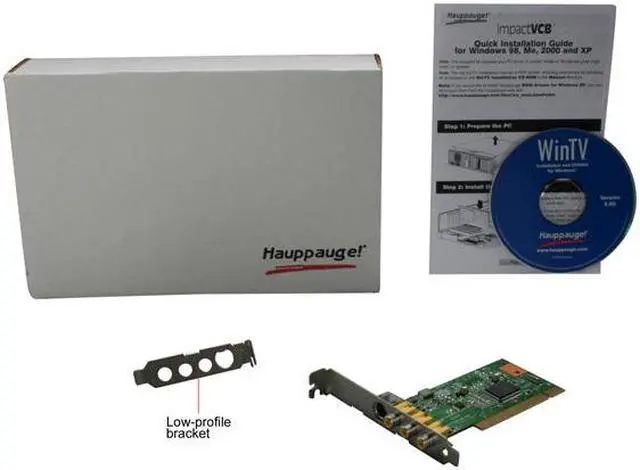

Low Profile Bracket Included	Yes
FM Tuner	No
Ports In	3 x Composite video 1 x S-Video inputs

System
Processor	All Pentium PCs
Graphics Card	All NVidea, 3DFX and ATI graphics cards with WINDOWS Direct Draw support
Available Slot	PCI slot
Operating Systems Supported	WindowsXP, WindowsME, Windows2000, Windows 95, Windows98, and Windows NT 4.0 with Service Pack 3

Features
Features	Video Capture Video from any analog source (composite or S-Video) can be captured as either still frame video images or motion video. Composite video inputs are provided as female RCA jacks, while S-Video uses standard 4-pin DIN connectors. The ImpactVCB comes with a VFW capture driver (Video for Windows)for Windows 95 and Windows NT, and a WDM driver for use with WindowsXP, Windows98SE, Windows Me and Windows 2000. Typical capture rates range from 15 to 30 fps depending on system configuration. Live Video Display The ImpactVCB can display live video from NTSC or PAL video sources in a resizable window on the PC screen. The digitizing of the analog video signal and the resizing of the video image is performed by hardware on the ImpactVCB, thereby not slowing down the CPU. After video is digitized and resized, the digitized video image is drawn by the ImpactVCB directly into the memory of the PC's VGA card. This uses a feature of Windows called Direct Draw, and the ImpactVCB can be used with most VGA cards which support Direct Draw 5 or higher. This technique is used on Windows95, Windows98, WindowsME, Windows2000 and WindowsNT 4.0

Additional Information
First Listed on Newegg	November 12, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
