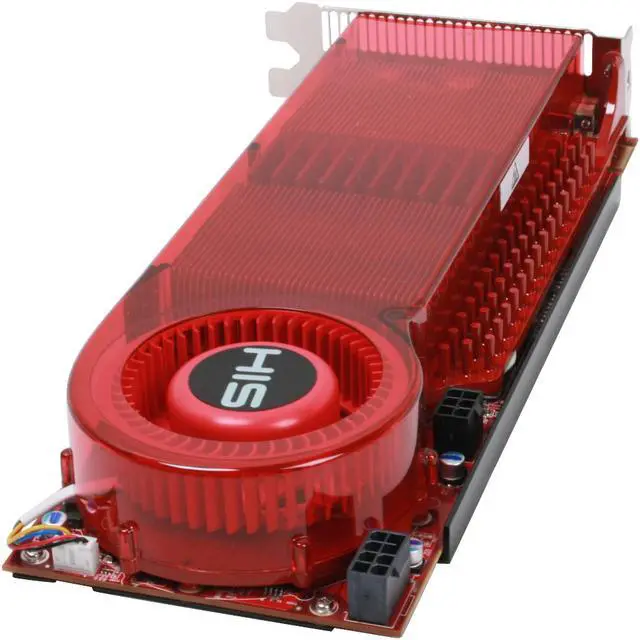

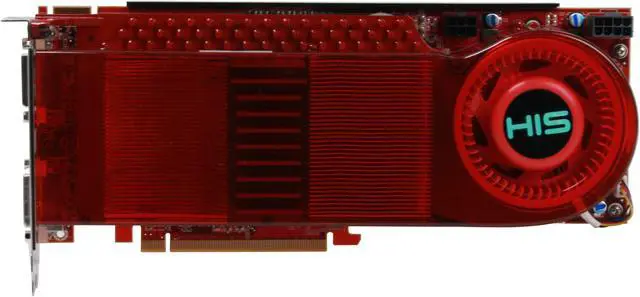

HIS Radeon HD 3870 X2 1GB (512MB x 2) GDDR3 PCI Express x16 CrossFireX Support Graphics Card H387X2F1GNP
- 1GB (512MB x 2) 512-bit (256-bit x 2) GDDR3
- Core Clock 825MHz
- 2 x DVI 1 x HDMI (via Adapter)
- 640 (320x2) Stream Processing Units
- PCI Express x16
Specs
Reviews (40)
Learn more about the Hightech Information System Ltd. H387X2F1GNP
| Brand | HIS |
|---|---|
| Model | H387X2F1GNP |
| Interface | PCI Express x16 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU | Radeon HD 3870 X2 |
| Core Clock | 825MHz |
| Stream Processors | 640 (320x2) Stream Processing Units |
| Effective Memory Clock | 1800 MHz |
|---|---|
| Memory Size | 1GB (512MB x 2) |
| Memory Interface | 512-bit (256-bit x 2) |
| Memory Type | GDDR3 |
| DirectX | DirectX 10.1 |
|---|---|
| OpenGL | OpenGL 2.0 |
| HDMI | 1 x HDMI (via Adapter) |
|---|---|

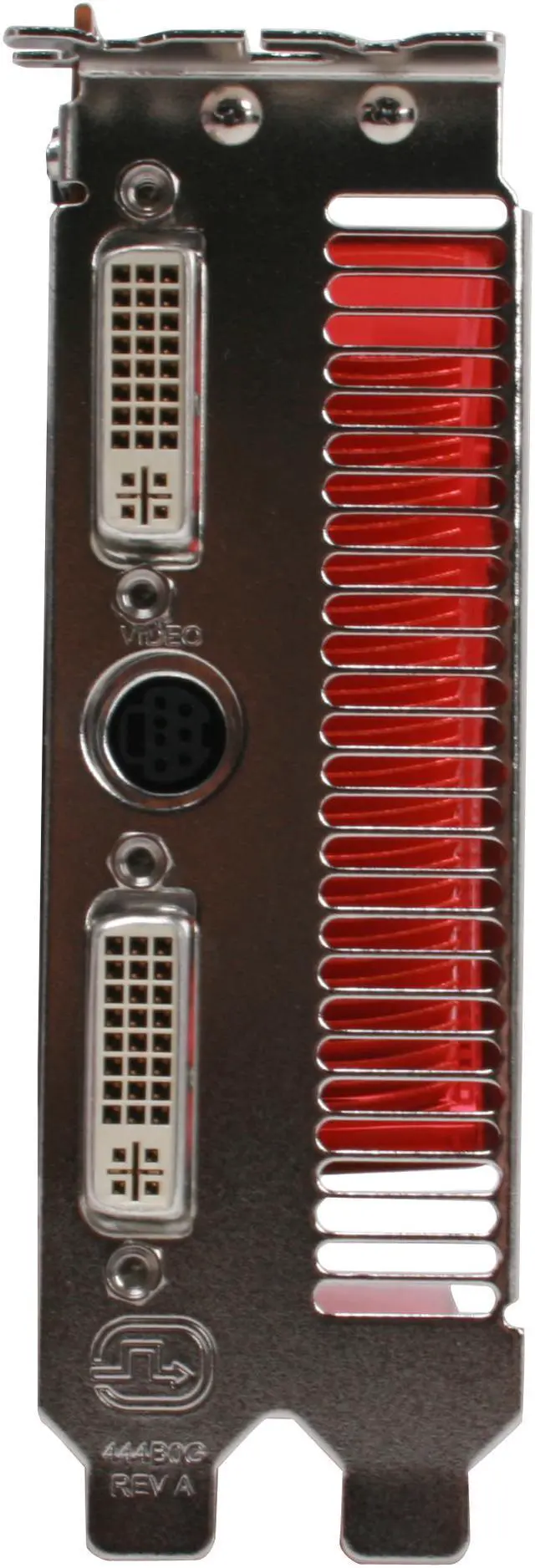

| DVI | 2 x DVI |
| TV-Out | HDTV / S-Video Out |
| RAMDAC | 400MHz |
|---|---|
| Max Resolution | 2560 x 1600 |
| RoHS Compliant | Yes |
| CrossFireX Support | Yes |
| Cooler | With Fan |
| Operating Systems Supported | Windows Vista/XP/MCE |
| System Requirements | PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 550 Watt or greater power supply with two 2x3-pin PCIe power connectors required (750 Watt and four 6- pin connectors for dual ATI CrossFireX) Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSU for a list of Certified products 1GB of system memory recommended Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive For a complete ATI CrossFireX system, a second ATI Radeon HD 3870X2 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per board (included) are required. |
| Power Connector | 1 x 6-Pin + 1 x 8-Pin |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Features | Over 1 TeraFLOPS of GPU Compute Power DirectX 10.1 / Shader Model 4.1 support Dynamic geometry acceleration Game physics processing capability ATI CrossFireX multi-GPU support for highly scalable performance Use up to four GPUs with an AMD 790FX based motherboard High-speed 128-bit HDR (High Dynamic Range) rendering Up to 24x Custom Filter Anti-Aliasing Built-in HDMI and 5.1 surround audio Support for the ATI Radeon DVI to HDMI adapter Unified Video Decoder (UVD) for Blu-ray and HD DVD ATI PowerPlay energy conserving technology 55nm process technology ATI Avivo HD is a technology platform |
|---|

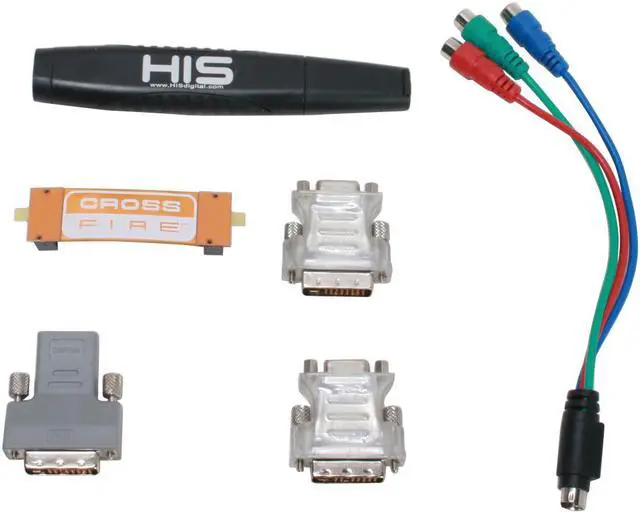

| Package Contents | H387X2F1GNP Driver Disk User Manual HDTV Cable DVI to VGA/D-sub Adapter DVI to HDMI Adapter ScrewDrive Screw Driver |
|---|
| First Listed on Newegg | January 27, 2008 |
|---|
