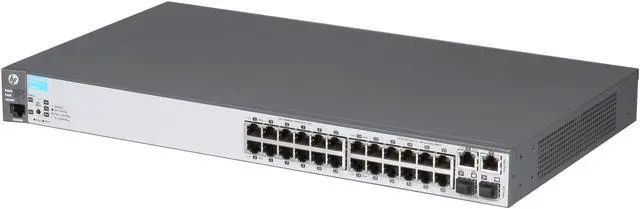

HPE Aruba 2620-24 Fixed 24 Port L2 Managed Fast Ethernet Switch (J9623A#ABA)

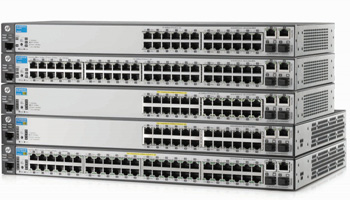

Aruba 2620 24 Switch Series

The Aruba 2620 Switch Series is a flexible, simple and cost-effective fast Ethernet switch solution, specially designed for enterprise edge, SMB, and branch office access layer deployments.

The Aruba 2620 Switch Series includes two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. It comes with support for external and redundant power supplies for improved network resiliency and quickly scaling of PoE+ devices. It has a robust Basic Layer 3 feature set which includes static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing. It’s simple to deploy, and offers unified management tools (such as Aruba ClearPass Policy Manager and Aruba Airwave) for easy management.

Power at the Edge

The Aruba 2620 Switch Series is designed with up to 370 W of internal PoE+ power and easily scales to 740 W with simple connection to EPS/RPS. A model with 128 W is ideal when you only need to power several PoE+ devices.

Optional redundant power with external RPS/EPS enhances network resiliency. Highly rated, 80 PLUS Silver Grade Power Supplies on the 2620-24-PoE+ and 2620-48-PoE+ switches conserve energy resources.

Increase performance with selectable queue configurations and associated memory buffering that meet your network application performance requirements.

Security and Quality of Service (QoS) You Can Rely on

The Aruba 2620 Switch Series includes security and (QoS) features to build a network that meets ever-changing corporate policies and compliances and helps protect your data from both inside and outside attacks.

The Aruba 2620 Switch Series supports flexible authentication options including standards based security protocols such as Local MAC, 802.1X, and MAC and Web for greater, policy-driven application security.

Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels that are mapped to eight queues.

Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Defend your IPv6 network with DHCPv6 Protection.

Single View of the Network

The Aruba 2620 Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

It supports Aruba Airwave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.

RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.
