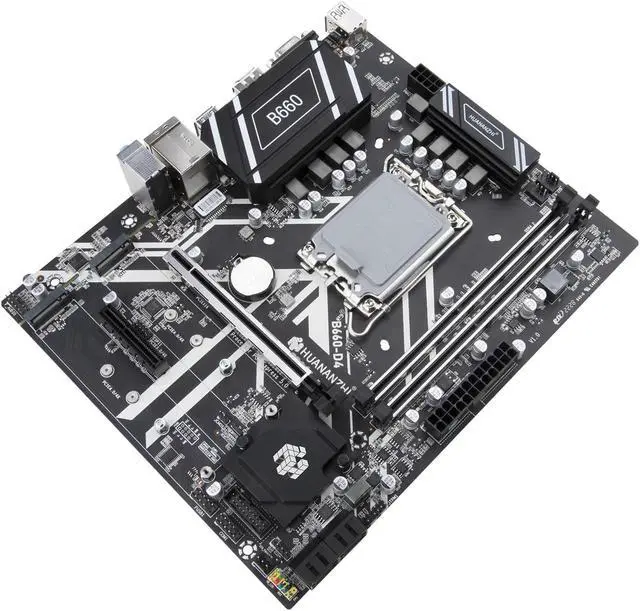

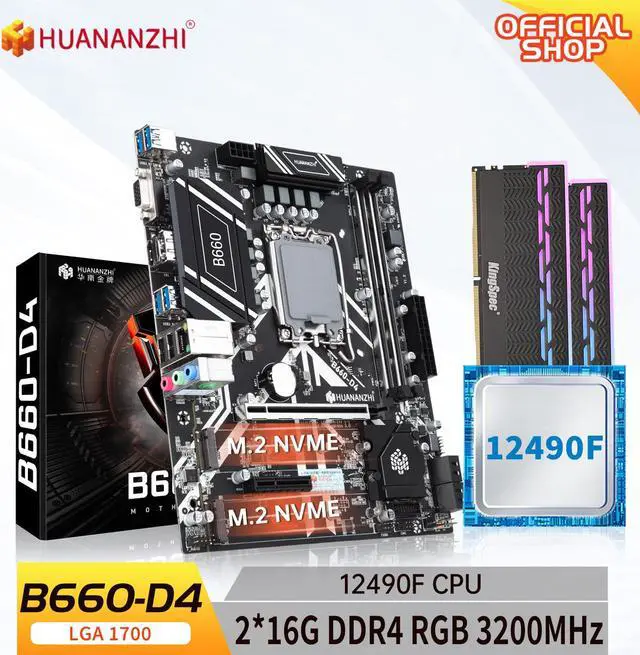

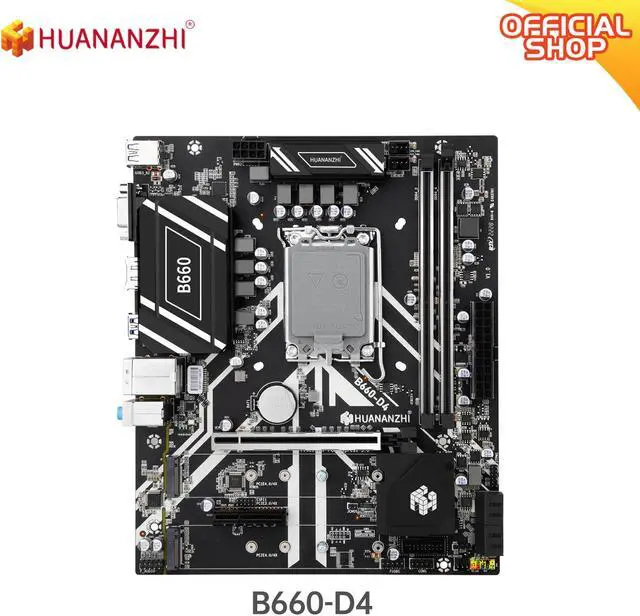

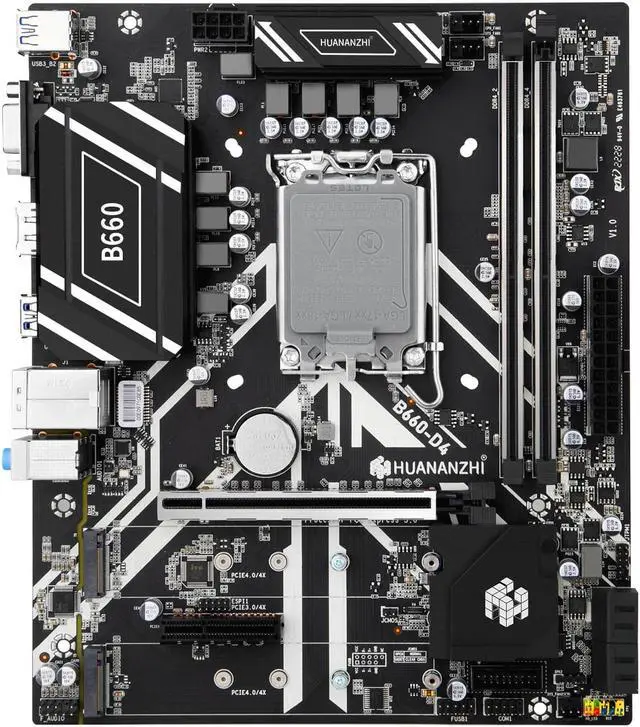

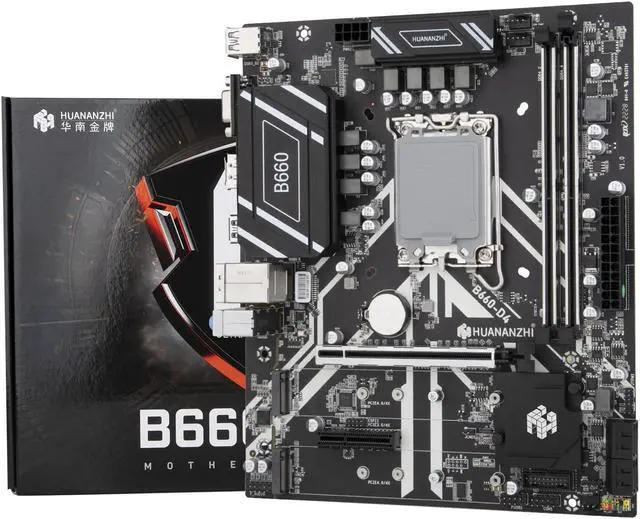

    HUANANZHI B660 D4 M-ATX Motherboard with Intel Core i5 12490F LGA 1700 with 2*16G DDR4 3200mhz NON ECC memory combo kit

    • Specifications:
    • Model:HUANANZHI B660-D4 Motherboard
    • CPU Socket:Supports Intel 12 processors LGA 1700 Processors
    • Memory Socket:2*DDR4 memory socket,Maximum Memory Capacity 64G
    • Memory Standard:Support Dual channel DDR4 3200/2933/2666/2400MHz
    • SATA Inderface:4 *SATA3.0 6Gbps interface

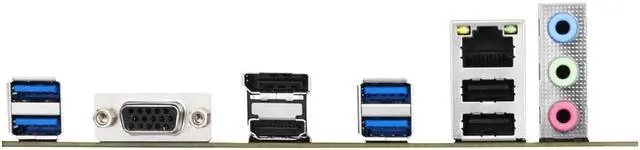

    • Extended Inderface:2 * M.2 22110 NVME PCIE X4 4.0;1 * VGA + HDMI-Compatible+DP ; 4 * USB3.2 Gen2x1;2 * USB2.0;1 *network interface
    • Expansion Slots:1 *PCI Express 5.0 x16 ;1 * PCI Express 3.0 x4
    • Soud Track:Realtek High Definition Audio
    • Network interface:Gigabit Ethernet
    • Power interface:24pin+8pin
    • Fan interface:1 *CPU_FAN + 2* SYS_FAN
    • PCB layer:4 layer PCB,8Phases power supply
    • Dimension:235*195MM M-ATX
    • Note: 1.The motherboard does not have integrated graphics, the cpu needs to support Core Graphics card, and the video output interface can be used.
    • 2.Without cooler Holder Base
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Specifications:


    Model:HUANANZHI B660-D4 Motherboard
    CPU Socket:Supports Intel 12 processors LGA 1700 Processors
    Memory Socket:2*DDR4 memory socket,Maximum Memory Capacity 64G
    Memory Standard:Support Dual channel DDR4 3200/2933/2666/2400MHz
    SATA Inderface:4
    *SATA3.0 6Gbps interface
    Extended Inderface:2 * M.2 22110 NVME PCIE X4 4.0;1 * VGA + HDMI-Compatible+DP ; 4 * USB3.2 Gen2x1;2 * USB2.0;1 *network interface
    Expansion Slots:1 *PCI Express 5.0 x16 ;1 * PCI Express 3.0 x4
    Soud Track:Realtek
    High Definition Audio
    Network interface:Gigabit Ethernet
    Power interface:24pin+8pin
    Fan interface:1 *CPU_FAN + 2* SYS_FAN
    PCB layer:4 layer PCB,8Phases power supply
    Dimension:235*195MM M-ATX

    Note: 1.The motherboard does not have
    integrated graphics, the cpu needs to support Core Graphics card, and the video output interface can be used.

    2.Without cooler Holder Base




    CPU:


    Processor Series: Core i5 12490F (6 cores/12 threads)
    Main frequency: 3.0GHz
    Socket type: LGA 1700
    3rd level cache: 20MB
    Technology: 10nm
    Power consumption: 117W
    Note:
    1: All CPU are strictly tested before shipping,condition good,
    1 year warranty




    Memory:


    Type: NON ECC RAM
    Frequency: DDR4 3200MHz
    Capacity: 32G (2*16G)
    Note:
    Memory is new, 3 year warranty




    Note:


    1:Please allow 1-3mm differs due to manual measurement.
    2:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
    3:The battery in motherboard photos will be removed
    before shipping, as battery is forbidden at CN post and custom.


    Note:


    Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase.
    if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
