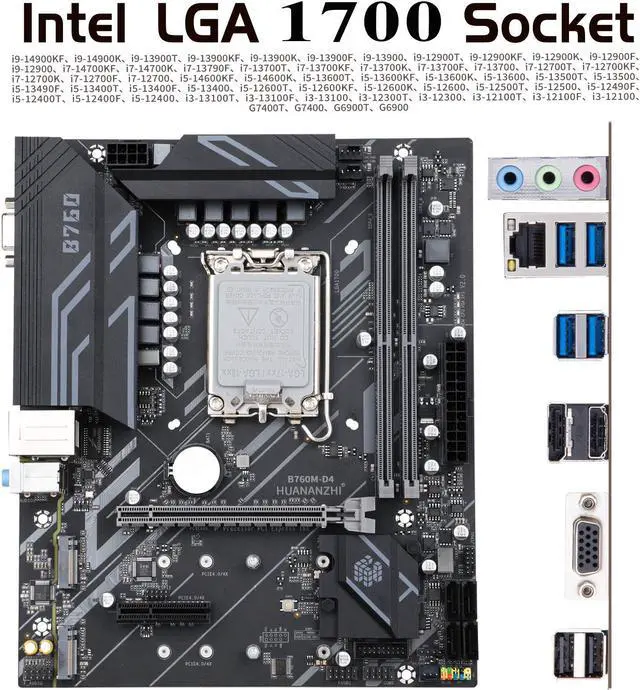

Powerful Features in Compact Form: The HUANANZHI B760M-D4 Motherboard, despite its M-ATX size (235*195MM), boasts a spectrum of high-end features. Sporting the Intel B760 chipset and supporting the latest Intel LGA1700 processors, it's primed for power and efficiency. Optimized Memory and Storage: With support for dual-channel DDR4 memory up to 64GB at speeds of 3200/2666/2400/2133MHz and four SATA 3.0 6Gbps interfaces, this motherboard caters to demanding tasks, ensuring smooth multitasking and storage flexibility. Expanded Connectivity and Speed: Equipped with forward-thinking expansion options, such as a PCI Expressx16 4.0 slot, PCI Expressx4 4.0 slot, and two M. 2 22110 NVME PCIE X4 4.0 interfaces, users can benefit from lightning-fast data transfer rates and improved system responsiveness. Enhanced Audio and Networking: Its Realtek High Fidelity Audio and Gigabit Network Card ensure superior sound quality and reliable networking capabilities, delivering an immersive audio experience and stable network connectivity. Efficient Power Delivery and Cooling: Featuring a 10-phase power supply and several FAN PINs (1xCPU_FAN, 2xSYS_FAN), this motherboard is optimized for stable performance under heavy workloads while maintaining efficient cooling. Comprehensive Rear and Front Panel Options: The rear panel offers a well-rounded selection of interfaces, including USB 3.2 Gen2 10Gb/s, USB 2.0, VGA, HDMI 2.1, DP 1.4, network card interface, and 3-hole audio interface. Additionally, the front panel includes USB 2.0, USB 3.2 Gen1, front audio, COM, and Debug pins, ensuring diverse connectivity for various peripherals and devices.
Specifications:

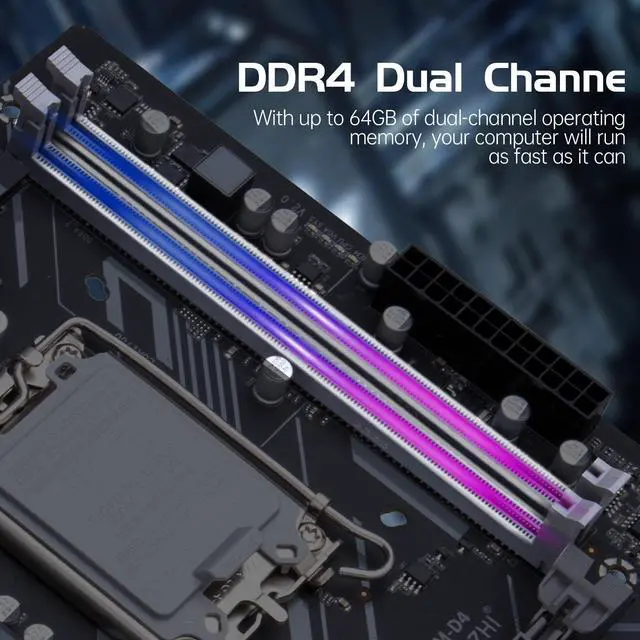

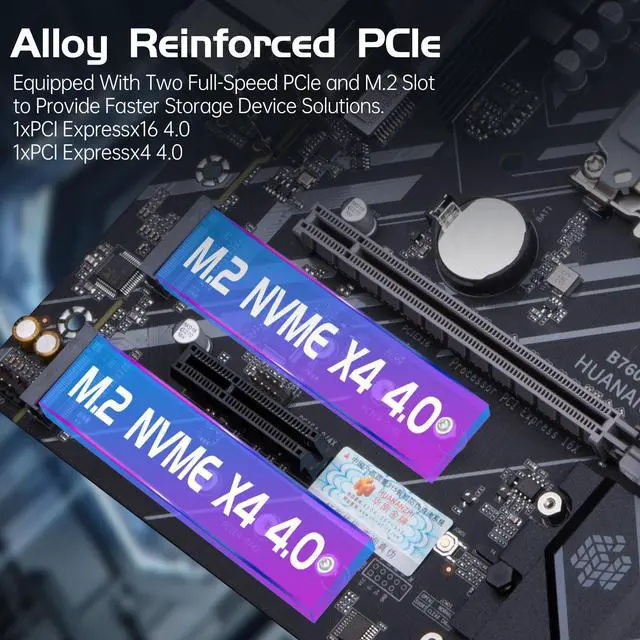

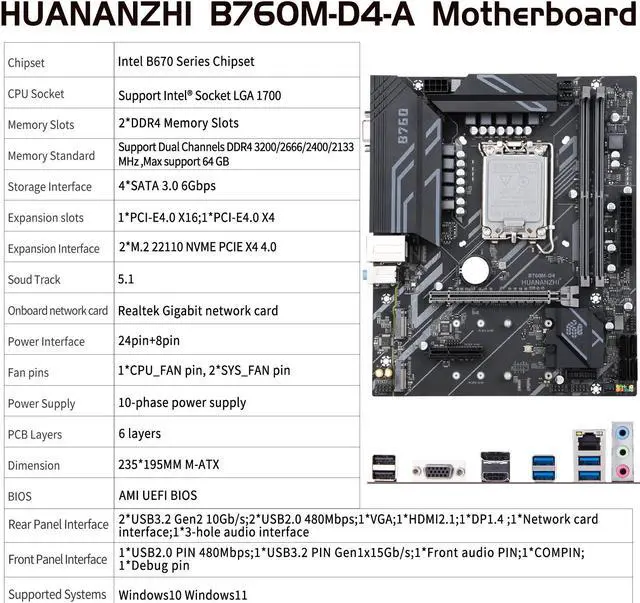

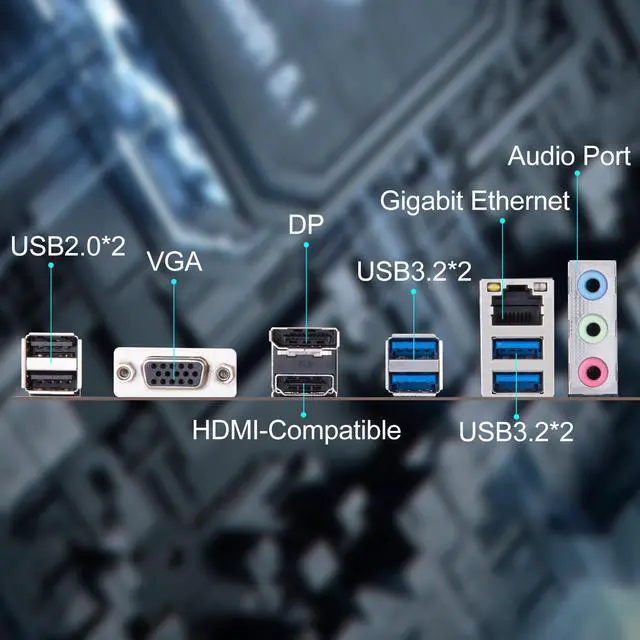

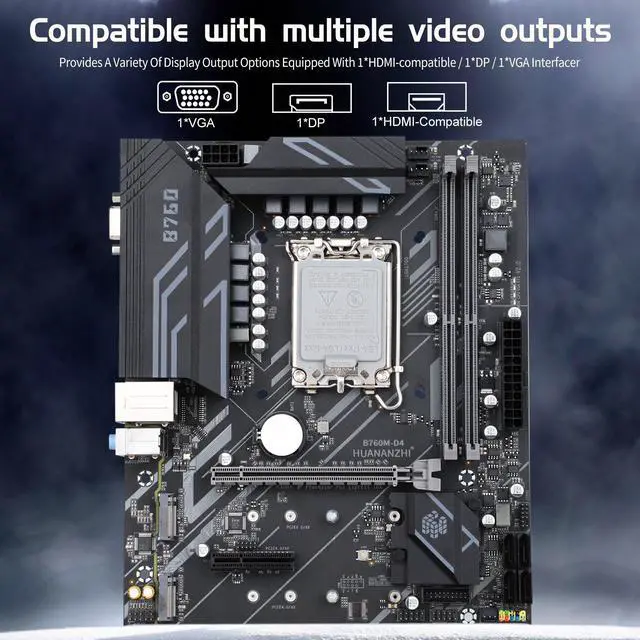

Model:HUANANZHI B760M-D4 Motherboard Main chipset:Intel B760 CPU Socket:Support Intel LGA1700 Memory slot:2 x DDR4 memory slot Memory standard:Support Dual channels DDR4 3200/2666/2400/2133MHz(Supports XMP overclocking/CPU dependent),Max support 64GB Storage interface:4xSATA3.0 6Gbps interfaces Expansion Slots:1xPCI Expressx16 4.0,1xPCI Expressx4 4.0 Expansion interface:2xM.2 22110 NVME PCIE X4 4.0 Soud Track:Realtek High Fidelity Audio Network Card:Realtek Gigabit Network Card Power interface:24pin+8pin FAN PIN:1xCPU_FAN PIN,2xSYS_FAN PIN power supply:10-phase power supply PCB layers:6-layer PCB Dimension:235*195MM M-ATX Rear panel interface:2xUSB3.2 Gen2 10Gb/s,2xUSB2.0 480Mbps,1xVGA,1xHDMI2.1,1xDP1.4 ,1x Network card interface,1x3-hole audio interface Front panel interface:1 x USB2.0 PIN 480Mbps,1 x USB3.2 PIN Gen1x15Gb/s,1 x Front audio PIN,1 xCOMPIN,1x Debug pin Support system:Windows10 Windows11 BIOS:AMI UEFI BIOS
Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
Learn more about the HUANANZHI B760-D4
Model
Brand
HUANANZHI
Series
B760
Model
B760-D4
Supported CPU
CPU Socket Type
LGA 1700
CPU Type
Intel Core 13th Gen (LGA 1700)
Chipsets
Chipset
Intel B760
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 3200
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 4.0 x16
1 x PCI Express 4.0 x16
PCI Express x4
1 x PCI Express x4
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
2 x M.2 (Support PCIe 4.0 x4)
Rear Panel Ports
HDMI
1 x HDMI
DisplayPort
1 x DisplayPort
USB 3.1
4 x USB 3.1
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports
Software Feature
Windows 11
Supported
Physical Spec
Form Factor
Micro ATX
LED Lighting
None RGB
Dimensions (W x L)
19.5×23.5
Power Pin
24 Pin
Packaging
Package Contents
1 motherboard+1 SATA hard disk data cable+1 product warranty card+1 motherboard blank
Additional Information
Date First Available
November 09, 2023
