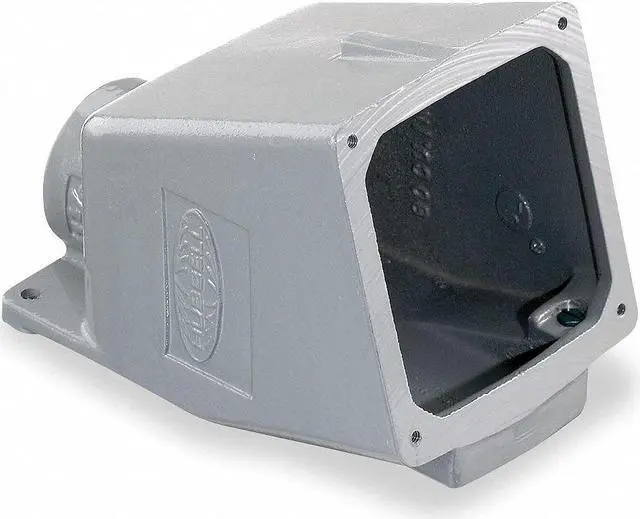

HUBBELL WIRING DEVICE-KELLEMS BB201W Angl Back Box,20/30A,3/4"Hub,15,Metllic

The HUBBELL Angl Back Box is a metallic back box designed for use with IEC 309 Pin and Sleeve devices, specifically rated for 20A and 30A applications. Constructed from cast aluminum, this enclosure includes wiring space and is compatible with grounding to metallic conduit. It features a 15-degree angled design with a feed-through configuration and accepts one device via a single 3/4" NPT hub entry.

Key Features of the HUBBELL Angl Back Box:

• Current Rating: Suitable for use with devices rated at 20 or 30 amps.


• Box Angle: Designed with a 15-degree angle for specific installation requirements.


• Material: Cast aluminum construction offers durability in demanding environments.


• Cable Entry: Through-hub cable entry via a dead-end, single 3/4" NPT hub.


• Mount Type: Surface mount configuration; includes mounting screws for installation.


• NEMA Enclosure Rating: Rated as NEMA 4X; IP54


• Standards Compliance: Meets UL Raintight and External Icing Test standards.


• Compatibility: For use with Twist-Lock(R) series pin & sleeve receptacles (IEC type), compatible with device sizes from 16 to 32 amps as specified by display size attribute.
