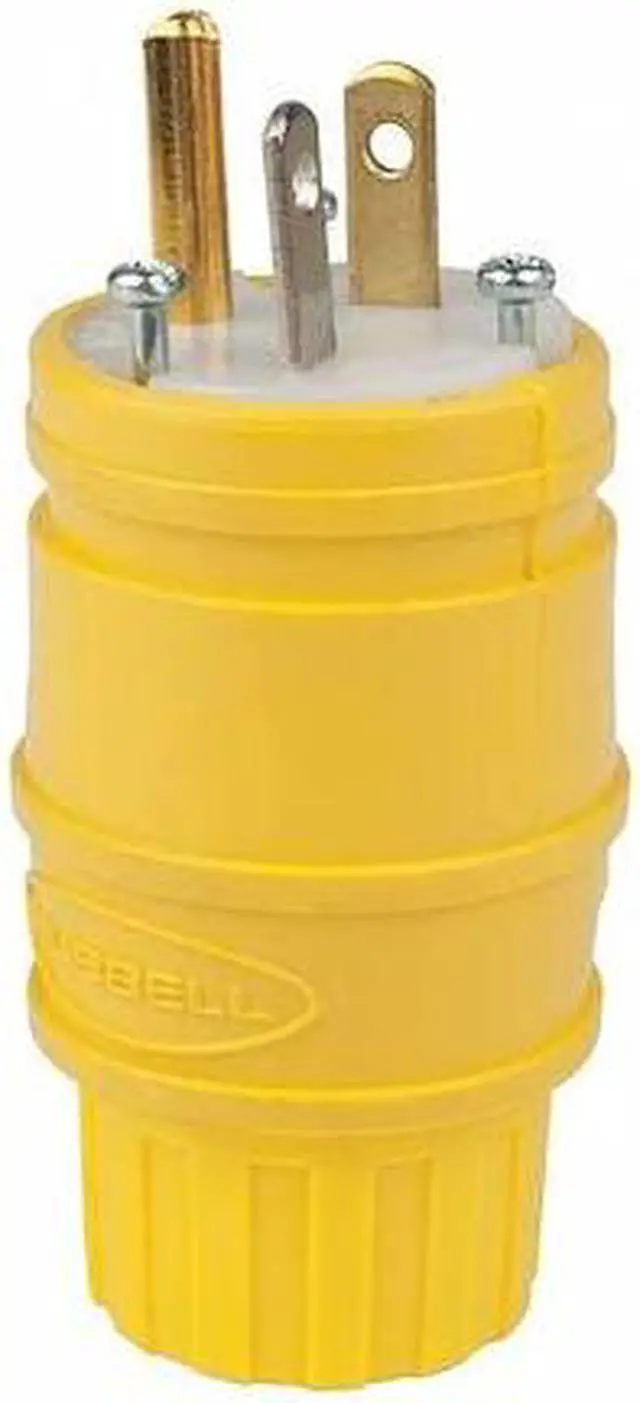

HUBBELL WIRING DEVICE-KELLEMS HBL14W33 Watertight Straight Blade Plug, 5-20P,

The HUBBELL 3 Wire Watertight Straight Blade Plug is a Plug rated IP55 for use in environments where moisture or contaminants may be present. Rated for 20A at 125VAC, this plug features a thermoplastic elastomer housing with a weatherproofing shroud intended to cover the connection between the plug and connector. A nylon compression nut that provides additional resistance to water and dust ingress around the cord helps prevent water and dust ingress around the cord, making it suitable for use where moisture or contaminants may be present.

Key Features of the HUBBELL 3 Wire Watertight Straight Blade Plug:

• Amperage/Voltage: Rated for 20A, 125V AC


• NEMA Configuration: 5-20P, straight blade design


• Watertight Construction: IP55 rated with corrosion-resistant materials


• Housing Material: Thermoplastic elastomer body with polycarbonate components


• Cord Accommodation: Accepts cords from 0.300 in to 0.655 in diameter (#18 AWG to #12 AWG wire size)


• Connection Type: Screw terminals; grounded (3-wire)


• Operating Temperature Range: -40°C to +75°C continuous operation


• Standards Compliance: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant
