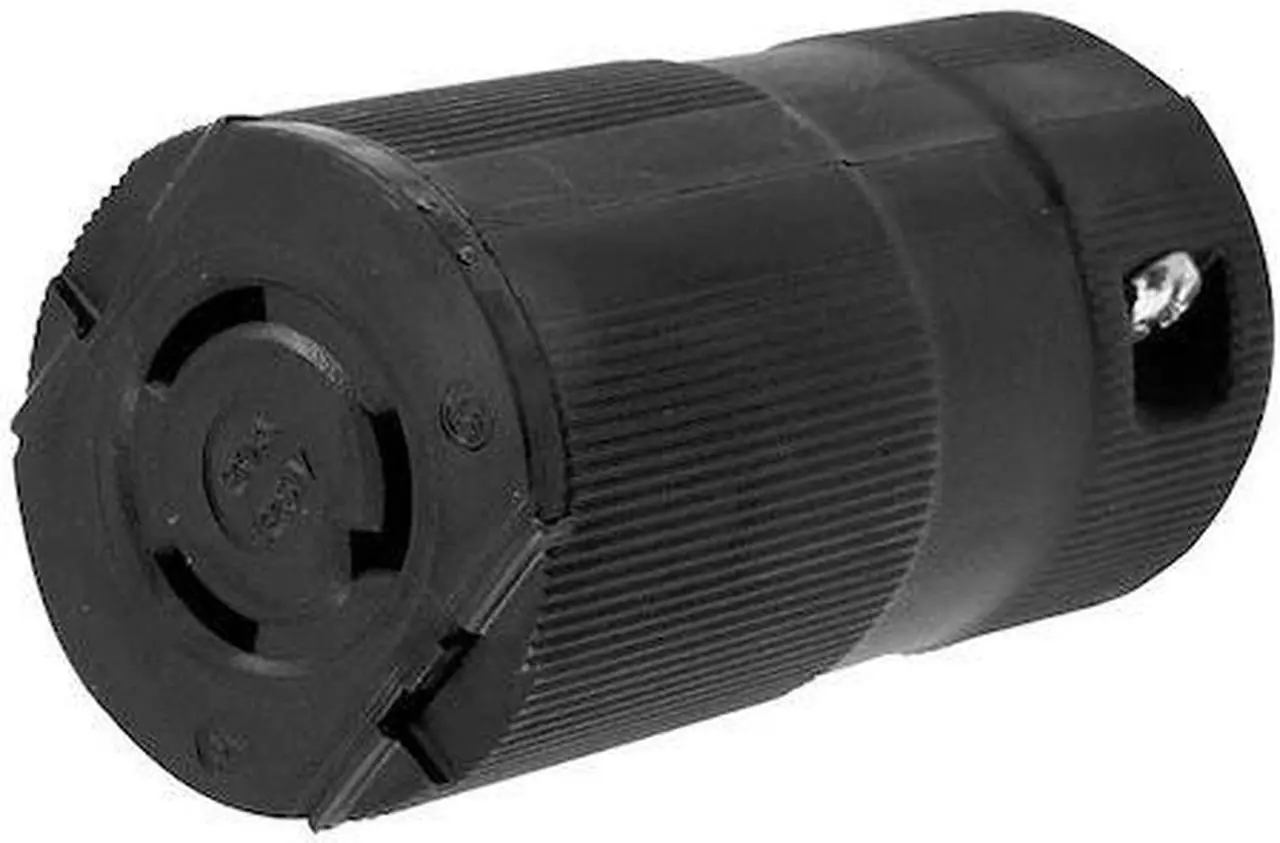

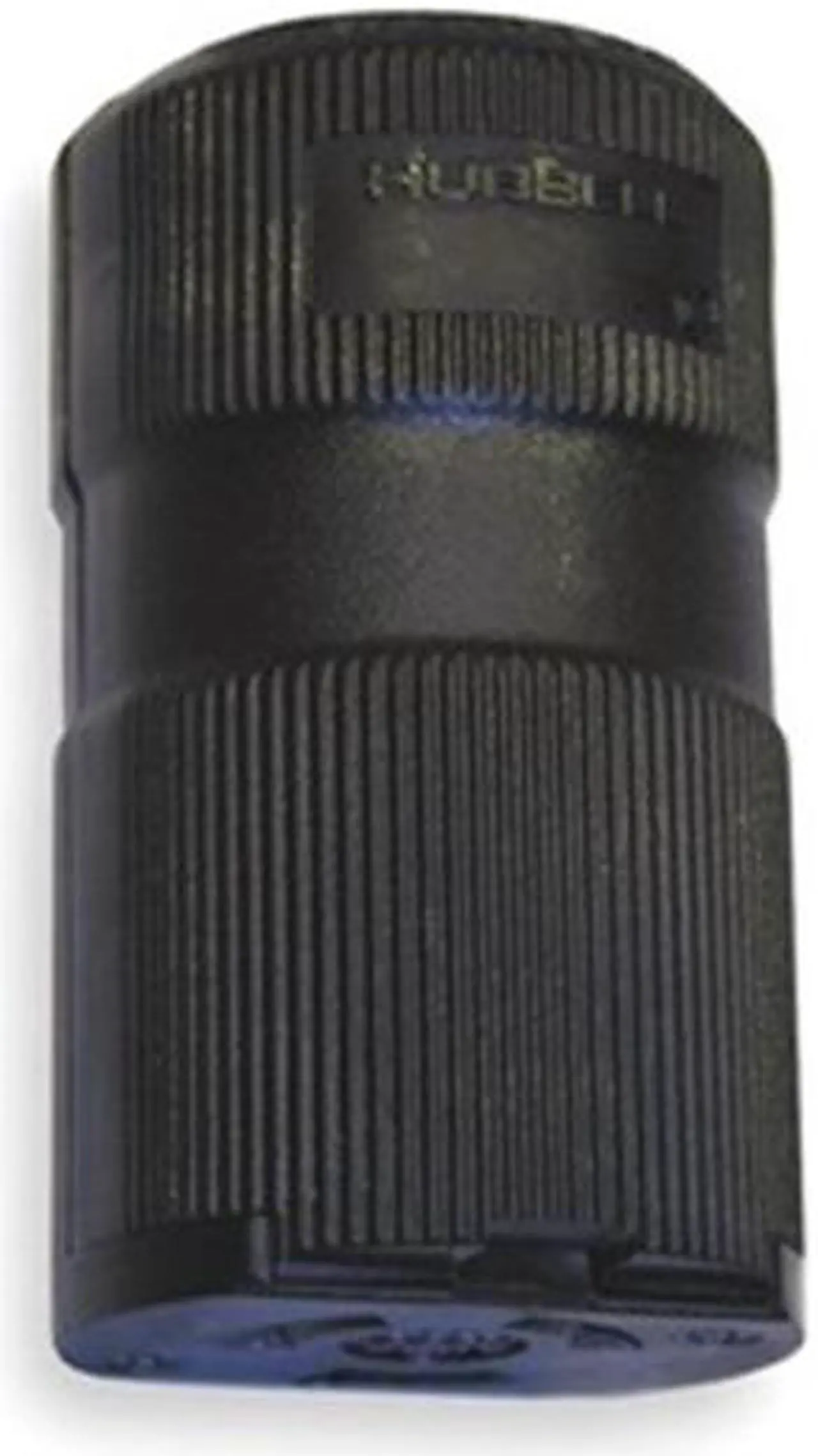

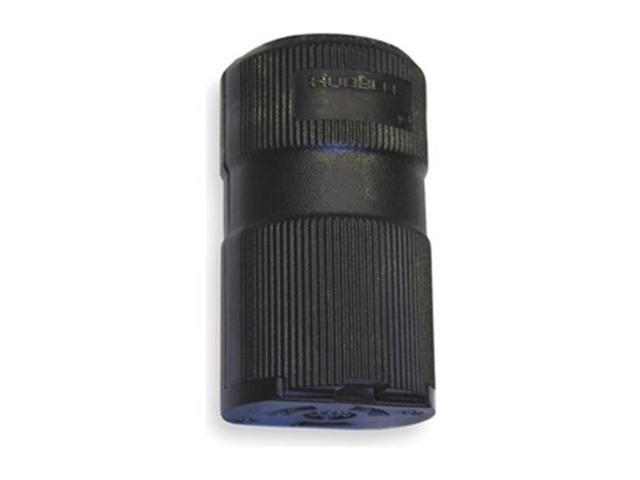

HUBBELL WIRING DEVICE-KELLEMS HBL2313VBK Locking Connector, L5-20R, 20 A, 125V

  • The brand for this item is HUBBELL WIRING DEVICE-KELLEMS
  • Orders $75 or more ship free
  • This item ships directly from Zoro
+
+
Overview
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

The HUBBELL 20A Midget Locking Connector (L5-20R) is an industrial locking connector intended for electrical connections in indoor, dry locations. It features a nylon body that is impact and crush resistant, with clamp-type terminals designed to bundle conductor strands when tightened to provide reliable contact. The device accommodates stranded copper wire sizes from #14 AWG to #8 AWG and supports cable diameters between 0.325" and 0.720".



Key Features of the HUBBELL 20A Midget Locking Connector:


  • Amperage/Voltage Rating: Rated for 20 A at 125V AC, single phase.

  • NEMA Configuration: L5-20R, grounded with two poles and three wires.

  • Body Material: Nylon housing

  • Cable Range: Accepts cables with outside diameters from 0.325" to 0.720".

  • Contact Material: Brass contacts for electrical conductivity.

  • Wire Connection Type: Screw terminals accommodate #14 AWG#8 AWG stranded copper wire only.

  • Insulation: Thermoplastic insulated body enhances protection against accidental contact.

  • Cord Grip: intended to help maintain wire position at the terminal

  • Temperature Rating: Operates continuously up to 75°C; minimum -40°C without impact (-25°C with impact).

  • Flame Resistance & Standards Compliance: Meets UL 94 HB flammability rating; certified under CSA C22.2 No.42, Fed.Spec W-C-596, UL 498 standards.

  • IP Rating: IP20 suitable for indoor use in dry conditions unless additional protection is provided.
