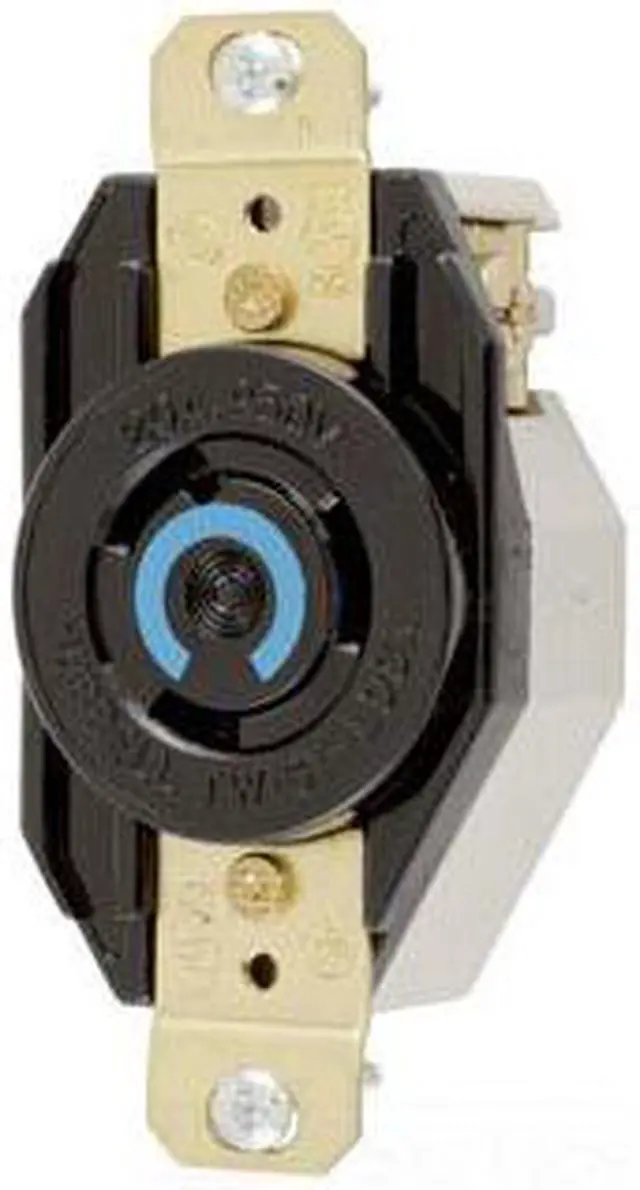

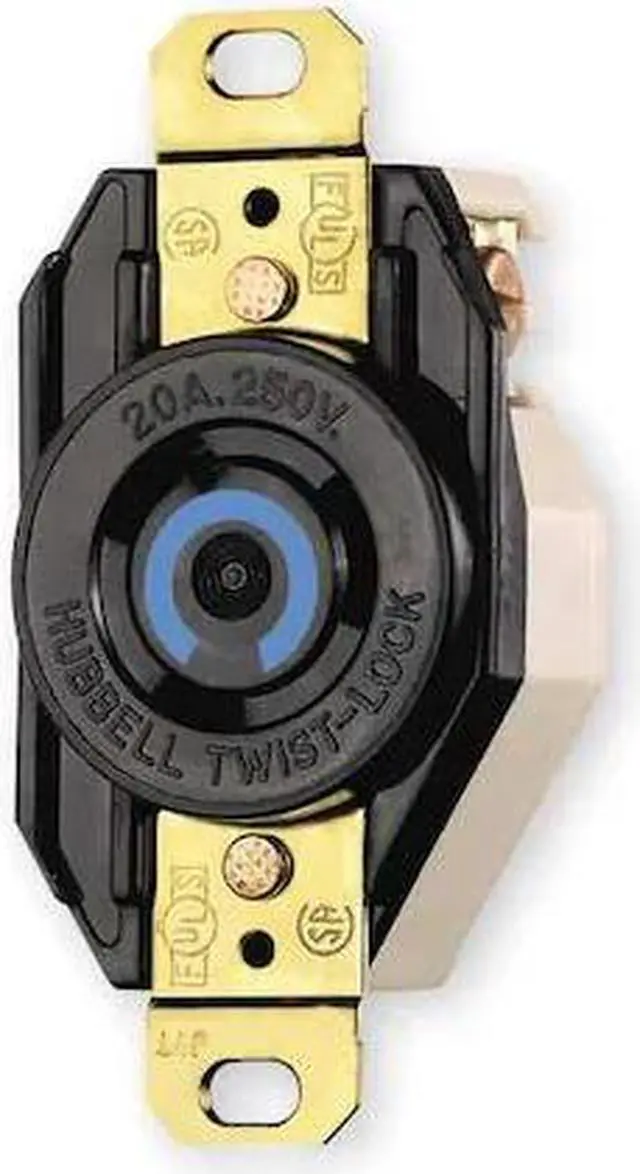

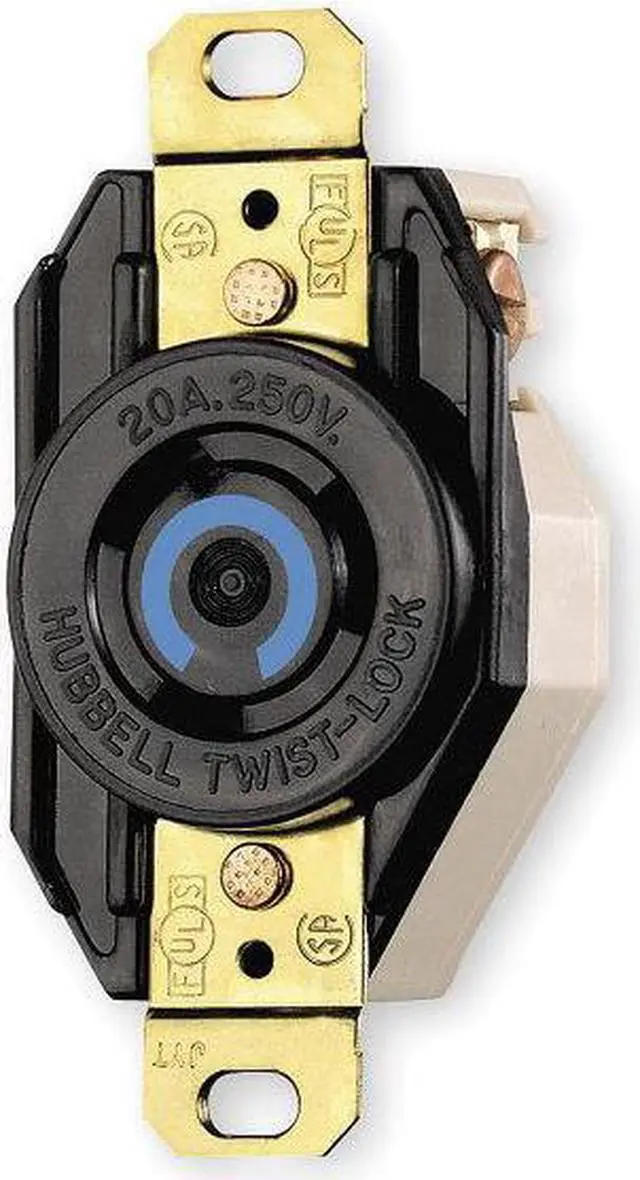

HUBBELL WIRING DEVICE-KELLEMS HBL2320 Locking Receptacle, L6-20R, 20 A, 250V

The HUBBELL 20A Twist-Lock Receptacle L6-20R is a locking receptacle suitable for use in industrial environments where locking electrical connections are specified. This flush-mount, single-gang device includes a twist-lock mechanism that secures the connection and accommodates 2-pole, 3-wire configurations at 250V AC. It is constructed with a nylon face and thermoplastic elastomer housing; intended for indoor dry locations.

Key Features of the HUBBELL 20A Twist-Lock Receptacle L6-20R:

• Amperage/Voltage: Rated for 20 A at 250V AC


• NEMA Configuration: L6-20R (2-pole, 3-wire)


• Material Construction: Nylon face; thermoplastic elastomer housing


• Contact/Spring Material: Brass contacts and springs


• Wire Accommodation: Accepts #16 AWG #8 AWG solid or stranded copper wire via screw terminals


• Mounting Type: Flush mount with included screw mounting hardware


• Operating Temperature Range: -40°C to +75°C (without impact)


• Flammability Rating: UL94 V-2 or better per CSA standards


• Dielectric Strength: Rated to withstand minimum of 2,000V; listed as current interrupting at full rated current
