Connector Body, 20 A, L6-20
- 2.500 Insulgrip Twist Lock
- Black/White
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

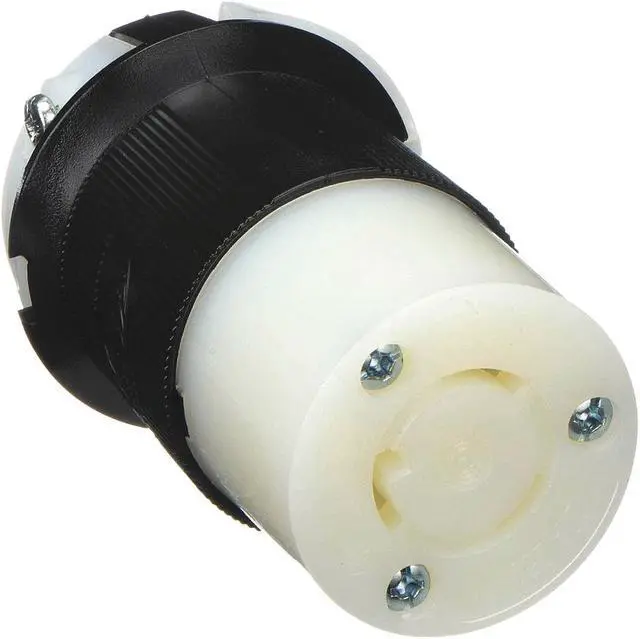

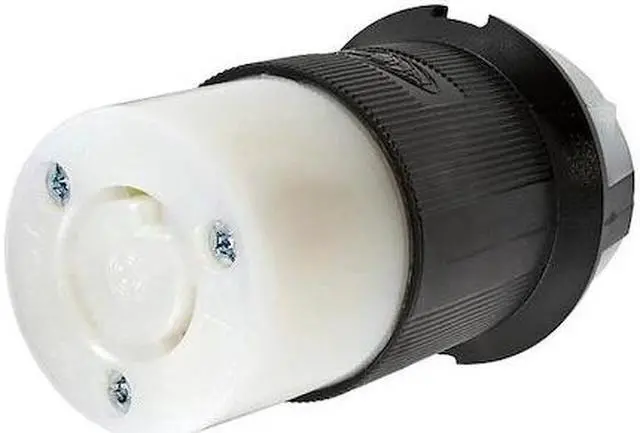

The HUBBELL 20A Twist-Lock Connector (L6-20R) is a locking connector intended for use in industrial and commercial electrical settings. It features a ribbed nylon housing.
Key Features of the HUBBELL 20A Twist-Lock Connector:
- Current/Voltage Rating: Rated for 20 A at 250V AC, single phase
- NEMA Configuration: L6-20R with grounded design
- Wire Accommodation: Accepts wire sizes from 16 AWG to 8 AWG using screw terminals
- Material Construction: Nylon body and housing; brass contacts provide durability
- Cord Grip Design: Includes a cord grip design
- Operating Temperature Range: -40°C to +75°C maximum operating temperature
- Flame Resistance: Meets UL 94 HB or better flammability rating standards
- Standards Compliance: CSA Certified C22.2 No.42; Federal Specification W-C-596; UL 498 listed
- Ingress Protection: IP20 rated for dry locations only
