HUBBELL WIRING DEVICE-KELLEMS HBL2331 Locking Plug, L7-20P, 20 A, 277V AC,

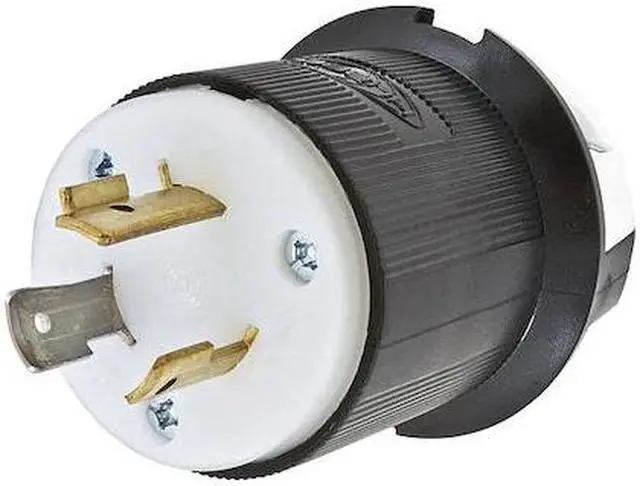

The HUBBELL 20A Twist-Lock Plug (L7-20P) is a locking plug designed for use in industrial environments, rated for 20 amps and 277V AC. It features a two-pole, three-wire configuration with a straight connection orientation and screw terminal wire connections. The plug includes a cord grip designed to reduce strain on terminations, as well as includes a dust shield intended to limit entry of contaminants into the wiring chamber.

Key Features of the HUBBELL 20A Twist-Lock Plug L7-20P:

• Amperage/Voltage Rating: Rated for 20 A and 277V AC single-phase operation


• NEMA Configuration: L7-20P (2 pole, 3 wire)


• Cord Range: Accepts cable diameters from 0.360" to 0.930"


• Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire


• Material Construction: Nylon housing with brass blades; constructed with materials rated for resistance to certain chemicals and impacts per manufacturer specifications


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• Ingress Protection: IP20 rating; suitable for indoor dry locations unless protected by additional means


• Standards Compliance: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596


• Additional Features: Clear funnel-shaped wire entry for ease of termination; non-shrouded design; grounded configuration; flammability rating HB or better per UL94/CSA standards
