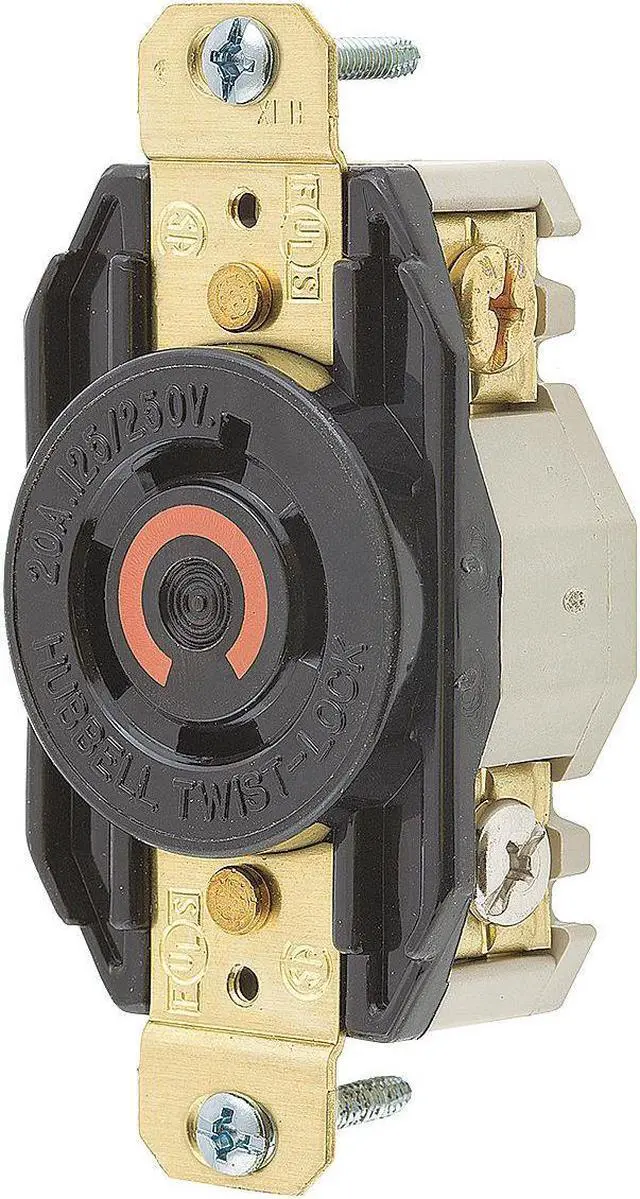

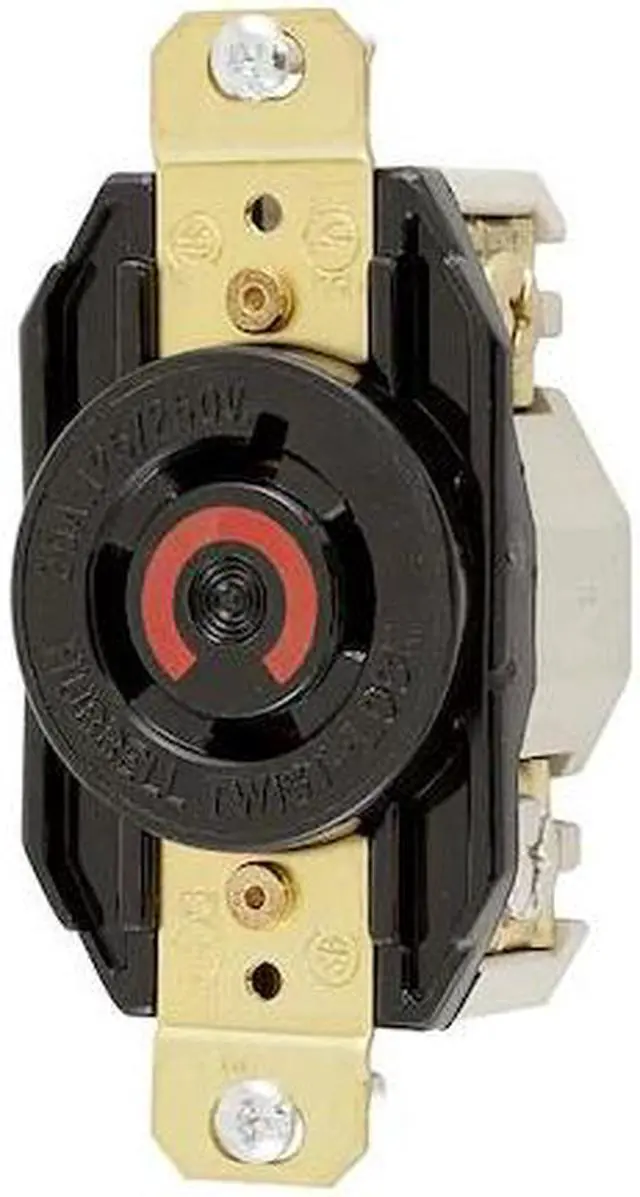

HUBBELL WIRING DEVICE-KELLEMS HBL2410 Locking Receptacle, L14-20R, 20 A,

The HUBBELL 20A Twist-Lock Receptacle (L14-20R) is an industrial locking receptacle that is intended for use in indoor dry locations. It features a twist-lock mechanism that helps reduce the likelihood of accidental disconnection and accommodates 3 poles and 4 wires, rated for 125/250V AC at 20 amps. The device supports both back and side wiring with wire restraint recesses, while face color coding aids in matching devices by voltage.

Key Features of the HUBBELL - 20A Twist-Lock Receptacle L14-20R:

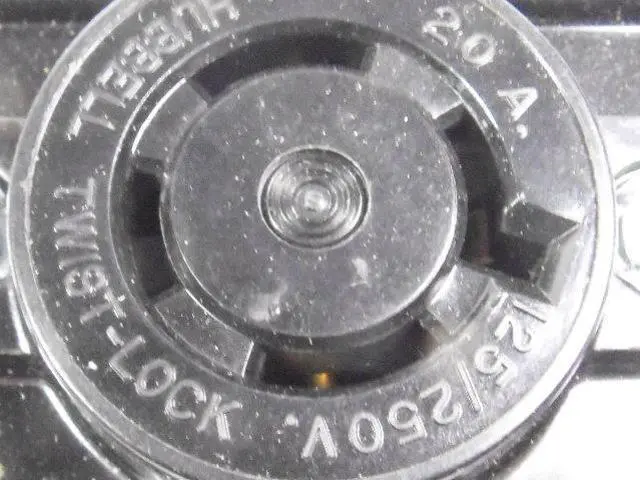

• Amperage/Voltage: Rated for 20 A, 125/250V AC single-phase operation


• NEMA Configuration: L14-20R, polarized and grounded design


• Wiring: Accepts #16 AWG to #8 AWG solid or stranded copper wire; screw terminals identified per UL 498

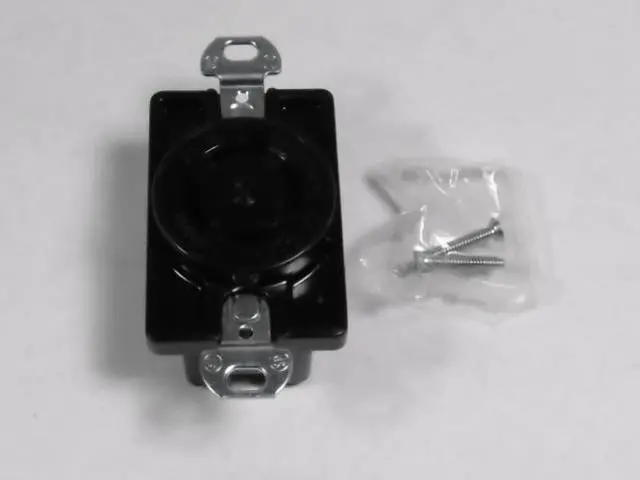

• Mounting Type: Flush mount with included mounting hardware; standard size product


• Material Construction: Nylon polyester base, thermoplastic elastomer housing, all-brass mounting and grounding system


• Operating Temperature Range: Maximum continuous 75°C (167°F), minimum -40°C without impact


• Dielectric Strength & Flammability: Withstands minimum of 2,000V; flammability rating V-2 per UL94/CSA standards


• IP Rating/NEMA Enclosure: IP20 suitability; NEMA Type 1 enclosure ratingintended for indoor use only unless further protected


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL 498
