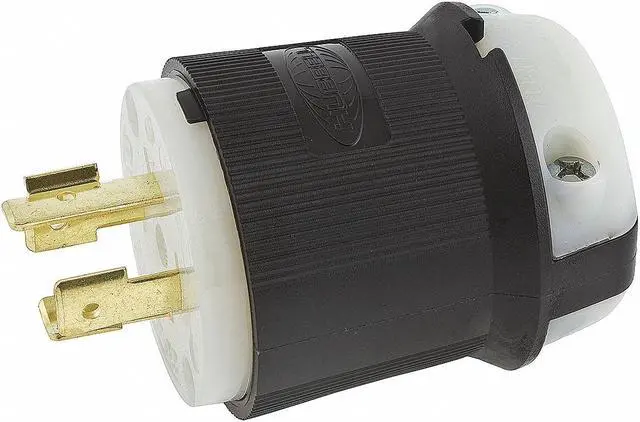

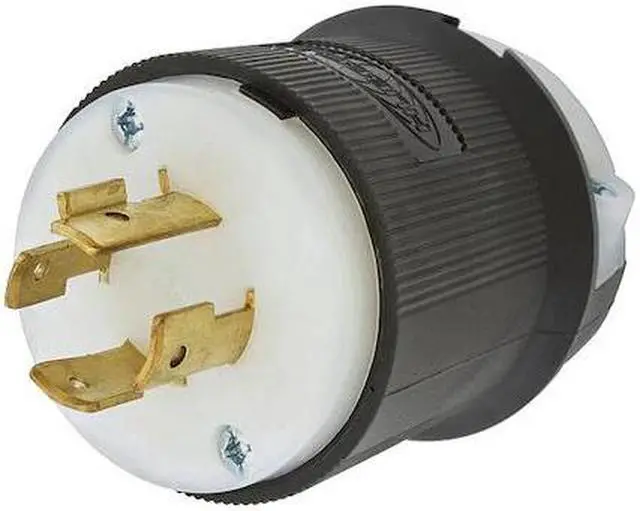

HUBBELL WIRING DEVICE-KELLEMS HBL2421 Locking Plug, L15-20P, 20 A, 250V AC,

The HUBBELL 20A Twist-Lock Plug (L15-20P) is a locking plug rated for use in industrial applications where a secure electrical connection is required. This three-pole, four-wire device is rated for 250V AC and supports up to 20 amps of current. It features a cord grip designed to reduce strain on terminations, along with a clear, funnel-shaped wire entry.

Key Features of the HUBBELL 20A Twist-Lock Plug L15-20P:

• Amperage/Voltage: Rated for 20 A at 250V AC


• NEMA Configuration: L15-20P; three poles, four wires


• Cord Range: Accepts cable diameters from 0.350 in to 1.150 in (#16 AWG to #8 AWG stranded copper wire)


• Material Properties: nylon housing; brass blades; chemical and impact resistant


• Wire Connection Type: Screw terminals with standard wiring style


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596


• Ingress Protection/Flammability Rating: IP20 suitability; HB or better per UL94 flammability rating
