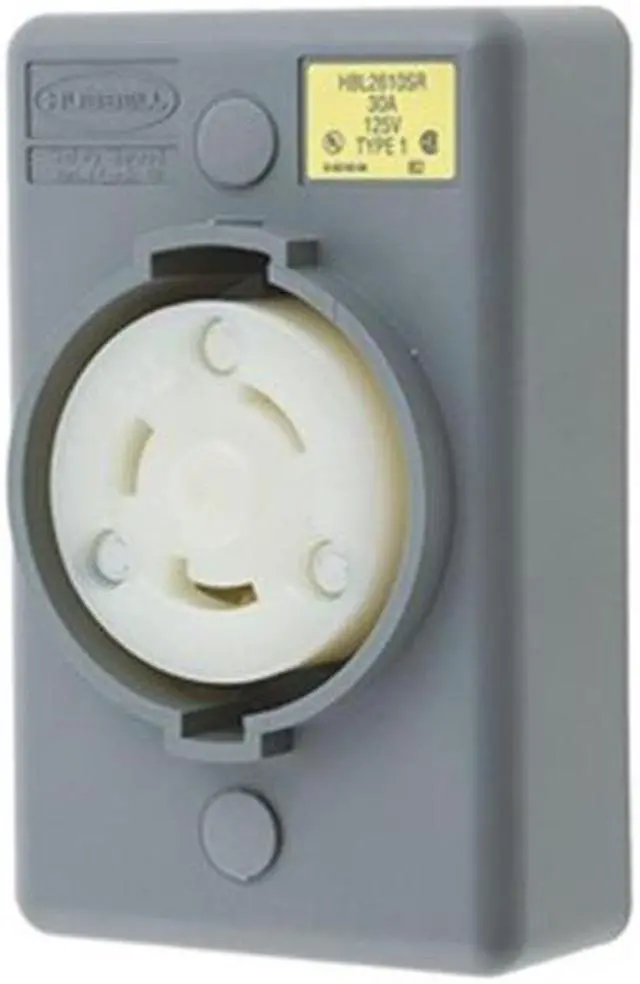

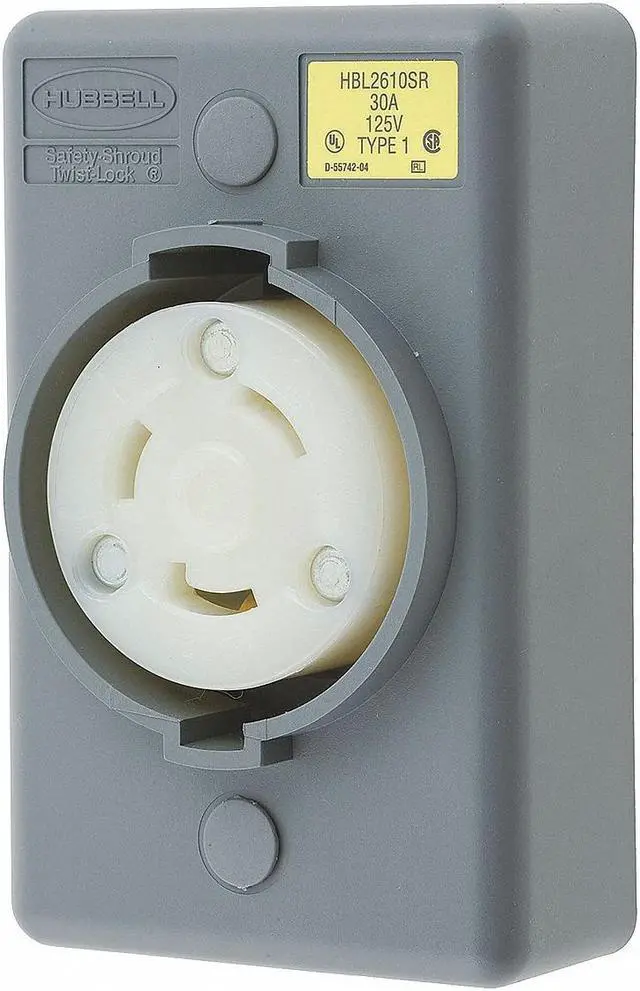

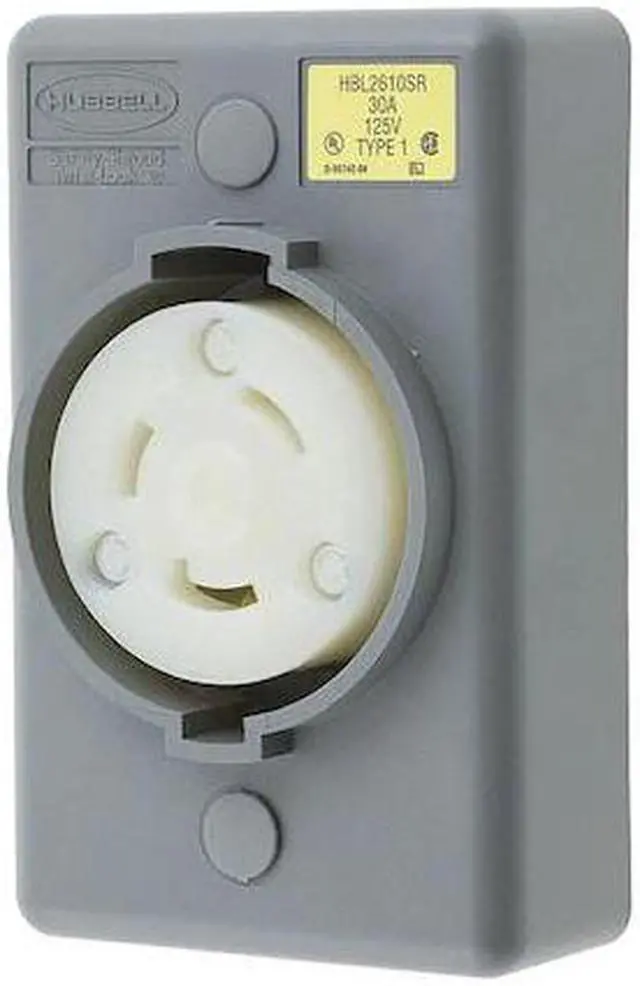

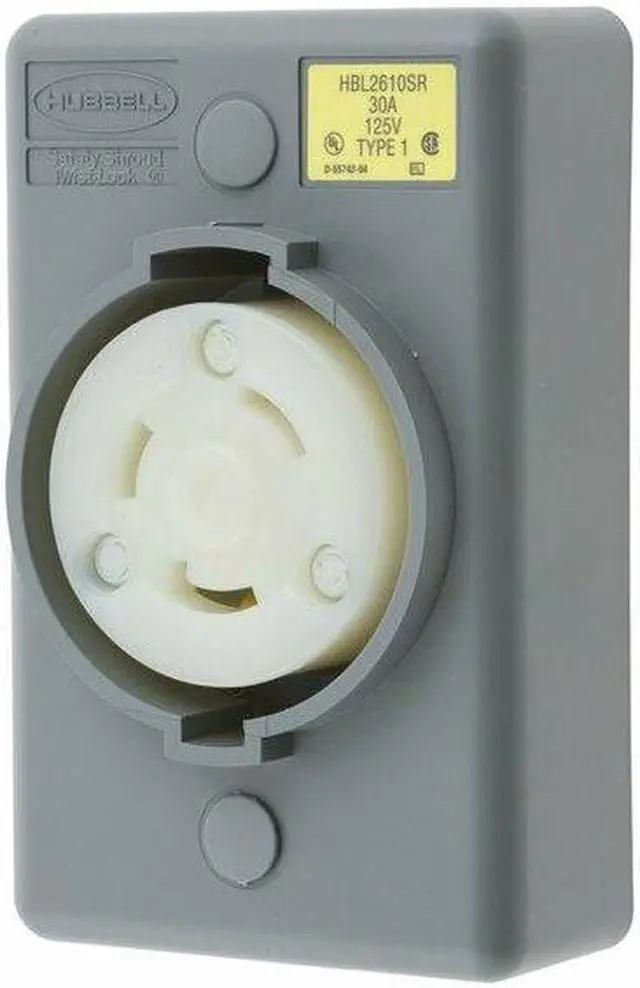

Hubbell Wiring Device-Kellems Locking Receptacle,Industrial,30,Gray HBL2610SR

The HUBBELL 30A Twist-Lock Receptacle L5-30R is a locking receptacle designed to provide locking electrical connections in indoor, dry locations. It features a twist-lock mechanism with alignment arrows and lock/unlock symbols for visual indicators for alignment and lock/unlock status. The device supports 2-pole, 3-wire configurations at 125V AC and is rated for up to 30 amps.

Key Features of the HUBBELL 30A Twist-Lock Receptacle L5-30R:

• NEMA Configuration: L5-30R; single phase, grounded


• Current/Voltage Rating: Rated for 30 A at 125V AC


• Material Construction: Engineered thermoplastic (Valox) housing and flange; impact modified PBT body; constructed with materials specified as corrosion- and impact-resistant by the manufacturer


• Connection Orientation: Straight with screw terminal wire connections


• Wire Size Compatibility: Accepts wire sizes from #16 AWG to #8 AWG (#10 AWG standard)


• Mounting Type: Surface mount design; non-flanged


• Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)


• Horsepower Rating: Rated for use with equipment drawing up to 2 horsepower, per manufacturer specifications


• Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed


• Coding & Identification: Catalog number and color-coded voltage rating visible during use; terminals identified per UL498 (X, Y, Z, White, Green)
