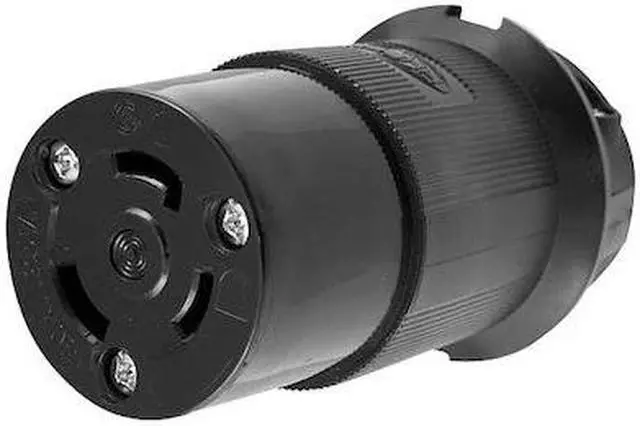

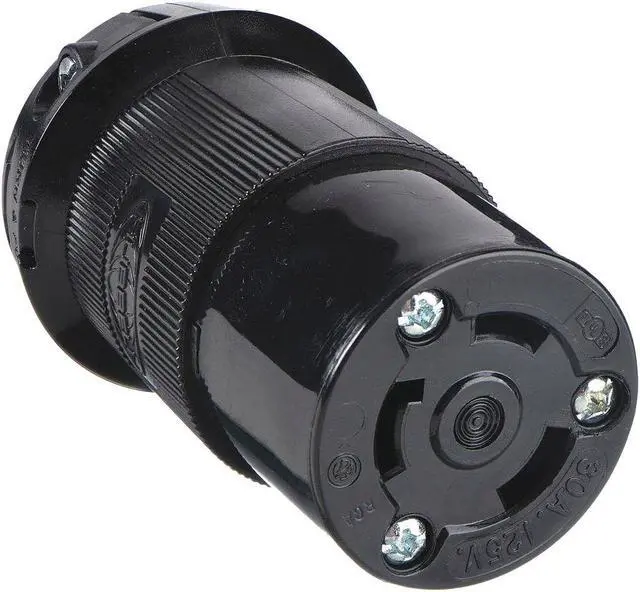

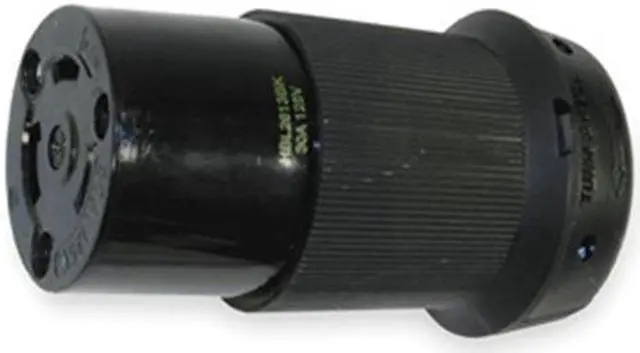

HUBBELL WIRING DEVICE-KELLEMS HBL2613BK Locking Connector, L5-30R, 30 A, 125V

The HUBBELL 30A Locking Connector L5-30R is an industrial locking connector intended for electrical connections in indoor, dry environments. It features a two-pole, three-wire configuration and is rated for 30 amps at 125V AC. The connector includes a cord grip design helps reduce strain on terminations, as well as a clear, funnel-shaped wire entry to facilitate wiring. An integral dust shield includes a dust shield helps prevent contaminants from entering the wiring chamber.

Key Features of the HUBBELL 30A Locking Connector L5-30R:

• Amperage/Voltage Rating: Rated for 30 A and 125V AC with single-phase operation


• NEMA Configuration: L5-30R locking receptacle


• Cable Range: Accepts cable diameters from 0.360" to 0.930"


• Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire


• Body Material: Constructed of natural white nylon housing with brass contacts; constructed of natural white nylon housing with brass contacts


• Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use


• Screw Terminals: Standard screw terminal connections identified per UL 498 requirements


• Flammability & Safety Standards: Meets HB or better flammability rating per UL94; certified to CSA C22.2 No.42, Fed.Spec W-C-596, and listed to UL498 standards


• Ingress Protection: IP20 rated for indoor use only unless additional protection is provided
