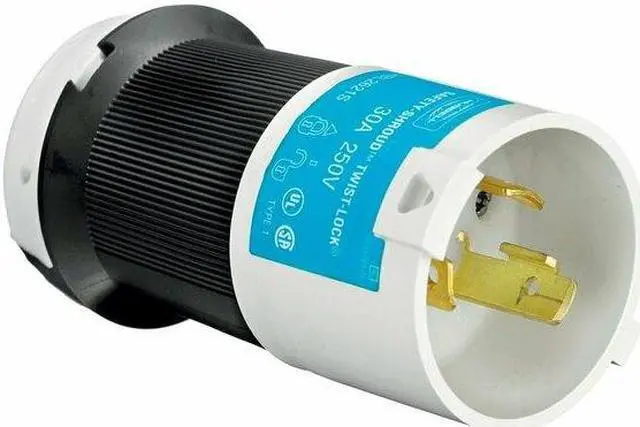

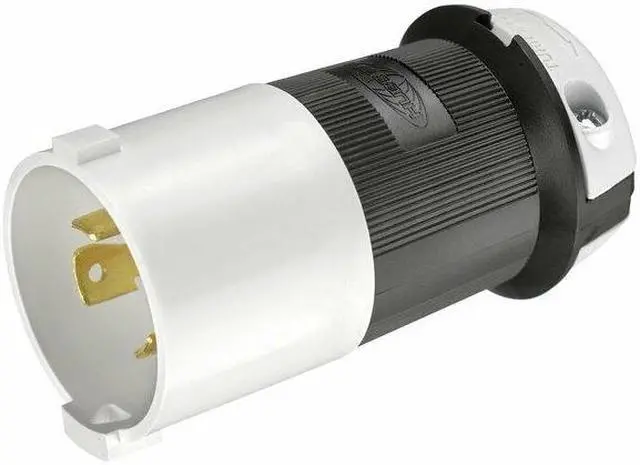

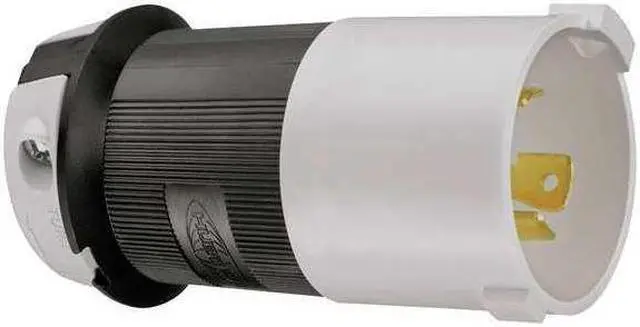

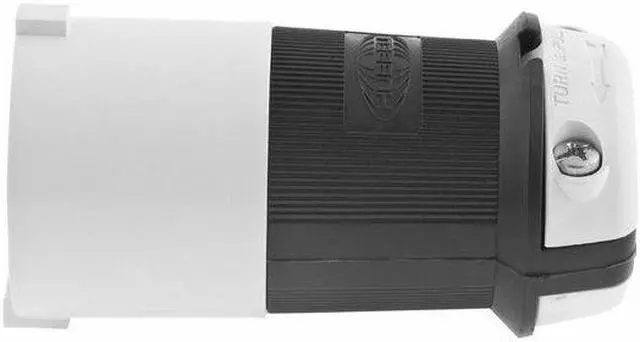

HUBBELL WIRING DEVICE-KELLEMS HBL2621S Locking Plug, L6-30P, 30 A, 250V AC,

The HUBBELL 30A Twist-Lock Plug L6-30P is an industrial-grade locking plug intended for use with electrical connections in indoor, dry locations. It features a ribbed nylon housing.

Key Features of the HUBBELL 30A Twist-Lock Plug L6-30P:

• NEMA Configuration: L6-30P, rated for 250V AC single-phase applications at up to 30 amps.


• Wire Accommodation: Accepts wire sizes from 16 AWG to 8 AWG with screw terminal connections; suitable for cable diameters between 0.36 in and 0.93 in.


• Material Construction: Housing made of nylon housing as specified by manufacturer; blades constructed from brass.


• Temperature Range: Operates continuously between -40°C and +75°C (without impact).


• Flammability Rating: Meets UL 94 HB or better standards.


• Cord Grip & Dust Shield: Cord grip is intended to limit strain on terminations; dust shield included.


• Shrouded Design & Polarization: Shrouded body with polarized configuration enhances connection security; grounded construction included.


• Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listed.
