HUBBELL WIRING DEVICE-KELLEMS HBL2621SW Watertight Locking Plug, L6-30P, 30 A,
- The brand for this item is HUBBELL WIRING DEVICE-KELLEMS
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

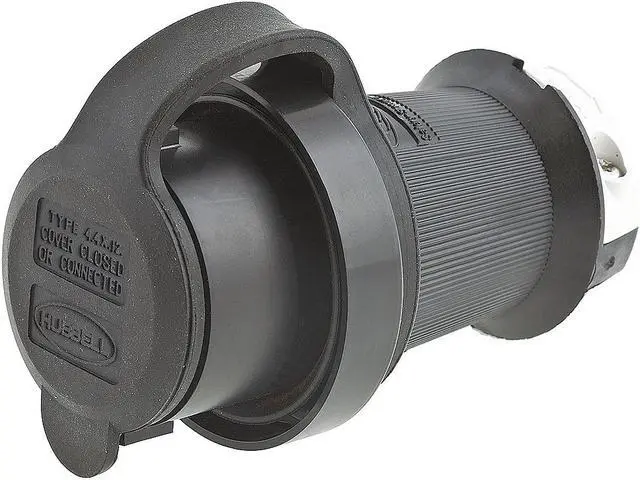

The HUBBELL 30A Watertight Twist-Lock Plug (L6-30P) is a shrouded, industrial-grade locking plug intended for use in industrial environments. It features a watertight construction with an impact-resistant shroud.
Key Features of the HUBBELL 30A Watertight Locking Plug:
- NEMA Configuration: L6-30P; rated for 250V AC single-phase at 30 amps
- Poles/Wires: 2-pole, 3-wire configuration with grounded design
- Cord Size Compatibility: Accepts cable diameters from 0.360 in to 0.930 in; wire size range from 16 AWG to 8 AWG
- Material Construction: Housing made of impact-modified polybutylene terephthalate (PBT); brass blade and contact materials; clear polycarbonate retainer; stainless steel screws
- Resistance Properties: Rated IP66; chemical- and impact-resistant materials
- Flammability Rating: UL94 V-0 housing material
- Operating Temperature Range: -40°C to +75°C maximum operating temperature
- Cable Strain Relief: Cord grip is designed to provide strain relief; rated IP66 for moisture and dust ingress protection.
- Standards Compliance: CSA Certified Type 4 and UL Listed for industrial applications
