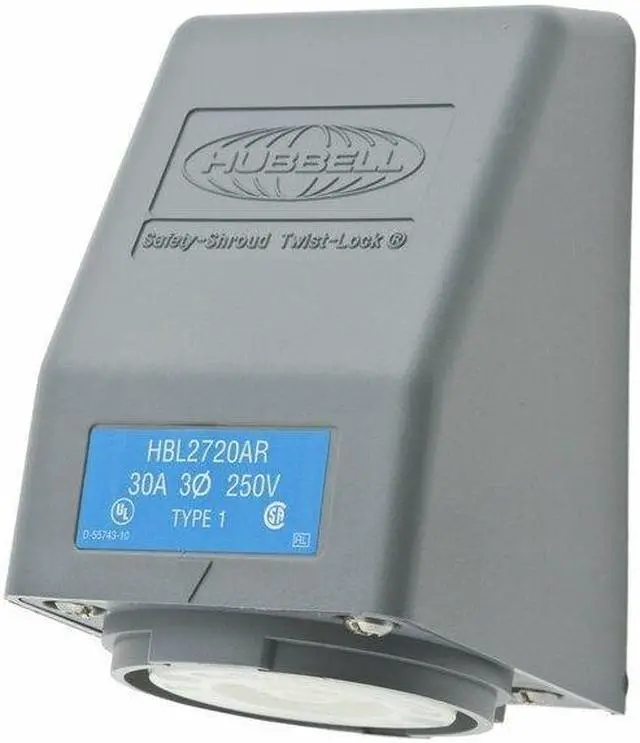

HUBBELL WIRING DEVICE-KELLEMS HBL2720AR Flanged Locking Receptacle, L15-30R, 30
- The brand for this item is HUBBELL WIRING DEVICE-KELLEMS
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The HUBBELL 30A Angle Twist-Lock Receptacle L15-30R is a flanged locking receptacle rated for use in dry, indoor locations. It features a three-pole, four-wire configuration rated for 250V AC and 30 amps, with a twist-lock mechanism.
Key Features of the HUBBELL 30A Angle Twist-Lock Receptacle L15-30R:
- NEMA Configuration: L15-30R; three-phase, grounded
- Contact Material: Brass contacts
- Housing & Flange Material: Valox housing with specified resistance properties and gray Valox 357U rectangular flange
- Mounting Type: Flush mount design suitable for single-gang installations
- Wire Size Compatibility: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
- Operating Temperature Range: -40°F to 167°F (maximum continuous temperature rise up to 75°C)
- Special Feature: Includes cover; shrouded construction enhances protection during use
- Standards Compliance: CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 listed
- Resistance Properties: Materials are corrosion resistant and impact resistant
