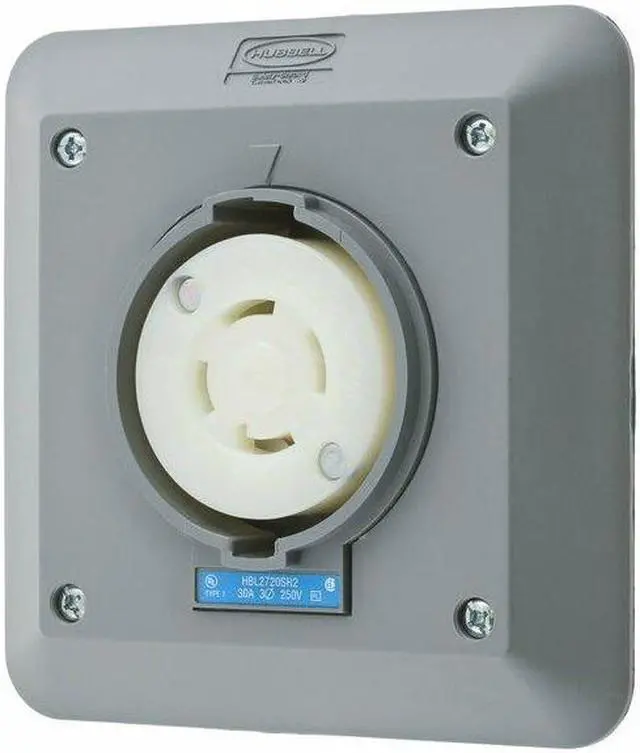

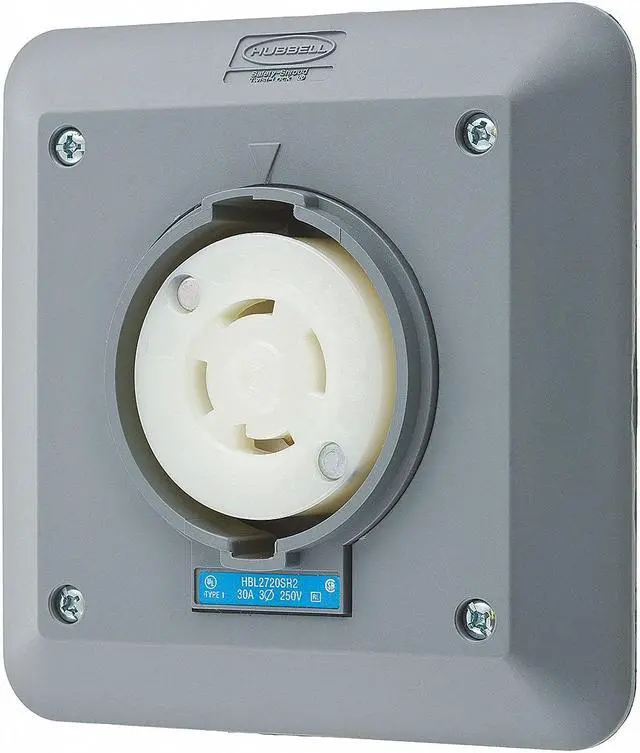

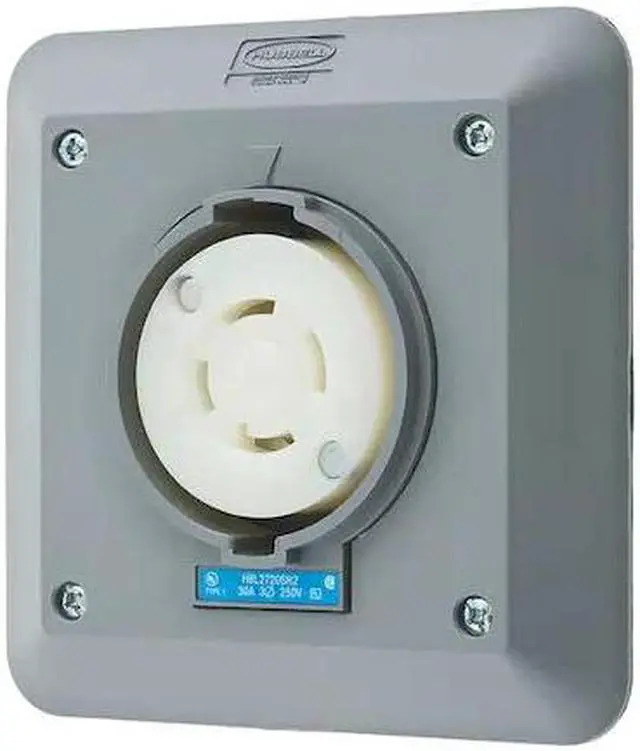

HUBBELL WIRING DEVICE-KELLEMS HBL2720SR2 Locking Receptacle, L15-30R, 30 A,

The HUBBELL 30A Locking Receptacle L15-30R is a three-pole, four-wire device rated for 250V AC and suitable for industrial applications. This twist-lock receptacle features alignment arrows with lock and unlock symbols to visually indicate proper connection, as well as visible catalog number and voltage rating even when in use. The housing is constructed from impact-modified PBT and Valox materials, providing resistance to corrosion and physical impacts.

Key Features of the HUBBELL 30A Locking Receptacle L15-30R:

• NEMA Configuration: L15-30R; three-pole, four-wire design


• Current/Voltage Rating: Rated for 30 A at 250V AC


• Housing Material: Valox housing with gray finish


• Mount Type: Flush mount; semi flush mounting style


• Wire Connection Type: Screw terminals accept wire sizes from 8 AWG to 16 AWG (#10 AWG standard)


• Operating Temperature Range: -40°F to 167°F (maximum continuous operation at up to 75°C)


• Resistance Properties: Construction rated as corrosion resistant and impact resistant; intended for dry indoor locations


• Lock Type: Twist-lock mechanism with visual alignment indicators


• Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listed
