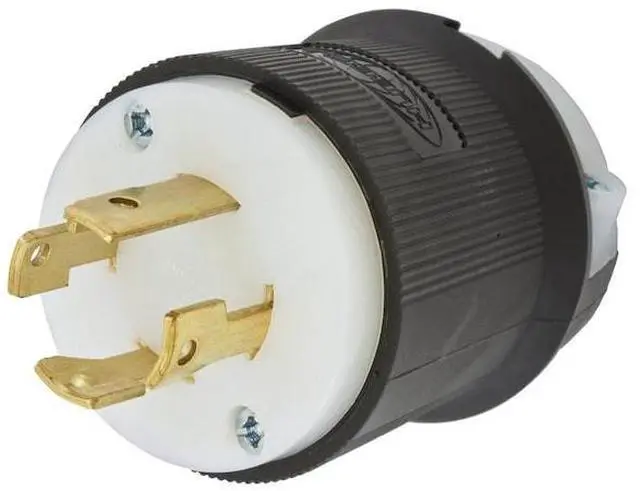

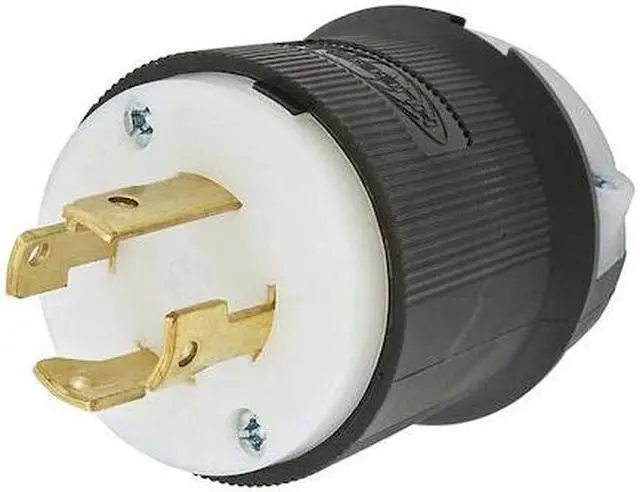

HUBBELL WIRING DEVICE-KELLEMS HBL2721 Locking Plug, L15-30P, 30 A, 250V AC,

The HUBBELL 30A Twist-Lock Plug (L15-30P) is a locking plug intended for use in industrial electrical connections where a locking mechanism is required. This three-phase, four-wire plug supports up to 30 amps at 250V AC and includes a polarized design with screw terminal wire connections. The housing is constructed from nylon housing.

Key Features of the HUBBELL 30A Twist-Lock Plug L15-30P:

• NEMA Configuration: L15-30P, three-pole, four-wire grounded


• Cord Size Compatibility: Accepts cable diameters from 0.35 in to 1.15 in; maximum wire size of 8 AWG and minimum of 16 AWG


• Material Construction: Nylon housing with brass blades for durability


• Operating Temperature Range: -40°C to +75°C


• Flammability Rating: UL94 HB or better per CSA/UL standards


• Horsepower Rating: Maximum rating of 3 hp


• Chemical & Impact Resistance


• Standards Compliance: Meets CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 requirements
