HUBBELL WIRING DEVICE-KELLEMS HBL2733 Locking Connector, L16-30R, 30 A, 480V
- The brand for this item is HUBBELL WIRING DEVICE-KELLEMS
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

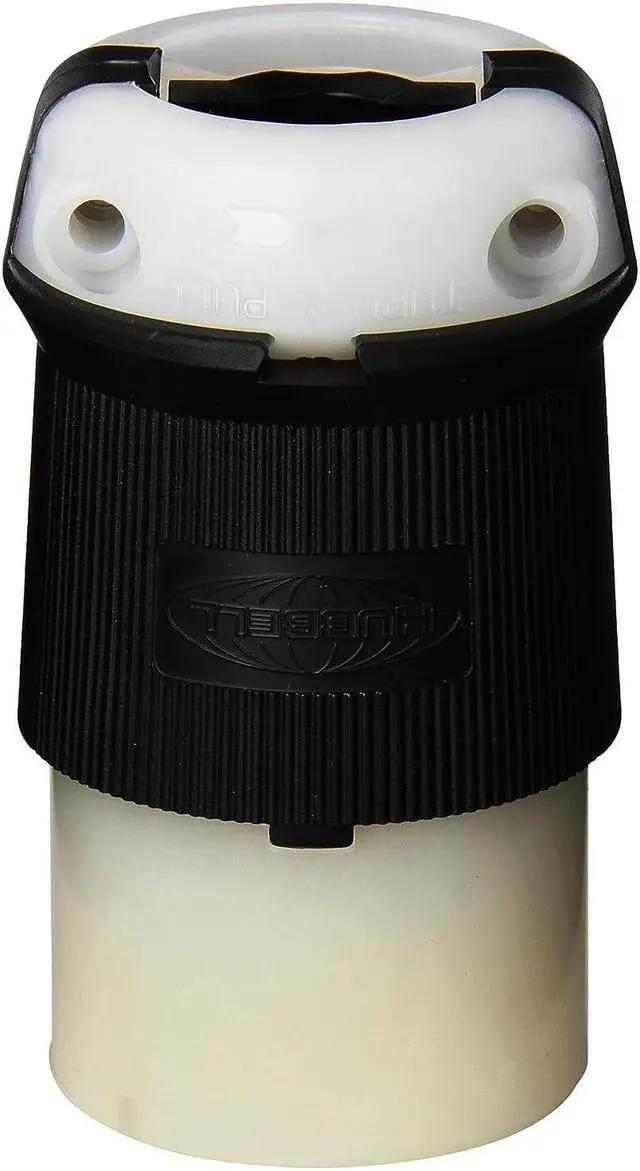

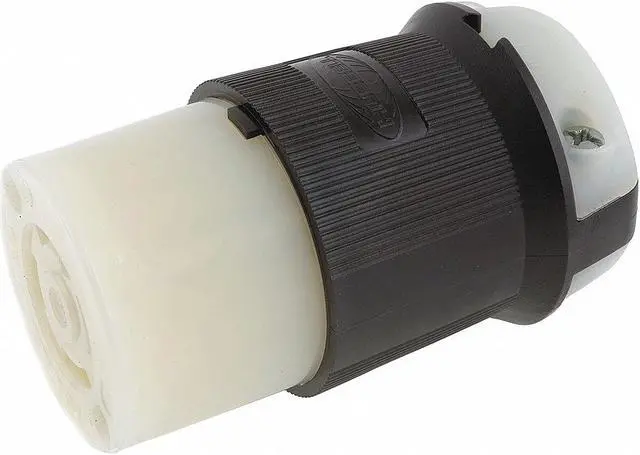

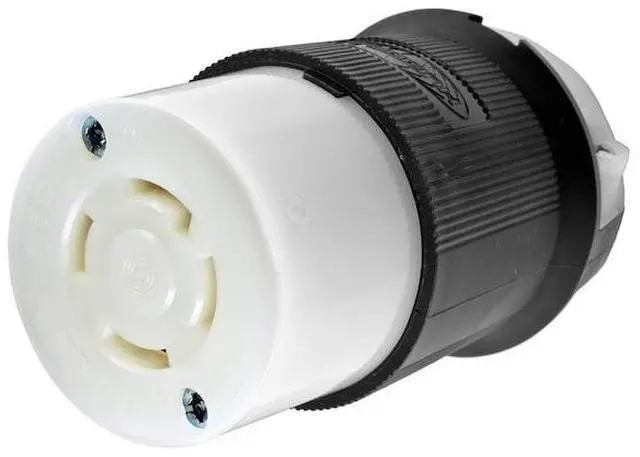

The HUBBELL 30A Twist-Lock Connector (L16-30R) is a locking connector intended for use in industrial and commercial electrical applications utilizing twist-lock connections. It features a ribbed nylon housing.
Key Features of the HUBBELL - 30A Twist-Lock Connector:
- Body/Housing Material: Nylon construction.
- Cord Size Compatibility: Accepts cords from 0.350 in to 1.150 in diameter.
- Contact Material: Brass contacts.
- Voltage/Current Rating: Rated for 480V AC and 30 amps; maximum horsepower rating: 10 hp.
- Wire Accommodation: Accommodates wire sizes from 16 AWG to 8 AWG with screw terminals.
- NEMA Configuration: L16-30R; three-pole, four-wire design with grounding feature.
- Operating Temperature Range: Operating temperature range: -40°C to +75°C max.
- Flame Resistance & Dielectric Strength: UL94 HB flammability rated; dielectric strength: minimum 2,000V.
- Ingress Protection & Location Suitability: IP20 rated; suitable for indoor use only in dry locations.
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 compliant connectors with terminals identified per UL498 requirements.
