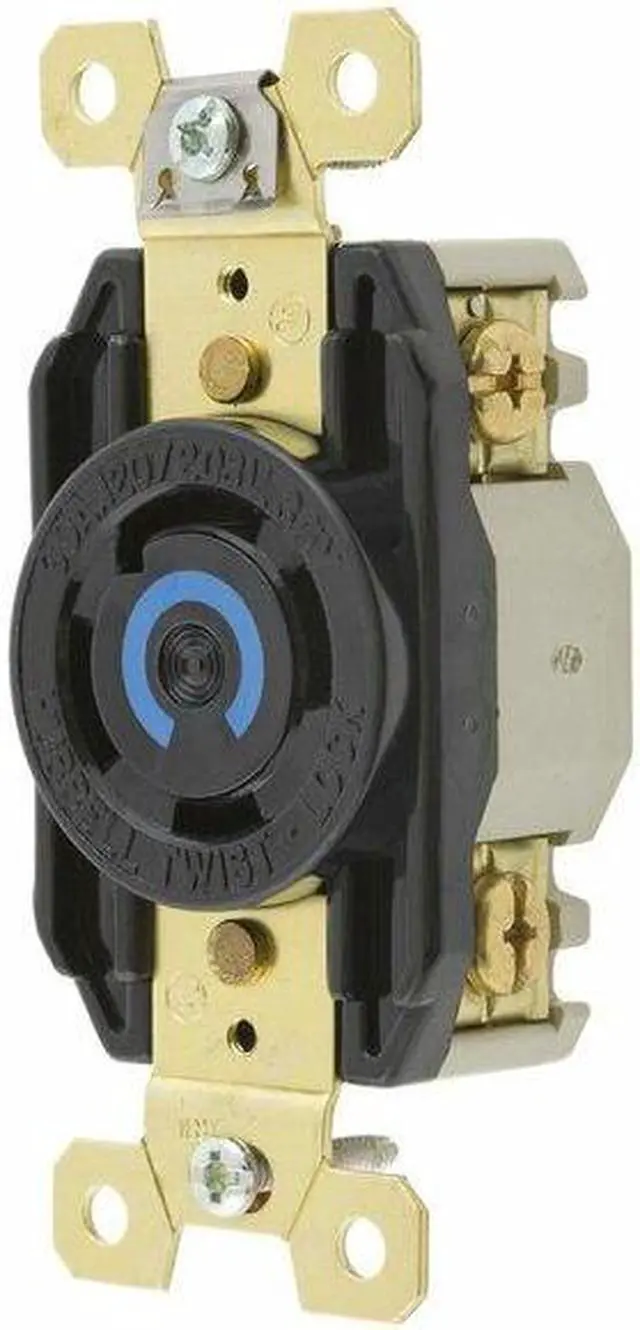

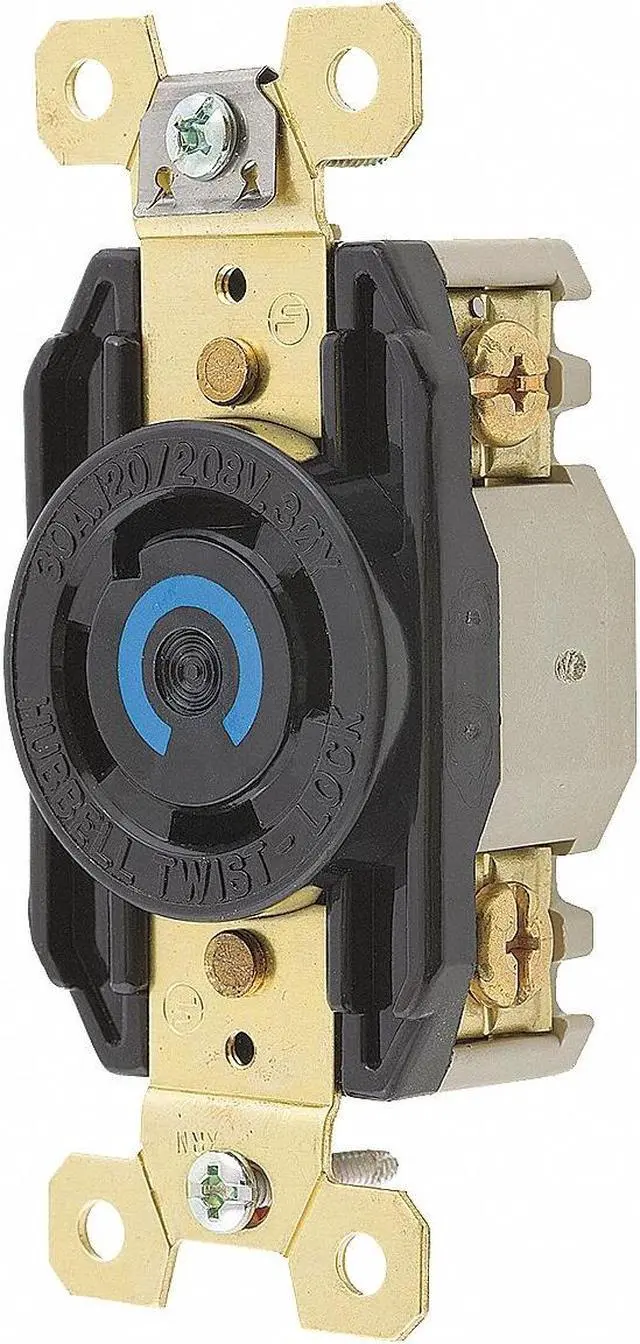

HUBBELL WIRING DEVICE-KELLEMS HBL2750 Locking Receptacle, L18-30R, 30 A,

The HUBBELL 30A Twist-Lock Receptacle L18-30R is a locking receptacle intended for use in industrial settings requiring locking receptacles. It features a twist-lock mechanism with a 4-pole, 4-wire configuration and is rated for three-phase 120/208V AC applications. The device has a flush mount design and includes mounting screws for installation in indoor, dry locations.

Key Features of the HUBBELL 30A Twist-Lock Receptacle L18-30R:

• Current and Voltage Rating: Rated for 30 amps at 120/208V AC, suitable for three-phase power distribution.


• NEMA Configuration: L18-30R with polarized design helps align proper connection orientation.


• Material Construction: Constructed with high-impact nylon face and thermoplastic housing; includes brass contacts.


• Wire Compatibility: Accepts wire sizes from #8 AWG to #16 AWG using screw terminals; supports both back and side wiring methods.


• Operating Temperature Range: Rated for operation between -40°F and 167°F (maximum continuous temperature of 75°C).


• Mounting Type: Flush mount with included hardware for installation using included hardware.


• NEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure, IP20 ratedintended for indoor use only.


• Standards Compliance: Meets UL 498, CSA C22.2 No.42, Federal Specification W-C-596 requirements.
