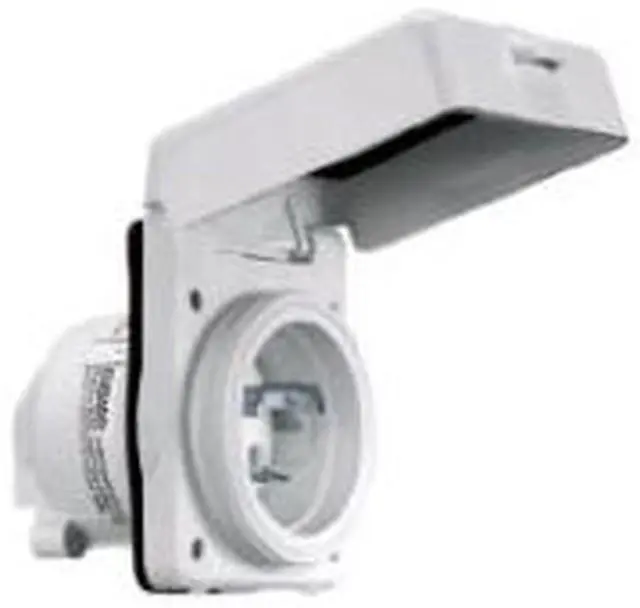

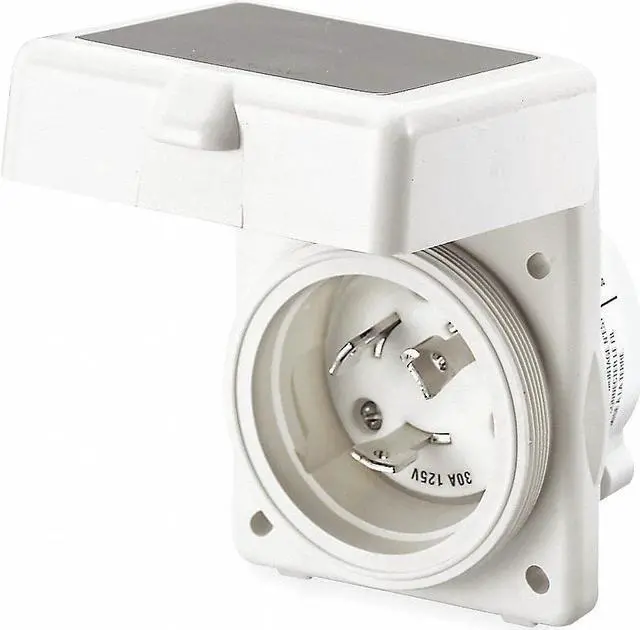

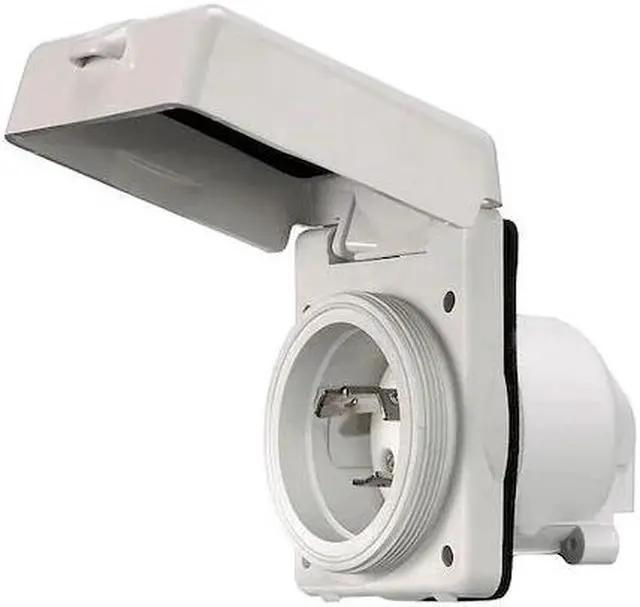

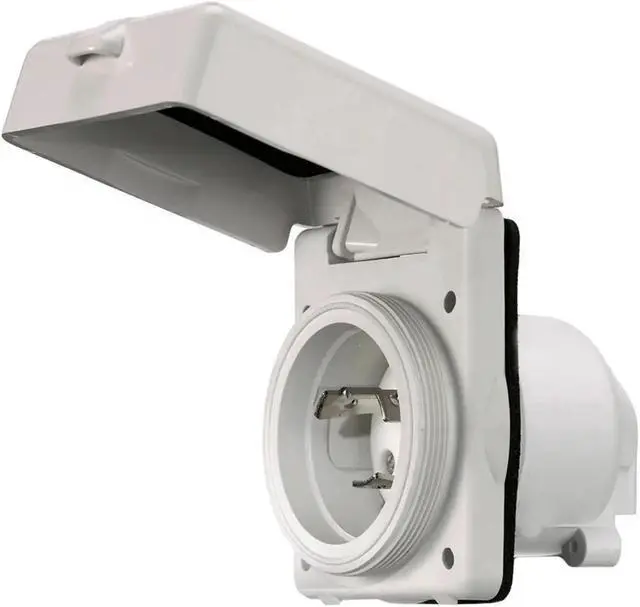

HUBBELL WIRING DEVICE-KELLEMS HBL303NM 30A Marine Flanged Locking Inlet 2P 3W

The HUBBELL 30A Marine Flanged Locking Inlet is a hull mount, single-phase inlet intended for use in marine wiring applications. It features a flanged design with a thermoplastic housing with IP56 rating and corrosion resistance, rated for use in specified environmental conditions. The inlet supports 30A at 125V AC and accommodates wire sizes from #12 AWG to #10 AWG using screw terminals.

Key Features of the HUBBELL 30A Marine Flanged Locking Inlet:

• Amperage/Voltage: Rated for 30 A, 125V AC single-phase power


• NEMA Configuration: L5-30P plug compatibility; L5-30R receptacle configuration


• Material Construction: Thermoplastic/composite housing with nickel-plated brass blades


• Environmental Resistance: IP56 ingress protection, corrosion resistance


• Rated operating temperature range: -40°C to +75°C


• Circuit Details: Two poles, three wires; includes grounding terminal


• Mounting Type: Flush mount with included screw mounting hardware


• Cover Feature: Self-closing cover


• Standards Compliance: UL Listed; meets industry standards for marine-grade devices
